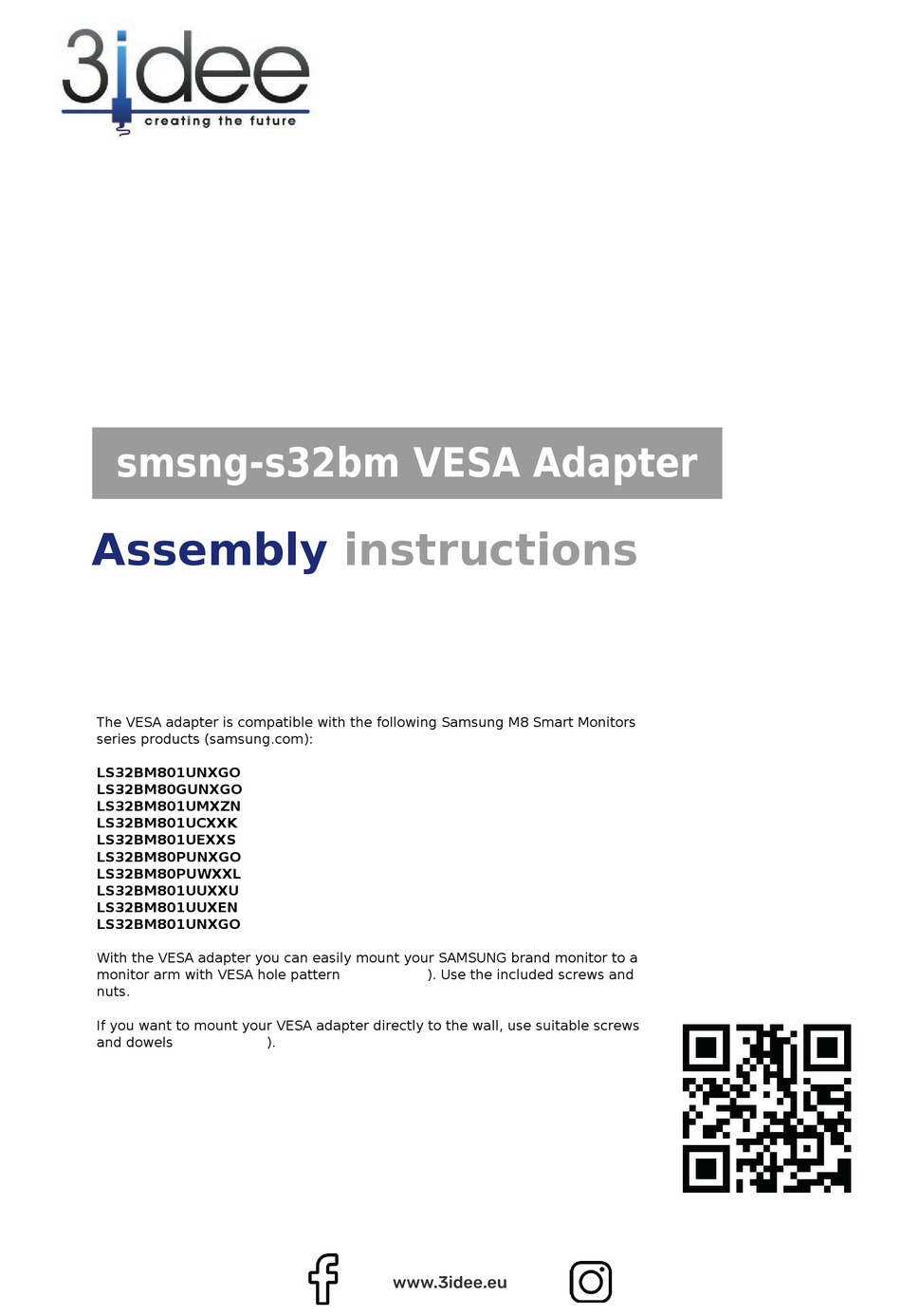

smsng-s32bm VESA Adapter

Assembly

instructions

The VESA adapter is compatible with the following Samsung M8 Smart Monitors

series products (samsung.com):

LS32BM801UNXGO

LS32BM80GUNXGO

LS32BM801UMXZN

LS32BM801UCXXK

LS32BM801UEXXS

LS32BM80PUNXGO

LS32BM80PUWXXL

LS32BM801UUXXU

LS32BM801UUXEN

LS32BM801UNXGO

With the VESA adapter you can easily mount your SAMSUNG brand monitor to a

monitor arm with VESA hole pattern (75 x 75mm). Use the included screws and

nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws

and dowels (not included).

www.3idee.eu

Table of Contents

Need help?

Do you have a question about the smsng-s32bm and is the answer not in the manual?

Page 1 VESA Adapter Assembly instructions The VESA adapter is compatible with the following Samsung M8 Smart Monitors series products (samsung.com): LS32BM801UNXGO LS32BM80GUNXGO LS32BM801UMXZN LS32BM801UCXXK LS32BM801UEXXS LS32BM80PUNXGO LS32BM80PUWXXL LS32BM801UUXXU LS32BM801UUXEN LS32BM801UNXGO With the VESA adapter you can easily mount your SAMSUNG brand monitor to a monitor arm with VESA hole pattern (75 x 75mm).
Page 2 Assembly instructions Assembly instruction Step 1 First, remove the base of your Samsung monitor. To do this, loosen the screw under the monitor base. (Figure 1) Please make sure you have a soft surface when storing the monitor for disassembly / assembly.
Page 3 Assembly instructions Step 6 This is how the correctly placed VESA adapter should look. (Figure 5) Figure 5 Step 7 Now slide the VESA adapter upwards as shown. (Figure 6) Figure 6 Step 8 Now take the single screw that was in the plastic bag with the sheet metal and screw it in as shown.
Page 4 Assembly instructions Step 10 For this step we recommend the help of a 2nd person. Now the monitor + VESA adapter can be screwed to your VESA arm. (Figure 9) Please use the 4 screws included in the delivery. Figure 9 Step 11 Please make sure that all 4 screws are tight.
Page 5 We wish you a lot of fun with your product. Your 3idee Team Responsible for this content: 3idee Technologies S.à r.l 5, ZA Um Lenster Bierg L-6125 Junglinster Luxembourg...
