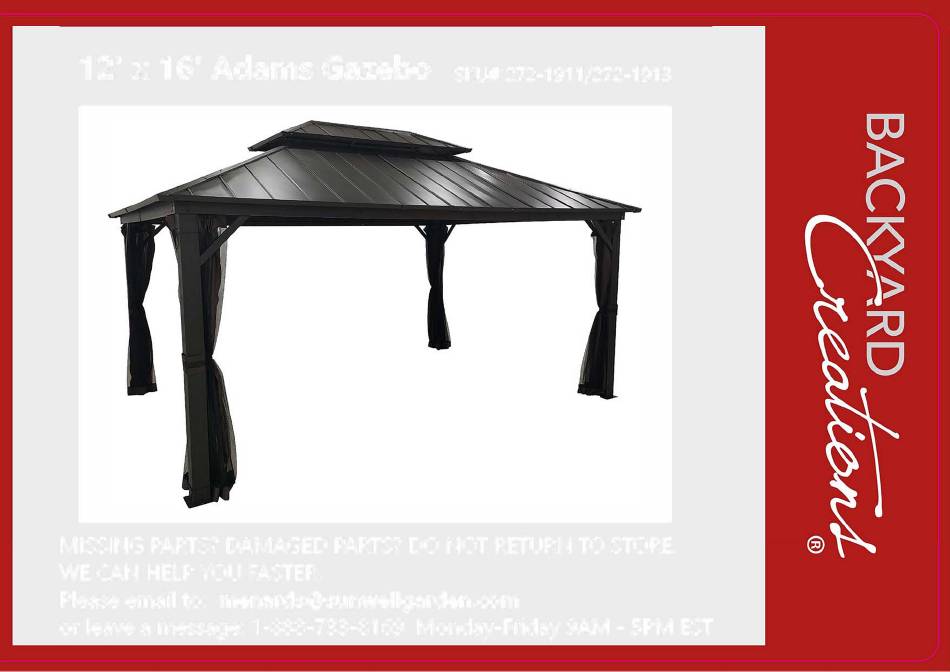

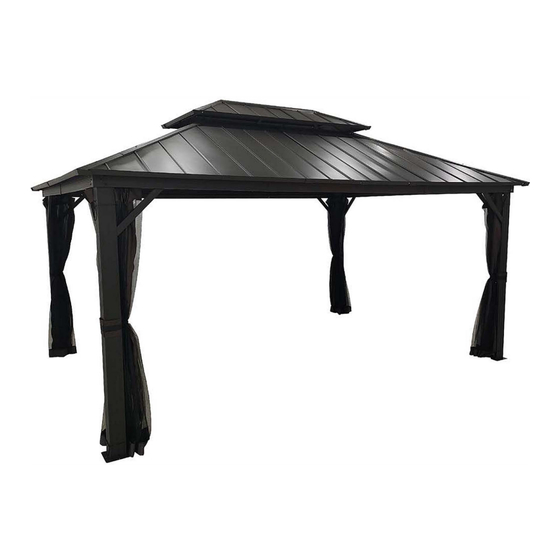

- Page 1 12' x 16' Adams Gazebo sKu# 212-19111212-1913 MISSING PARTS? DAMAGED PARTS? DO NOT RETURN TO STORE. WE CAN HELP YOU FASTER. Please email to: menards@sunwellgarden.com or leave a message: 1-888-733-8169 Monday-Friday 9AM - 5PM EST...
- Page 2 Thank you for your purchase! Please carefully unpack and inspect each of the components and hardware. � Before assembling, please check all components against the parts list in the following pages to make sure there are no missing or damaged parts. We suggest you place all components on the floor for easy comparison.
- Page 19 STEP#12 Attach the finished Roof Top Supports (H, I and HD12) to 4 pcs Roof Ribs (G1) with 8 pcs bolts (AA). AAx8 �� Caution: When assembling Top Supports to Roof Ribs, you will need 2 people on step-ladders to hold each end of Roof Top Supports steadily and attach to Roof Ribs together.
- Page 21 STEP#14 Attach 4 pcs Roof Top Ribs (K1) to Roof Top Suppor ts Connector s (HD12) with 4 pcs bolts (GG). Attach 2 pcs Roof Top Ribs (K2) to Roof Top Suppor ts (I) with 2 pcs bolts (GG).
- Page 22 STEP#15 Attach Roof Top Hook (HD11) into Roof Top Brace (L). Then, attach Roof Top Brace (L) to 4 pcs Roof Top Ribs (K1) with 4 pcs bolts (DD), EE x 4 4 pcs washers (EE) and 4 pcs nuts (FF), and then attach to 2 pcs Roof Top Ribs (K2) with 2 pcs bolts (AA) !l ll l l ! l [l llll [ll l [l[ll l l l l l ll l l �...
- Page 23 STEP#16 Attach 2 pcs Roof Top Borders (M), 2 pcs Roof Top Borders (N1) and 2 pcs Roof Top Borders (N2) to t he Roof Top Ribs (K1 and K2) with 12 pcs bolt s (AA). Caution: Be sure to install N1 and N2 w ith the border edges facing outw ards as N1 x 2 N2 x 2 pictured below .
- Page 25 STEP#18 AAx24 �� Place Roof Top Plates (1 pc RF1, 1 pc RF2, 2pc RF3 and 1 pc RF4) onto long side of assembled Roof Top Ribs, attach RF1 and RF2 on roof top ribs with 2pcs bolts (AA). Then place 2pc Mould Layers (HD6) on and attach Roof Top Plates onto the Roof Top Border with 10pcs bolts (AA).
- Page 26 STEP#19 RF1 x 2 Place Roof Top Plates (1 pc RF1 and 1 pc RF2) onto short side of assembled Roof Top Ribs, attach RF1 and RF2 on roof top ribs with 2pcs bolts (AA). Then place 1 pc Mould Layer (HD7) on and attach Roof Top Plates onto the Roof Top Border with 2pcs bolts (AA).
- Page 30 STEP#23 Attach 4 pcs Roof Borders (V1 ), 4 pcs Roof Borders (V2), 2 pcs Roof Borders (W1) and 2 pcs Roof Borders (W2) onto Roof Ribs with 24 pcs bol ts (AA) Caution: Be sure to install V1, V2, W1 and W2 with the border edges facing outwards as pictured below.
- Page 31 STEP#24 HD8x4 (!) Place Roof Plates (2pc RF11, 1 pc RF12 and 1 pc RF13) onto long side of assembled Roof Ribs with front edges tucked and clipped into Roof Top Supports. Then place 1 pc Mould Layer (HD10) on and attach those Roof Plates onto the Roof Border with 4pcs bolts (AA).
- Page 32 STEP#25 (!) Place Roof Plates (1 pc RF9, 1 pc RF10 and 1 pc RF11) onto short side of assembled Roof Ribs with edges tucked and clipped into Roof Top Supports. Attach Roof Plates (RF9 and RF10) on roof ribs with 2pcs bolts Then place 1 pc M ould Layer (HD7) on and attach Roof Plates onto the Roof Border (AA).
