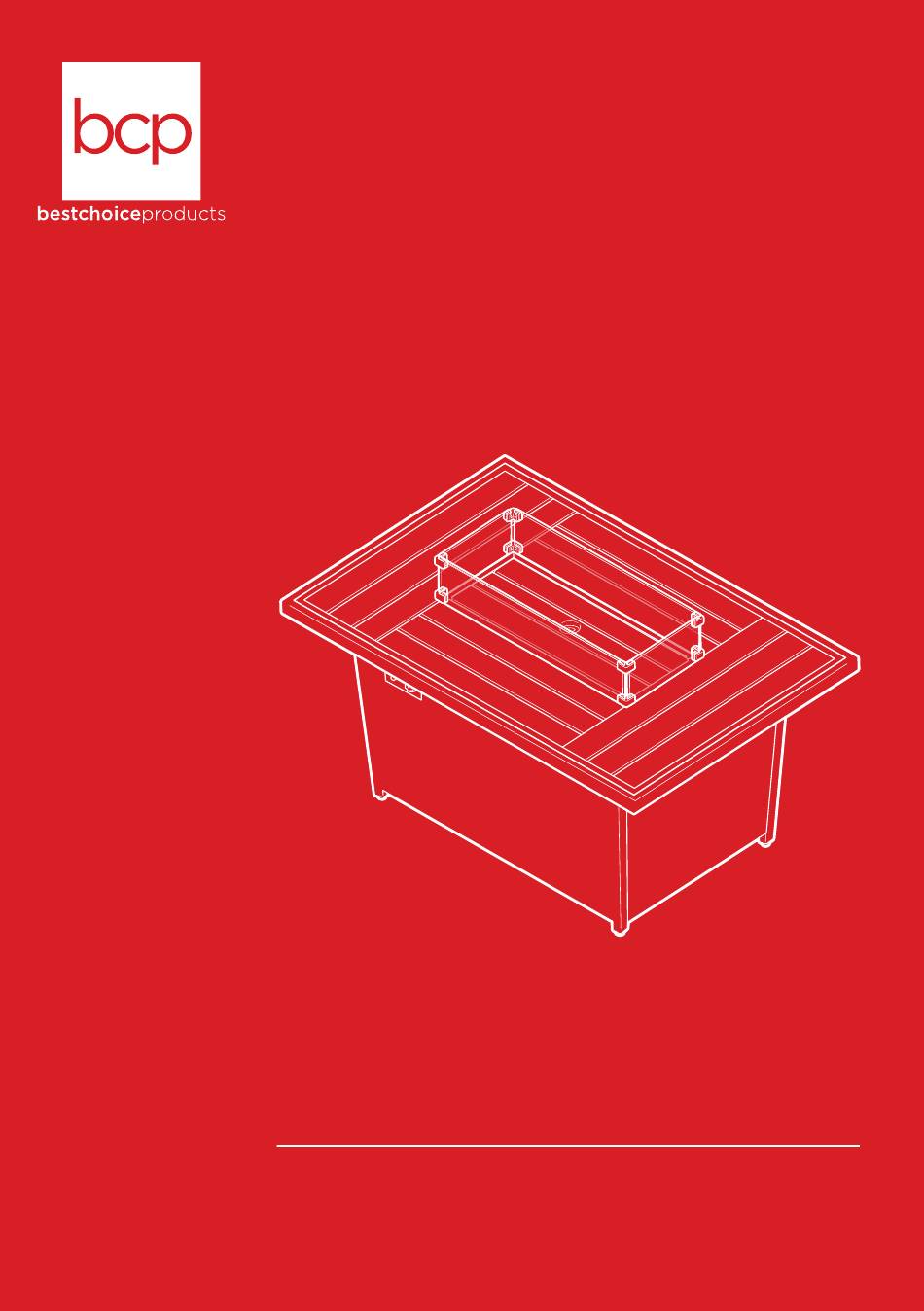

- Page 1 INSTRUCTION MANUAL Wicker Fire Pit Table SKY5267 + SKY5268 Ver. 3...
- Page 2 As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
-
Page 3: If You Smell Gas
WARNING Do not use this product directly on a wood deck or near a side wall. IF YOU SMELL GAS • Do not attempt to light appliance. • Extinguish flames and disconnect the tank. • Move people away from the immediate area. - Page 4 WARNING Do not allow the gas hose to contact the burner or fire bowl. IF YOU SMELL BURNING RUBBER • Extinguish flames and disconnect the tank. • Move people away from the immediate area. bestchoiceproducts.com...
-
Page 5: California Proposition
NOTICE Please retain these instructions for future reference. • For outdoor use only; do not use in a building, garage, or any other enclosed area. • Fire pit operates at reduced e ciency in temperatures below 40°F or wind velocity higher than 10 mph. •... -
Page 6: Tools Required
PROPANE TANK WARNINGS • Make sure to organize fuel hose to prevent accidental tripping. • Only use standard 20-pound propane tanks. • Maximum gas supply pressure is 250 PSI. • Do not fill tank more than 80% of its capacity. •... - Page 7 PARTS BACK RIGHT SIDE TANK SEAT TANK SEAT FRAME SUPPORT 1 PC 1 PC 1 PC 1 PC LEFT SIDE DOOR DOOR SUPPORT TABLETOP (L/R) WITH BURNER 1 PC 1 PC 2 PCS 1 PC GLASS SHORT GLASS LONG FIRE GLASS PANEL PANEL 2 PCS...
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Attach part B right side to part A back with two part 2 screws and two part 4 washers. Attach one side of the part C tank seat frame and part D tank seat support with two part 2 screws, a part 1 screw, and three part 4 washers. - Page 9 PRODUCT ASSEMBLY Attach part E left side to the back with two part 2 screws and two part 4 washers. Attach the other side of the tank seat frame and tank seat support with two part 2 screws, a part 1 screw, and three part 4 washers.
- Page 10 PRODUCT ASSEMBLY Attach two part G door supports (L/R) with two part 1 screws, two part 2 screws, and four part 4 washers. Carefully flip the table base over and attach it to the part H tabletop with six part 2 screws and six part 4 washers. Flip table onto its base.
- Page 11 PRODUCT ASSEMBLY Locate the part M burner unit and insert into the tabletop cavity. Make sure the burner control panel fits in the opening on the side of the table (see diagram below) Secure the burner unit with four part 7 burner screws and four part 8 burner washers.
- Page 12 PRODUCT ASSEMBLY Slide four part 6 brackets with feet onto two part I glass short panels. Secure the brackets to the short panels by tightening four attached screws. Slide two part J glass long panels onto the brackets. Secure the brackets to the long panels by tightening four attached screws.
- Page 13 PRODUCT ASSEMBLY Place the part L fire glass (see Placing Fire Glass section) and glass panels. Place the part K lid. NOTE: Hang lid on hangers when not in use.
- Page 14 DIAGRAM BURNER GUARD CONTROL PANEL HANGERS FUEL HOSE REGULATOR COUPLING NUT PLACING FIRE GLASS • Place fire glass in fire pit and spread them according to your preference. - You may place fire glass on burner but do NOT cover the guard. •...
- Page 15 INSTALLING PROPANE TANK NOTE: Only use standard 20-pound propane tanks. Slide open door and place propane tank on the tank seat frame. Turn wingnut clockwise to secure tank. Make sure release valve on tank is firmly screwed shut. Attach fuel hose regulator to the output Turn release valve on tank counterclockwise of the tank by turning the coupling to release gas.
-
Page 16: Installing Battery
INSTALLING BATTERY Unscrew igniter button. Insert AAA battery with the positive side facing outwards. Replace igniter button. NOTE: If the burner is not lighting, you may need to replace the battery in the igniter. CONTROL PANEL IGNITE CONTROL KNOB IGNITER: Push to light burner HIGH... - Page 17 OPERATING INSTRUCTIONS NOTE: Before use, inspect burner, propane tank, and connectors for damage, debris, obstructions, or dirt. Do not operate if there is any blockage. Push and turn control knob counterclockwise to low/ignite. Press the ignitor button repeatedly to light burner. - If flames do not ignite after 45 seconds, turn o , wait 5 minutes, and try again.
-
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Guard obstructed Clear guard of obstructions Burner not lighting Burner wet Dry burner with igniter Igniter battery dead Replace battery in igniter Replace/refill tank Propane tank is empty Coupling nut loose Fully tighten coupling nut Bent hose Straighten hose Burner does not light Remove obstructions or... - Page 19 Earn points while you shop. Join today! Give your friends 15% o their first order! For each successful referral you’ll receive 100 points. bestchoiceproducts.com...
-
Page 20: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
