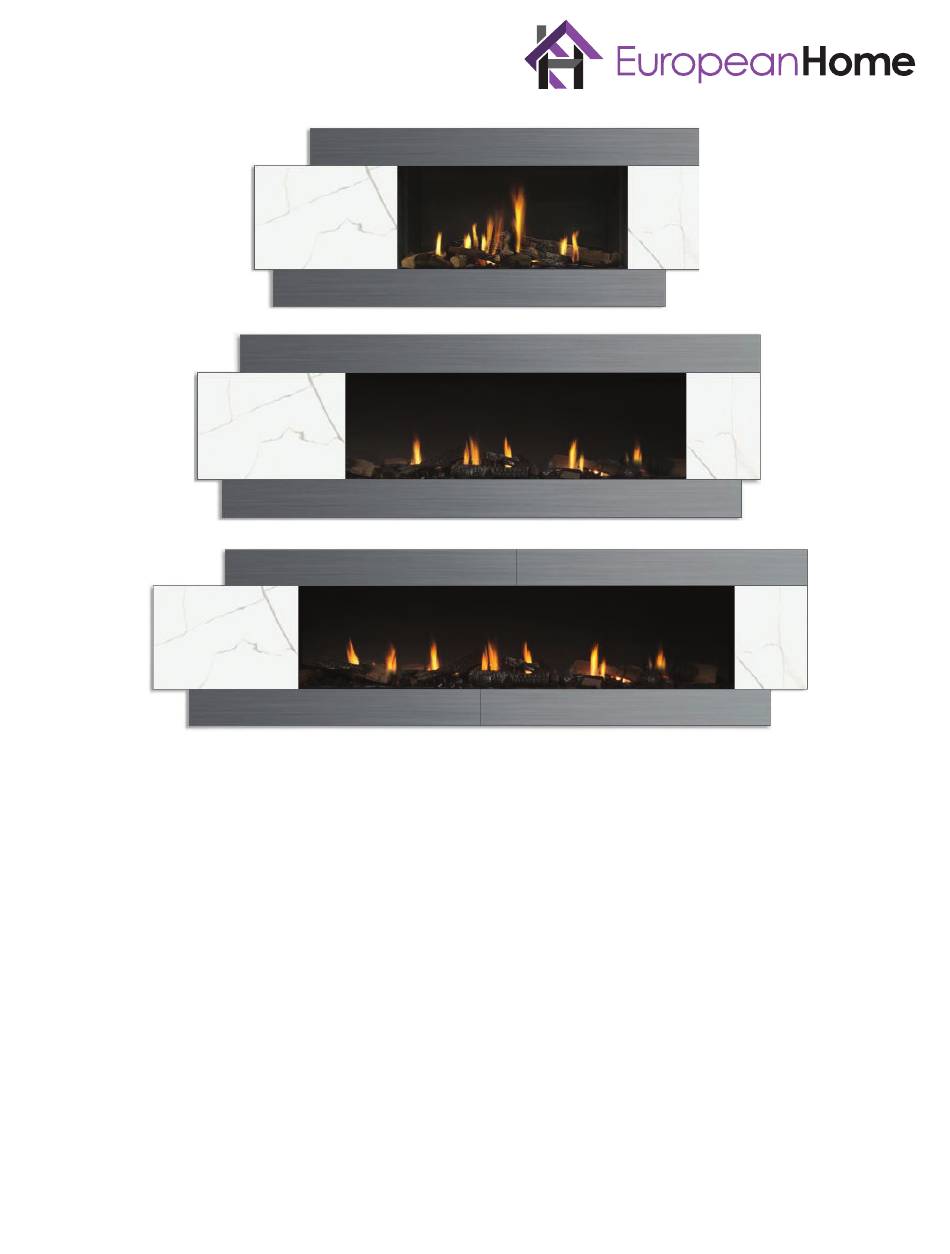

- Page 1 S c a f f o l d Designer Surround Installation Guide Exclusively designed to fit these Element4 Fireplaces: Modore 95 Modore 140 Modore 185 May 2019 Element4 Modore Fireplaces EuropeanHome.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Information Specifications and Dimensions Pre-Installation Planning Installation Maintenance Warranty Element4 Modore Fireplaces EuropeanHome.com... -
Page 3: Important Information
IMPORTANT INFORMATION PRODUCT INSTALLATION RECORD Installer: Please complete this form. Customer: Please retain this information. Purchased From Date of Purchase Installed By Date of Installation Surround Serial Number Thank you for your purchase of a Designer Surround for Element4! Since your Designer Surround for Element4 is designed to install, and perform, like ceramic tile, it should be installed by a professional. - Page 4 SCAFFOLD SURROUND PANELS 17 1/8” 16 3/4” 16 13/16” 12” 12” 12” 17 1/8” 16 3/4” 16 13/16” 24” 24” 24” 6” 52” 6” 63” 6” 84” 52” Metal 63” Metal 84” Metal 95 Scaffold 140 Scaffold 185 Scaffold 12"x 16 13/16" 12"x 16 3/4"...
-
Page 5: Specifications And Dimensions
SPECIFICATIONS and DIMENSIONS SPECIFICATIONS and DIMENSIONS 73 1/2” 63” 29” Tile Tile 63” 91 1/8” 84” 28 3/4” Tile Tile 84” 109” 52” 52” 29 1/8” Tile Tile 52” 52” Element4 Modore Fireplaces EuropeanHome.com... -
Page 6: Pre-Installation Planning
PRE-INSTALLATION PLANNING BEFORE YOU BEGIN These surrounds are intended to be installed in the same manor you would use a french cleat system. (See image below) Please read these instructions thoroughly before proceeding. There is information which is important for safe and eff ective installation. -
Page 7: Installation
INSTALLATION LAYING OUT THE PANELS The panels of the Designer Surround for Element4 are made to fit against the fireplace opening and each other. First, hold a metal panel up to the lower edge of the fireplace and mark the wall with a light pencil line along the lower edge of the metal panel(s). - Page 8 INSTALLATION: WALL LAYOUT INSTALLATION The metal panels and tile panels should be applied to the wall in the order shown below. They will be hung on the wall using z-clips by the system described on page 6,9,10 and 11. 4 (Metal) 2 (Tile) 3 (Tile) 95 Fireplace...
- Page 9 INSTALLATION: WALL LAYOUT + Z-CLIPS NOTE ABOUT Z-CLIPS Z-clips installed on the wall should have the interlocking side facing up. The slotted side of the clips face the wall. The length of the clips is to account for contact with the existing wall stud behind the wall sheet- ing.
- Page 10 INSTALLATION INSTALLATION: WALL LAYOUT Using the starting point and the edges of the fireplace, mark lines on the wall using the measurements appropriate to your model, below. Red lines Represent guidelines for Z-clip; draw these in as guides for mounting. 2 5/16”...
- Page 11 INSTALLATION The areas in gray, below, show where the Z-clips is to be applied to the wall. 2 5/16” 6” 2 5/16” 24” 12” 2 3/16” 6” Align Z-Clips to Red Lines (95- not to scale) 2 5/16” 6” 2 5/16” 24”...
-
Page 12: Maintenance
MAINTENANCE SURROUND MAINTENANCE Weekly Cleaning Both the metal and tile panels should be wiped with a lint free cloth to remove any dust then wiped with a damp cloth. Element4 Modore Fireplaces EuropeanHome.com... -
Page 13: Warranty
YEARS from the date of original retail purchase. If a defect exists, European Home will, at its option, either (1) provide needed components using new or refurbished replacement parts or (2) exchange the product with one which is new or which has been manu- factured from new or serviceable used parts and is at least functionally equivalent to the original product. - Page 14 EUROPEAN HOME a division of Europa Ja, Inc. 30 Log Bridge Road Building 300 - Suite 303 Middleton, MA 01949 www.europeanhome.com IGHVFSS 1.0 Element4 Modore Fireplaces EuropeanHome.com...
