OSD Black SRT4 - 4-zone Streaming, Media Server Manual

INTRODUCTION

Thank you for purchasing the OSD BL ACK SRT4 4-Zone Wi-Fi Smart Streamer. This multi-zone pre-amp is ideal for commercial and residential applications. The SRT4 is c ompatible with the OSD Player ap p fo r control over all your zones individually or all zones together in multi-room audio mode.

Package Contents:

• BK-SRT4 4-Zone Wi-Fi Smart Streamer
• 12VDC 1.5A Power Supply
• 2 x Removable Rack Ears
• Manual

FEATURES

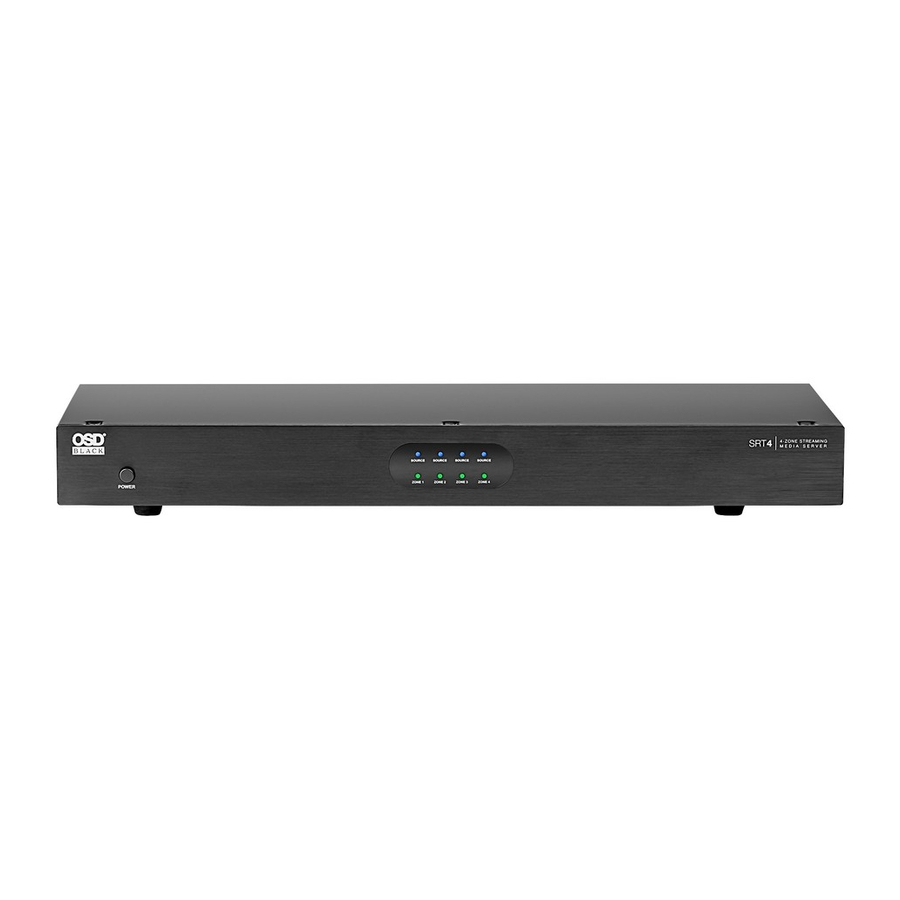

Front Panel:

1. Zone Audio Source Indicators
   • Blue/Wi-Fi
   • Red/Line-In
   • Purple/USB,Optical
2. Zone Power Indicators
3. Power Switch

Rear panel:

1. RS-485: RS-485 Connect
2. Digital In (Bus Input): Digital optical input
3. Line In 1 (Bus Input): RCA stereo input
4. Line In 2 (Bus Input): RCA stereo input
5. Line Out (Zone 1-4): RCA stereo output
6. Digital Out (Zone 1-4): Digital optical output
7. USB Input (Zone 1-4): Read U disk function, does not support USB charging
8. WPS button (Zone 1-4): Press to connect to WPS enabled network
9. Ethernet: LAN input
10. DC In: 12V/1.5A

Getting Started

Remove the SRT4 from the box and inspect the device to make sure it is free of any damage and that all package con tents are accounted for. Place the SRT4 in your desired location and plug the included power supply into the SRT4 and an available outlet. The next step is to connect the SRT4 to your network for streaming and control of each zone using the OSD Player app.

https://play.google.com/store/apps/details?id=com.wifiaudio.osd&hl=en


https://itunes.apple.com/us/app/osd-player/id1447579044?mt=8

Wi-Fi connectivity: Wireless Multi-Room Audio

1. Download and install the OSD ap
2. Follow the setup instructions in the OSD app to connect to your Wi-Fi network.
   Each zone will need to be connected the Wi-Fi router individually, repeat setup instructions for zone 1-4.

LAN connectivity

1. Download and install the OSD app by scanning the QR code or search "OSD Player" in the app store/Google Play store.
2. Connect the SRT4 to your router using the RJ45 Ethernet port on the rear panel.
3. LAN connection will automatically setup all zones. Ensure your mobile device is connected to the same network and open the OSD Player control app.

See below for a basic system diagram & connection options.
