Installation parts

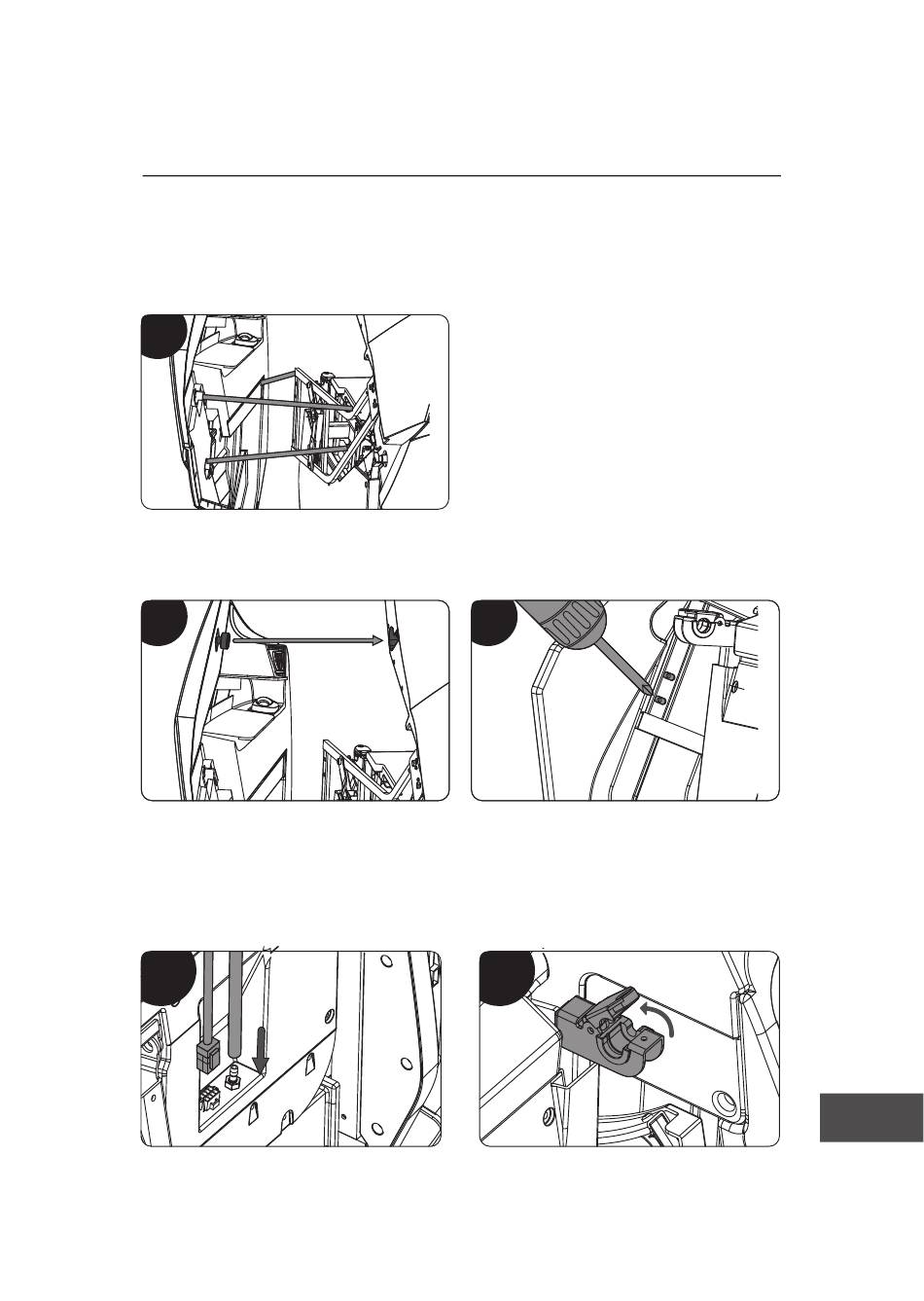

Armrest installation instructions
1. Insert the wire harness inserts and air pipe on the side of the steel frame into the
corresponding positions on the armrest (Figure 1).
2. Lift up the armrest with the air pipe and wire inserted, and hang all the hooks on
the armrest on both sides of the steel frame (Figure 1).
Figure 1
3. Put the roller at the rear end of the armrest on the surface of the armrest fixing part
(Figure 2), and put down the armrest backwards, then push the armrest backwards,
and lock it with 2 pieces M5 screws (Figure 3);
Figure 2
Calf installation instructions
1. Insert the wire of the calf and the air pipe into the sockets on the front end of the
steel frame assembly (Figure 1).
2. After the wire docking is completed, open the calf fixing covers on both sides of
the steel frame assembly (Figure 2).
Figure 1
Figure 3
Figure 2
