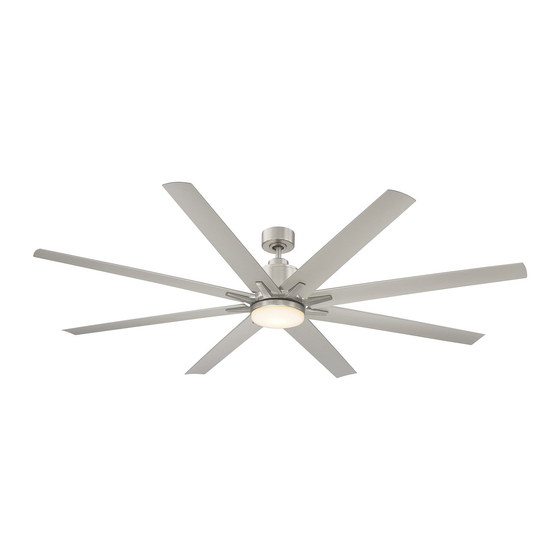

- Page 1 72” CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: M2025XX FAN RATING AC 120V. 60Hz ETL LISTED MODEL : YG493OD...
-
Page 2: Tools And Materials Required
1. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (8) b. -
Page 3: Safety Rules
3. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. Do not use water or detergents when electricity has been turned off at the circuit cleaning the fan or fan blades. A dry dust breaker or fuse box before beginning. cloth or lightly dampened cloth will be suitable for most cleaning. -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing CUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. Use appropriate fasteners and building materials. -
Page 5: Hanging The Fan
5. HANGING THE FAN Hanger REMEMBER to turn off the power. Follow bracket the steps below to hang your fan properly: Step 1. Remove the decorative canopy Ceiling canopy bottom cover from the canopy by turning the cover counter clockwise. (Fig. 5) Canopy Step 2. -
Page 6: Installation Of Safety Support
6. INSTALLATION OF SAFETY SUPPORT An additional safety support is provided to Hanger bracket prevent the fan from falling. Secure the Safety cable safety cable to the ceiling joist with screw and washer, as illustrated in Figure 9. Figure 9 7. -
Page 7: Finishing The Installation
8. FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. Outlet box Step 2. Slide the canopy up to hanger bracket and place the key hole on the Hanger canopy over the screw on the hanger bracket bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 8: Attaching The Fan Blades
9. ATTACHING THE FAN BLADES Step 1. Attach the blade to the blade bracket using the screws as shown in Figure 12. Start screw into bracket. Repeat for the two remaining screws. Step 2. Tighten each screw. Make sure the blade is straight. Step 3. - Page 9 11. INSTALLING THE LED LIGHT KIT & LIGHT SHADE NOTE: Before starting installation, disco- nect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. Step 1.
- Page 10 12. OPERATING INSTRUCTIONS Insert the 23A/12V battery (included) and make sure they are seated correctly in recess. (Fig. 15) Your DC motor is equipped with an auto learning type of remote control. There are no frequency switches on the receiver unit, the receiver will automatically learn the frequency from the remote control during the pairing process.
- Page 11 Pairing Process: The auto-learning process will only initiate This receiver provides the following protective within the first 60 seconds of supplying power function: to the fan. 1. Lock Rotor Position: The DC motor has a Beginning with the fans power off, restore built-in safety against a stalled or locked rotor power to the fan.
-
Page 12: Care Of Your Fan
Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans and so on. NOTE: To operate the reverse function on this fan, press the reverse button while the fan is running. Warm weather - (Forward) A downward airflow creates a cooling effect as shown in Fig. -
Page 13: Troubleshooting
14. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. 3. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
