• When using a two-speaker installation, the Green, Green/Black, Violet, Violet/Black wires,
which are used for a four-speaker installation, are not used. The ends of these wires must
be covered with electrical tape to prevent them from shorting to the unit or the vehicle chassis.
Fuse 15A
Burnt

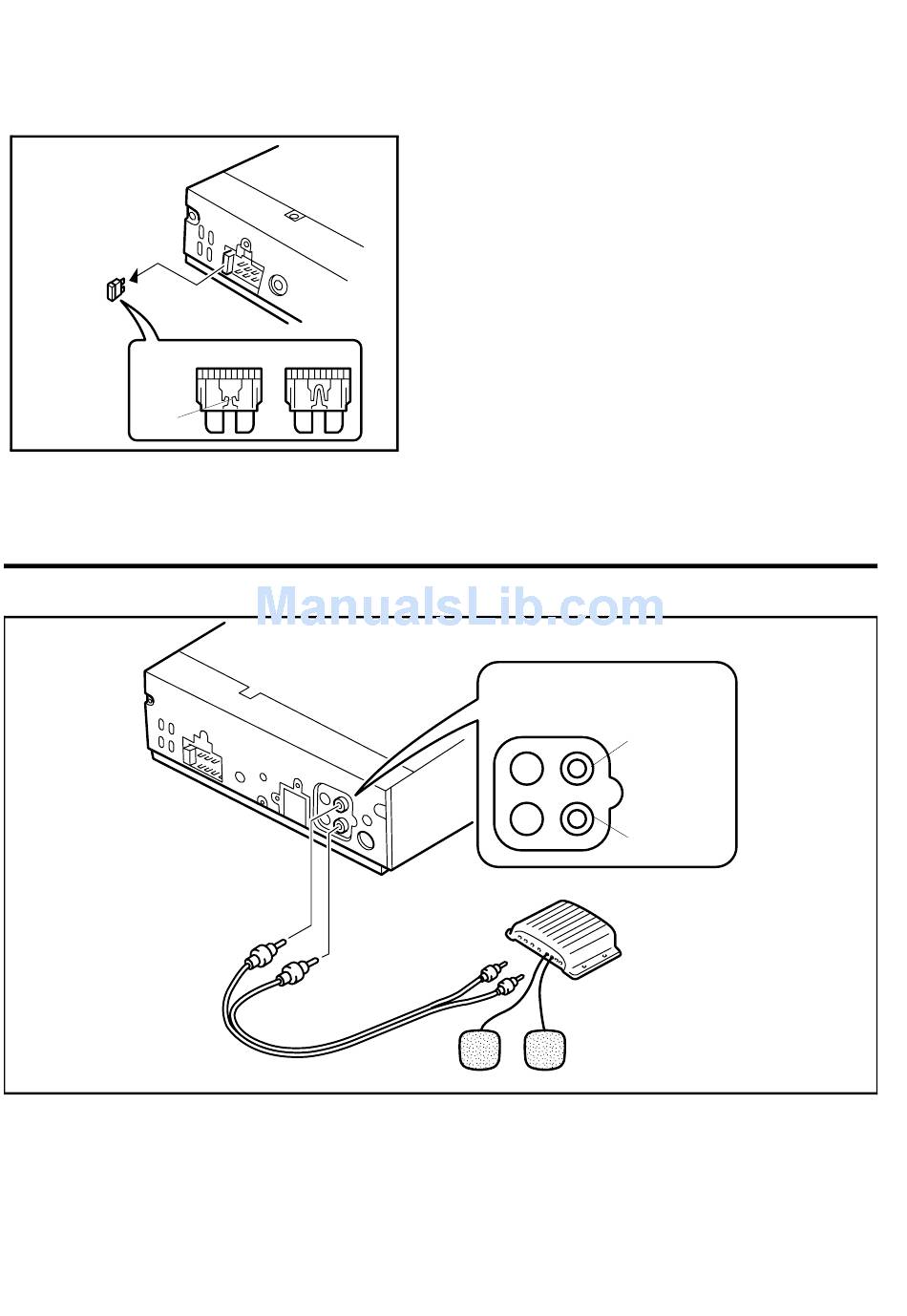

LINE OUT CONNECTIONS

The unit has a line output terminals. You can use a separate amplifier to upgrade your system.
RCA Line-out Jacks (For Speakers)
Connect a patch cable (not supplied) from the White (left channel) and Red (right channel) RCA line output
jacks to the line input terminals of the external amplifier.
NG
OK
• When using a two-speaker installation, set the
FADER control to the center position.
• When fuse replacement is necessary remove
the blown fuse by using pliers.
Then install the new 15 amp. fuse.
RCA Line-out Jacks
OUTPUT
REAR
Rear Speaker
-23-
White
L (eft)
R (ight)
Red
External
Amplifier
