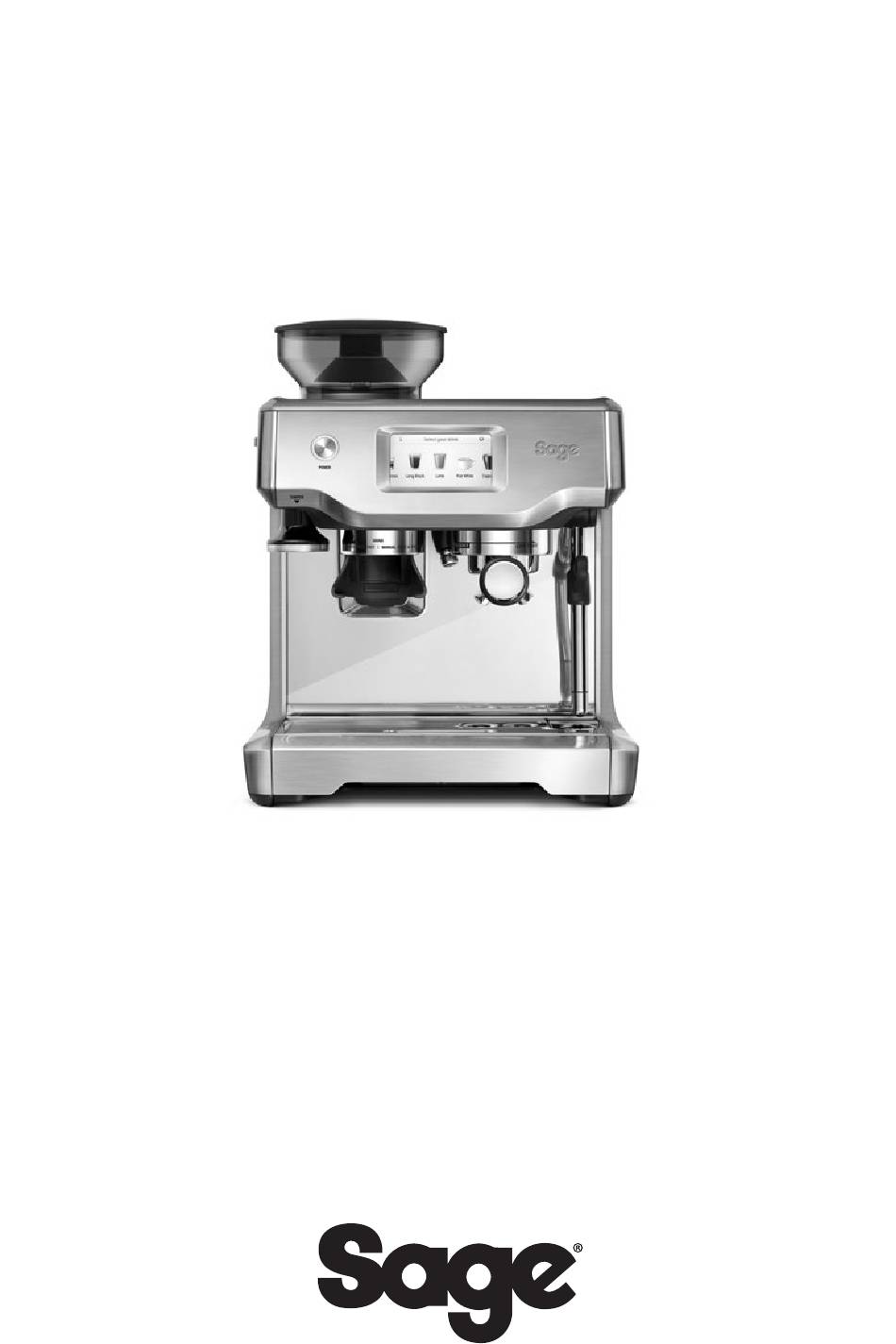

- Page 1 Barista Touch ™ SES880...
-
Page 2: Table Of Contents
• This appliance is for household SAFETY FIRST use only. Do not use the appliance for anything other At Sage we are very safety ® than its intended use. Do not conscious. We design and use in moving vehicles or manufacture consumer boats. - Page 3 If damaged or maintenance in this booklet. other than cleaning is • Do not move the appliance required, please contact Sage whilst in operation Customer Service or go to • Do not touch hot surfaces. sageappliances.com Allow the appliance to cool •...
- Page 4 SPECIFIC • Use only tap water in the water tank. Do not use any other liquid. INSTRUCTIONS • Never use the appliance without FOR WATER water in the water tank. FILTER • Ensure the portafilter is firmly inserted and secured into the •...
-
Page 5: Components
Components A. 250g bean hopper J. Removable wet & dry coffee separator drip tray B. Integrated conical burr grinder K. 2L removable water tank C. Touch screen control panel L. Group Head D. GRIND SIZE selector M. Dedicated hot water outlet E. - Page 6 All parts of the Barista Touch ™ that come into contact with coffee, water and milk are BPA Free. ACCESSORIES 1. Stainless steel milk jug 7. Cleaning brush 2. Cleaning disc 8. The Razor precision dose trimming tool ™ 3. Cleaning tablets 9.
-
Page 7: Functions
Functions INSTALLING THE WATER FILTER • Fill the water tank with cold water before sliding back into position at the back of the machine and • Remove the water filter and water filter holder locking into place. from the plastic bag. FIRST USE •... - Page 8 DRINK SELECTION To enter Drinks Menu screen, touch the Home icon . Swipe & select your drink. Touch the ‘Help & Tip’ icon to see Barista Touch Guide. ™ Select your drink Espresso Long Black Latte Flat White Cappuccino NOTE Please keep the touch screen dry and clean to ensure that the machine functions properly.
- Page 9 SETTING GRIND SIZE Tamping the Ground Coffee • Once grinding is complete, Tamp down firmly. Selecting Your Filter Basket • As a guide to dose, the top edge of the metal cap on the tamper should be level with the top of the Single Wall Filter Baskets filter basket AFTER the coffee has been tamped.
- Page 10 TEXTURING MILK Purging the Group Head Before placing the portafilter into the group head, run a short flow of water through the group head by touching the ‘Hot Water’ button. This will stabilise the temperature prior to extraction. Inserting the Portafilter Insert the portafilter into the group head and rotate the handle towards the centre until resistance is felt.
- Page 11 MANUAL MILK TEXTURING Auto milk texturing and auto shut-off are disabled during manual milk texturing mode. Lift the steam wand. Start frothing by touching the button. When frothing is done, touch the Milk button to stop. Wipe the wand & tip with a clean damp cloth. Lower steam wand to the down position and the Add New wand will automatically purge.
- Page 12 EXTRACTION GUIDE CORRECT EXTRACTION UNDER EXTRACTION OVER EXTRACTION • Flow starts after 8-12 secs • Flow starts after 1-7 secs • Flow starts after 13 secs • Flow slow like warm honey • Flow fast like water • Flow drips or not at all •...
-
Page 13: Care & Cleaning
Replacing the water filter after three months or 40L will reduce the need to descale the machine. The limitation of 40L is based on water hardness level 4. If you are in level 2 area, you can increase this to 60L. NOTE To purchase water filters visit Sage webpage. ® CLEANING CYCLE There will be a message prompt when a cleaning cycle is required. - Page 14 CLEANING THE CONICAL BURR GRINDER This grinder cleaning cycle removes oil build-up on the burrs which can impede performance. PUSH Run grinder empty Unlock hopper Unlock hopper Empty hopper Replace hopper Lock hopper Remove hopper Clean top burr with Clean lower burr Clean chute with Unlock top burr Remove top burr...
- Page 15 CLEANING THE STEAM WAND NOTE • The steam wand should always be cleaned after texturing milk. Wipe the steam wand with All parts should be cleaned by hand using warm a damp cloth. water and a gentle dish washing liquid. Do not use abrasive cleansers, pads or cloths which can •...
- Page 16 2-3 revolutions then insert the Allen Key to tighten until the screw is flush with the shower screen. Do not overtighten screw. 8. Re-insert the drip tray and water tank. Contact Sage Consumer Support or visit the Sage webpage for replacement silicone seals ®...
-
Page 17: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSES EASY SOLUTION Water does not flow Water tank is empty. Fill tank. from the group head. Water tank is not fully inserted Push water tank down completely to No hot water. and locked into position. lock into place. Machine needs to be descaled. - Page 18 PROBLEM POSSIBLE CAUSES EASY SOLUTION Espresso runs Coffee is ground too coarsely. Use slightly finer grind. out too quickly. Refer to ‘Setting the Grind Size’, page 9 and ‘Under Extraction’, page 12. Not enough coffee in the filter Increase dose of coffee. basket.
- Page 19 PROBLEM POSSIBLE CAUSES EASY SOLUTION Cups not pre-heated. Rinse cups under hot water outlet Coffee not hot enough. and place on cup warming tray. Portafilter not pre-heated. Rinse portafilter under hot water outlet. Dry thoroughly. Milk not hot enough Make sure sensor is in contact. (if making a cappuccino Adjust milk temperature setting or latté...
- Page 20 Allow to cool for about 30–60 minutes. If problem persists, call Sage Support. No ground coffee No coffee beans in hopper. Filler hopper with fresh coffee beans. coming from grinder.
- Page 21 Sage ® Freephone (UK Landline): 0808 178 1650 Mobile Calls (National Rate): 0333 0142 970 www.sageappliances.co.uk customerservice@sageappliances.co.uk Register your product and get What’s on your mind? more from your purchase Our constant aim is to improve Product registration takes only a few...
