KitchenAid WVU31UC0F Installation Instructions And Use & Care Manual page 9

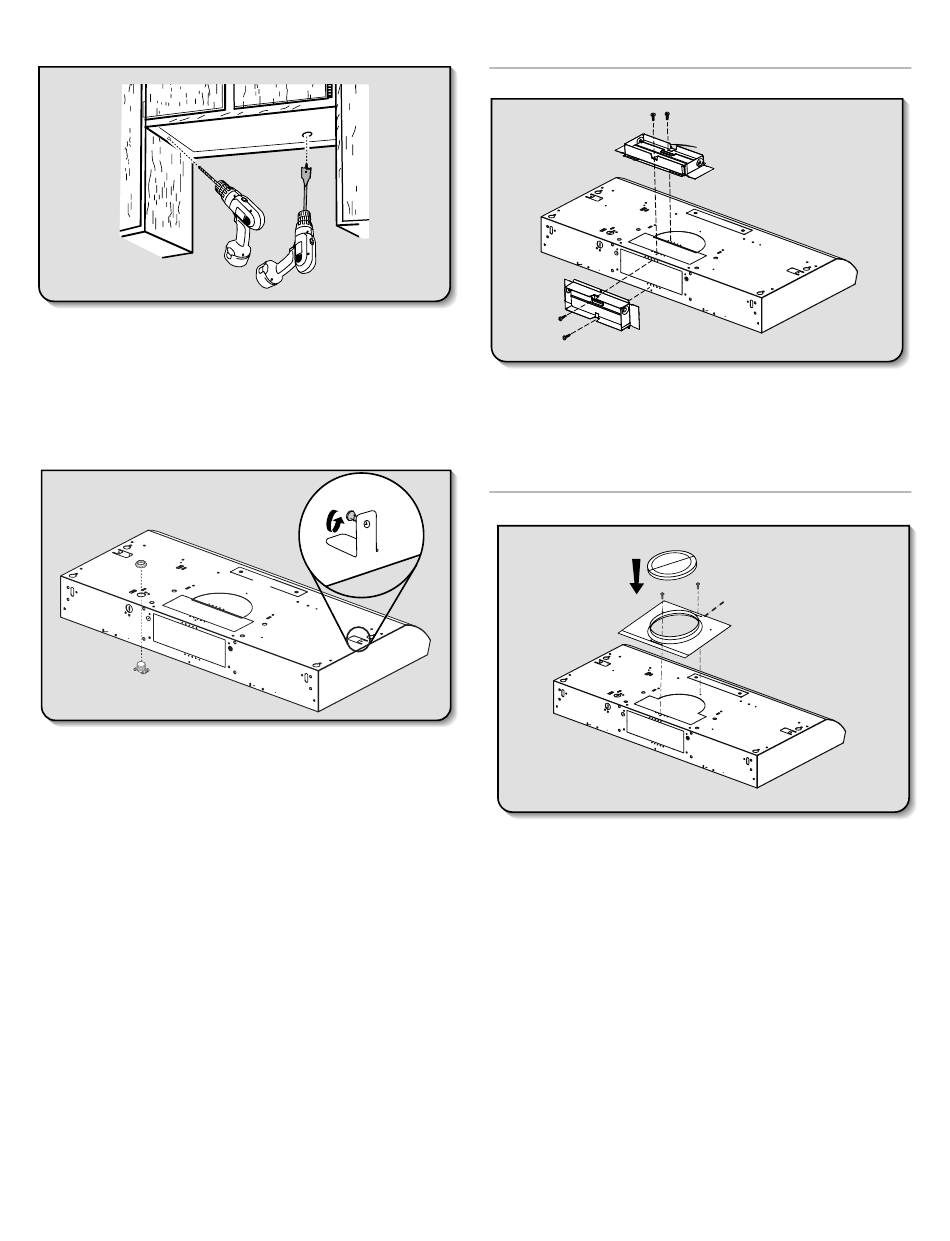

7. Drill Electrical Opening
Using a 1 / " (3 cm) drill bit, drill the hole in the dot
1
4
marked previously at the electrical strain relief.
OPTIONAL: Using a / " (3 mm) drill bit, drill pilot holes
1
8
for the dots marked previously at each mounting tab
at an approximate 45° angle in an upward direction.
8. Prepare Range Hood Vents
and Mounting Tabs
C
B
A
Install Strain Relief
■
Install a UL Listed/CSA Approved
strain relief (A).
Mounting Tabs
■
Start a #8-18 x / " (4.2 x 16 mm) truss-head screw into
5
8
the mounting tab (F) on each side of the range hood
as shown in the inset. Insert the screws approximately
2 turns into the mounting tab holes.
Non-vent (Recirculating) installations
■
Using a #2 Phillips screwdriver remove the 2 screws and
remove the top, front rectangular vent cover (E). Go to
Step 12.
3 / " x 10" (8.3 x 25.4 cm) Rectangular Vent Installations
1
■
4
For top vent installations, remove the top, rectangular vent
knockout (C).
For wall vent installations, remove the rear rectangular vent
knockout (B).
7" (17.8 cm) Round Vent Installations
■
Remove both top knockouts (C and D).
F
x2
E
D
/ " (13 mm)
1
2
OR
9. Attach Vent Damper or Transition
3 / " x 10" (8.3 x 25.4 cm) Rectangular Vent Damper
1
4
Using (2) short Phillips head screws, install the 3
■
(8.3 x 25.4 cm) rectangular damper over the top or rear vent
knockout removed in Step 8.
NOTE: If the wall cap used has a damper and it interferes
with the rectangular damper, remove the rectangular
damper flap.
7" (17.8 cm) Round Vent Mounting Plate
B
Using (2) short Phillips head screws, install the 7" (17.8 cm)
■
round vent mounting plate over the vent knockouts
removed in Step 8. Position the wide flange (C) to the front.
NOTE: An optional 7" (17.8 cm) round damper (A), Part
Number W10355451, and a 7" (17.8 cm) round vent
mounting plate (B), Part Number W10388168, are available
as accessories. For information on ordering, see the
"Assistance or Service" section.
If installing the optional round damper, position
■
it over the round vent mounting plate.
/ " x 10"
1
4
A
C
9
