WinCom Window

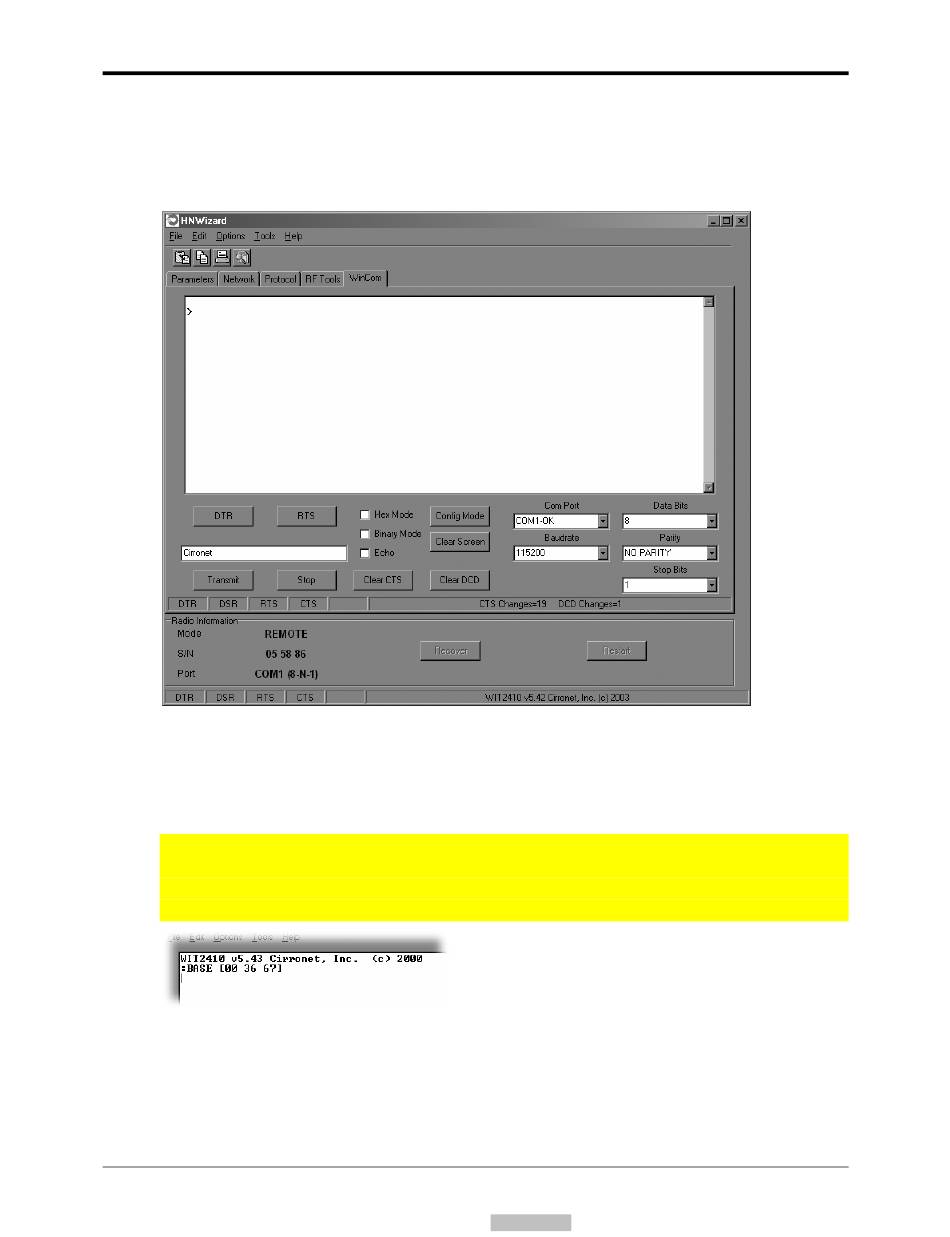

Normally, the WinCom Window is not displayed and no tab will appear to the right of
the RF Tools tab. To display the WinCom tab, place the cursor in any hot field and press
the CTRL+F10 key. Clicking on the WinCom tab will display the following screen.
When first initialized, WinCom will automatically put the radio in Config Mode and two
prompts will display as shown above. Both the Com Port and Baud Rate will have been
automatically detected and set providing Auto-Detect is set in the INIT.INI file (default).
If the INIT.INI file has been changed, Com Port and Baud Rate will need to be set
manually.
NOTE: In order to display the banner, you will need to press the F1 key twice, toggling
the DTR which resets the radio and causes a new banner to display. WinCOM de-
asserts and re-asserts the DTR line to the radio which resets the radio causing the sign-
on banner to be displayed as shown below.
The banner indicates the radio firmware version, whether the radio is operating as a base
or a remote and the unique factory serial number of the radio module. If nothing is
displayed in the communications window of WinCOM, verify the COM port and baud
rate settings, then reset the radio (by hitting F1 twice). Cycling power to the radio also
will cause the sign on banner to be displayed.
