Summary of Contents for CareCo Breeze 8 II

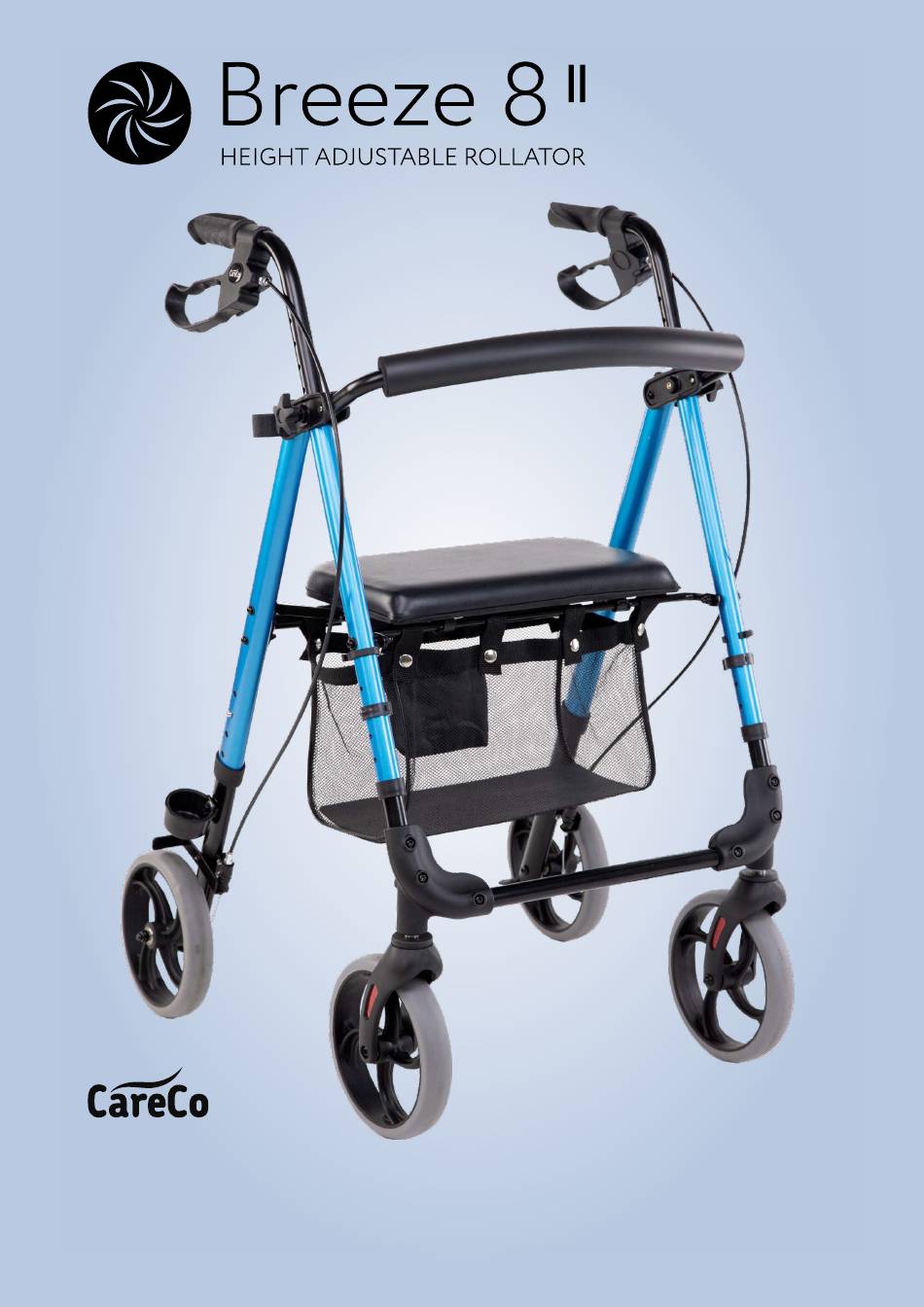

  • Page 1 USER MANUAL WA02010036 PRODUCT CODE...
  • Page 2: Read Before Use

    WA02010036 PRODUCT CODE INTRODUCTION The CareCo Breeze 8 II is the ideal partner for users on the go and users who want to stay active. A convenient collapsible aluminium frame and a light 7.5kg carry weight makes this rollator the go-to reliable aid for both indoor and outdoor use.
  • Page 3: Expected Lifetime

    USAGE This rollator is intended for users who experience difficulty in walking and/or have reduced mobility. Unauthorized modifications and/or installation of unapproved 3rd party components and accessories are not permitted. This rollator is suitable for indoor and outdoor use. EXPECTED LIFETIME The expected lifetime of this product is 5 years, provided the product is used for its intended purpose and all maintenance and care instructions are followed.
  • Page 4: Parts Description

    WA02010036 PRODUCT CODE PARTS DESCRIPTION 1. Height Adjustable Handle 2. Backrest 3. Seat 4. Bag 5. Front Wheel 6. Rear Wheel 136 KG MAXIMUM WEIGHT CAPACITY: 5 KG MAXIMUM CARRY BAG LOAD:...
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS • Only use the rollator for its intended use, incorrect use can lead to hazardous situations. • Only use the rollator on even and solid surfaces • Do not overfill the product bag –Maximum load 5KG • Prolonged exposure to hot or cold temperatures can cause parts of the rollator to become hot or cold.
  • Page 6 PRODUCT CODE UNPACKING Remove all outer packaging before placing components on a level surface. Contact CareCo immediately if any parts are missing from the product box. ASSEMBLY Insert the front wheel assembly into the base of the front frame. Secure using 2x C-Clips provided.
  • Page 7 Insert the rear wheel assembly into the base of the rear frame. Secure the assembly to the desired height option by pressing and locating the button spring clip. Repeat on the other side. Place the rollator upright on its wheels Insert the handle into the top of the frame.
  • Page 8 WA02010036 PRODUCT CODE Locate the brake cable into the “S” Clip to secure to the frame. Repeat on the other side. Attach the backrest to the frame by pressing and locating the button spring clips into the bracket. DISASSEMBLY Reverse the assembly instructions and use them as a guide to disassemble the rollator.
  • Page 9: Handle Height Adjustment

    HANDLE HEIGHT ADJUSTMENT Loosen the star knob by turning it anticlock- wise. Remove the star knob from the handle bracket. Lift or lower handle to the desired height. Reinsert the star knob into the handle bracket. Tighten the star knob by turning it clockwise. Repeat on the opposite side.
  • Page 10 WA02010036 PRODUCT CODE Locking Unlocking Push both brake levers downwards to apply Pull both brake levers upwards to unlock the the brake lock. brakes. An audible “click” will confirm the brakes are secure. Turning Squeeze the left and right brake levers individually to rotate the rollator. Release the brake lever to stop rotating.
  • Page 11 FOLDING Push both brake levers downwards to apply the brake lock. Lift the backrest upwards to fold the backrest. Lift the seat upwards to reveal the support bar. Pull the support bar upwards to fold the rollator.
  • Page 12 WA02010036 PRODUCT CODE UNFOLDING Unfold the backrest. Push downwards on the seat to open the rollator. Pull both brake levers upwards to unlock the brakes.
  • Page 13 BACKREST Attaching & Removing the backrest Folding Secure the backrest to the frame by Raise the backrest to fold. pressing and locating the button spring clips into the bracket. Remove the Unfolding backrest by pressing the button spring clips and pulling the backrest upwards. Lower the backrest to unfold.
  • Page 14 WA02010036 PRODUCT CODE SEAT The seat height can be adjusted by raising or lowering the wheel assemblies. Place the rollator upright on its wheels Push both brake levers downwards to apply the brake lock. Remove the C-Clips from the front frame Adjust the front wheel assembly to the desired height Secure using the C-Clips Press and locate the rear wheel assembly spring clip to the desired height - repeat on the...
  • Page 15 ACCESSORIES WALKING STICK / CANE HOLDER The rollator is equipped with a walking stick/ cane holder out of the box. Place the walking stick/cane into the lower cup section Secure the walking stick/ cane to the rollator frame using the velcro included. Attaching Lift the seat upwards to reveal the support bar.
  • Page 16: Cleaning & Hygiene

    WA02010036 PRODUCT CODE CLEANING & HYGIENE To keep the rollator in optimal condition, it should be cleaned regularly with a damp cloth and/or mild soap. Do not use abrasive cleaners/materials. Dry the rollator after cleaning and after use in bad weather conditions. MAINTENANCE By performing simple maintenance, the user can extend the life expectancy of the rollator.
  • Page 17: Specifications

    SPECIFICATIONS Length 62cm Width 61cm Height (Adjustable) 84-102cm Seat Height 52-60cm Seat Width 38cm Seat Depth 24cm Cushion Height 3.5cm Folded Width 32cm Folded Length 60.5cm Folded Height 89cm Arm to arm distance 48cm Net weight 7.5kg Gross Weight 8.4kg Max Carry Bag Load Rear wheel size 8 inch...
  • Page 18: Warranty

    PRODUCT CODE WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • 1-YEAR LIMITED WARRANTY Consumables are not covered under normal warranty circumstances unless they have clearly suffered excessive wear or damage as a direct result of a manufacturing defect.
  • Page 19: Recycling And Disposal

    RECYCLING & DISPOSAL Disposal or recycling of the rollator should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Alternatively, contact CareCo for advice on disposal. Materials: Packaging: Carboard Box, Low-density polytthylene bag,PE foam...
  • Page 20 973142 310129 ROLLATOR...
