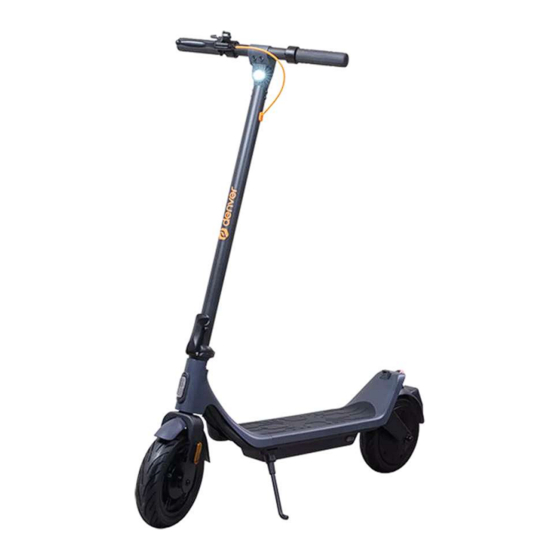

Denver SEL-10360DONAR Original Manual
  1. Manuals
  2. Brands
  3. Denver Manuals
  4. Scooter
  5. SEL-10360DONAR
  6. Original manual

Denver SEL-10360DONAR Original Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original manual
SEL-10360DONAR
facebook.com/denver.eu
March/2023 - Version 1.0
IMPORTANT! Read carefully and keep for future reference.
Before operating this vehicle, read all the instructions for safe assembly and
operations. User's manual can guide you through the functions and usage of Electric
scooter. Before using this Electric scooter, familiarize yourself with how to operate, so
that you can keep the Electric scooter in the best condition possible.
This appliance can be used by children aged from 14 years and above and persons
with reduced physical, sensory, or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
The appliance is only to be used with the power supply unit provided with the
appliance. This appliance contains batteries that are not replaceable.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEL-10360DONAR and is the answer not in the manual?

Questions and answers

Related Manuals for Denver SEL-10360DONAR

Summary of Contents for Denver SEL-10360DONAR

  • Page 1 Original manual SEL-10360DONAR facebook.com/denver.eu March/2023 - Version 1.0 IMPORTANT! Read carefully and keep for future reference. Before operating this vehicle, read all the instructions for safe assembly and operations. User’s manual can guide you through the functions and usage of Electric scooter.

  • Page 2: Table Of Contents

    Table of Contents 1. Important information before use ......................3 2. Product overview ............................5 3. Unfolding and folding the scooter ......................7 4. Assembling the device ..........................10 5. Charging the scooter ..........................12 6. Intended Use ............................13 7.

  • Page 3: Important Information Before Use

    1. Important information before use We urge owners of this Scooter to charged and store it in a safe way. For safety reason and protect battery life, never charge the electric scooter in temperatures below 5 °C or above 45 °C. Equally, always disconnect the electric scooter with the power cable once fully charged.
  • Page 4  Tyre equipment  Anti-slip equipment  Frame structure Always make sure that required maintenance is conducted professionally by certified agents. 1.2 Traffic rules - Do not ride the scooter if you are below 14 years of age. - Do not ride the scooter with more than 1 person at a time. - Do not ride the scooter faster than 20 km/h.

  • Page 5: Product Overview

    2. Product overview 1. Brake lever for drum 7. Front reflector brake 8. Side reflector 2. Front light 9. Foldable stand 3. Throttle 10. Rear light/reflector 4. Display 11. License plate area 5. Electric brake 12. Charging port 6. Folding mechanism...
  • Page 6 Accessories: 1. Power charger: FY0634201500 2. T-shaped Allen key for mounting the screws. 3. Screws for mounting front steer (6 pcs).

  • Page 7: Unfolding And Folding The Scooter

    3. Unfolding and folding the scooter Unfolding 1. Release the front pole from the hook. 2. Raise the handle slowly.
  • Page 8 3. Lock the folding mechanism. Presse the folding handle onto the front pole until it is locked. Pull the folding handle to confirm that it is locked. Folding Press the small ball shaped button as shown below to release the lock. Pull out the folding handle and now you can lower the front pole.

  • Page 10: Assembling The Device

    4. Assembling the device Mounting the front steer. 1. Connect below cable tightly 2. Lower the cable inside the tube and carefully lower the steet without getting the cable stuck.
  • Page 11 3. Mount the 6 screws with the included allen key. Tighten them well.

  • Page 12: Charging The Scooter

    5. Charging the scooter Connect the supplied power adaptor to the charging port of the electric scooter. 1. Open the rubber flap. 2. Plug the power plug adaptor into the charging port. 3. Fasten the rubber flap after charging to avoid dirt or water to enter. Please make sure only to use the original power adaptor when charging.

  • Page 13: Intended Use

    6. Intended Use The Electric scooter is to be used by a person aged at least 14 with a maximum weight of 100 kg. The other parameters for the permissible operation of the Electric scooter are defined in the section (“10. Specification”). Importantly, the Electric scooter may only be operated in good visibility conditions and only if the physical conditions for stability on the Electric scooter are met (for example, not on one leg/not under the influence of drugs or alcohol).

  • Page 14: Maintenance

    Avoid applying too much force, stepping on or lifting scooter in the rear fender. This may cause the fender to loosen or damage the fender. This is not covered by the warranty. Avoid constant braking. As a result, the tires will not only wear off, but also become hot. This will soften the rubber and it will no longer have the same grip on the road as usual.
  • Page 15 Battery maintenance All batteries have a life cycle, and performance will decrease over time, however, here are some advice to maximize the life span of the battery. Make sure that the battery is charged at regular intervals, even if you do not use the electric scooter for a long time.
  • Page 16 Bearings and screws: The electric scooter has sealed and dustproof bearings so that no lubrication is required. Check the bearings for wear at regular intervals to avoid unsafe riding. Do not jump on and off and do not apply excessive force otherwise to avoid damage to the bearings. This is not a sports electric scooter.
  • Page 17 Folding mechanism – 15Nm Front pole – ≥4Nm...
  • Page 18 Brakes: Check the brake for wear at regular intervals to avoid unsafe riding. Do not apply excessive force to avoid damage to the brake. Avoid using electric scooter when brakes are worn down, as this is unsafe and will also damage the brake.

  • Page 19: Operational Control

    9. Operational control For better operation, please read the instructions carefully. 9.1 Control and display 1. Service mode / error condition. Scooter failure. Please contact support. 2. Distance km/mile. Show when turning scooter on. 3. Lights front and back on symbol. 4.
  • Page 20 9.2 Button and speed transfer Power on / Power off Press and hold power button for few seconds and display turn on. Press one time to activate or deactivate front and rear light. Quick press two times to change gear. L = First gear 6 Km/h.
  • Page 21 9.3 Brakes The scooter is built with 2 separate brakes. 1. Electronic brake 2. Drum brake Breaking techniques: If needing to brake, then we recommend doing it this way. First release the throttle and then press the electronic brake. If harder braking is needed, then use the drum brake. WARNING The braking distances will be extended during wet weather.

  • Page 22: Specification

    Max Speed: 20 km/h Weight: 17kg Year Of manufacture: 2023 Max Vehicle Payload: 100kg Battery: 36.5V/7.8Ah Power Consumption: ≤ 350W Always charge the electric scooter with the supplied power adaptor: FY0634201500 Denver Electronics International A/S Omega 5A Soeften DK-8382 Hinnerup, Denmark www.denver.eu...

  • Page 23: Warnings

    11. Warnings Risks of riding WARNING First, learn safe riding before you ride the Electric scooter fast. Failure to observe, loss of control, falls, and violations of the rules can cause injuries. Wear a helmet and protective clothing when riding the Electric scooter. Read the operating instructions carefully before riding the Electric scooter.
  • Page 24 Avoiding damage due to overload. ● Maximum Vehicle Payload : 100kg. WARNING Do not try to make a turn too fast. WARNING Lithium battery inside. WARNING If the Electric scooter switches off, the system will block the vehicle automatically. It can be released again by pressing On/Off. Use the device only at temperatures between -10 °C and +45 °C.
  • Page 25 Children below 14 years, elderly people, and pregnant women are not allowed to ride ● the vehicle. People with limited sense of balance are not allowed to ride the Electric scooter. ● Avoid riding the Electric scooter under the influence of alcohol or other substances. ●...
  • Page 26 Using a different charger may cause damage to the device and other potential risks. ● Use the mains adapter to plug the DC input of the device into a conventional socket. ● There will green light on the charger before charging, when connected to scooter the ●...

  • Page 27: Other Warnings

    14. Other warnings WARNING Make sure that neither water nor other liquids penetrate the inner components of the Electric scooter; otherwise, the electronics/batteries of the device could be permanently damaged. There is a risk of injury. CAUTION Do not open the electric scooter casing, otherwise the warranty is void. ●...
  • Page 28 - In any case, anticipate your trajectory and your speed while respecting the code of the road, the code of the sidewalk and the most vulnerable. - Notify your presence when approaching a pedestrian or cyclist when you are not seen or heard.
  • Page 29 Please notice - All products are subject to change without any notice. We take reservations for errors and omissions in the manual. ALL RIGHTS RESERVED, COPYRIGHT DENVER ELECTRONICS INTERNATIONAL A/S Electric and electronic equipment and included batteries contains materials, components...
  • Page 30 The engine in the rear wheel will this way help to activate the charging function and it will charge normally. (Full charge takes 5.5 hours if using this way) Please enter: www.denver.eu to obtain the electronic version of the manual.
  • Page 31 WARNINGS Please read the manual completely and the instructions below before using the product. Product names: SEL-10360DONAR Product type: Electric scooter Year of manufacturing: 2023 • Note: ONLY use the supplied charger labelled FY0634201500 with the following output voltage to charge this Electric scooter: 42V –...
  • Page 32 Torben Balmer Position: Company: DENVER A/S Address: Omega 5A, Soeften, DK-8382 Hinnerup, Denmark Date: 14 April 2023 Denver Electronics International A/S | Omega 5A | 8382 Hinnerup | Denmark Phone: +45 86 22 61 00 | E-Mail: contact@denver.eu | Web: www.denver.eu...
