Summary of Contents for Pottinger CAT NOVA 260 T ED

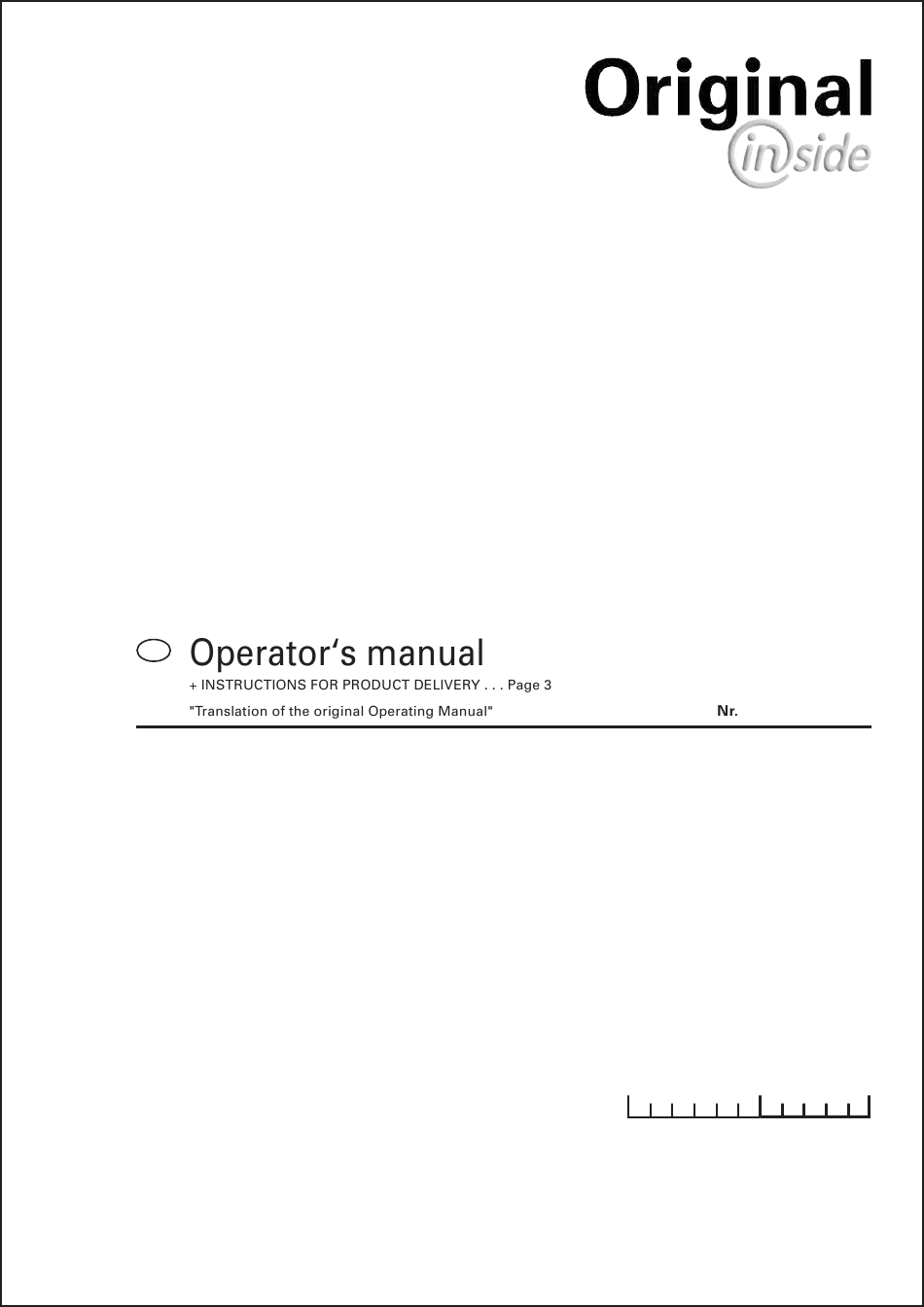

  • Page 1 99 352.GB.80I.0 CAT NOVA 260 T ED (Type PSM 352 : +..01001) Disc mower Ihre / Your / Votre • Masch.Nr. • Fgst.Ident.Nr.
  • Page 2 Dear Farmer You have just made an excellent choice. Naturally we are very happy and wish to congratulate you for having chosen Pöttinger. As your agricultural partner, we offer you quality and efficiency combined with reliable servicing. In order to assess the spare-parts demand for our agricultural machines and to take these demands into consideration when developing new machines, we would ask you to provide us with some details.
  • Page 3 INSTRUCTIONS FOR Dokument PRODUCT DELIVERY PÖTTINGER Landtechnik GmbH Industriegelände 1 A-4710 Grieskirchen Tel. 07248 / 600 -0 Telefax 07248 / 600-2511 According to the product liability please check the above mentioned items. Please check. Machine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and operating devices at hand.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS Attention! WARNING SIGNS CE sign ..................................... 5 Meanings of warning signs............................... 5 ATTACHMENT Attaching the machine ..............................6 Connecting the hydraulics ..............................6 Connecting the electrics..............................6 Check driving motor speed ............................. 7 Correct drive shaft ................................7 Drive shaft length ................................
  • Page 5: Ce Sign

    The CE sign, which is affixed by the manufacturer, indicates outwardly that this machine conforms to the engineering guideline regulations and the other relevant EU guidelines. EU Declaration of Conformity (see Supplement). By signing the EU Declaration of Conformity, the ma- nufacturer declares that the machine being brought into service complies with all relevant safety and health requirements.
  • Page 6: Attachment Attaching The Machine

    Important - At least one double-action (11) and - one single-action (10) hydraulic connection must be available on the tractor. - Connect hydraulic lines to tractor: - Feed hydraulic lines through cable routing (13). - Insert plug-in connections of hydraulic lines. 62-00-14 - Starting position: Park machine on the support stand (7) on level...
  • Page 7: Check Driving Motor Speed

    (at the tractor) 1000 rpm = standard driving motor speed The pivoting gear (SG) has been factory set for operation with this rpm (delivery condition). 540 rpm When only this driving motor speed (540 rpm) is possible on the tractor, the gear (SG) must be removed and installed again in reverse.
  • Page 8: Transport

    TRANSPORT Changing from work to transport position Transporting on public roads • Safety advice: see Supplement A1, pts. 1, 3, 4 and • Safety advice: see Supplement A1, pts. 1, 3, 4 and 6-9. 6-9. • Danger of injury can occur if machine swings out 1.
  • Page 9: Operation

    OPERATION 5. Keep away when motor is running Important points before starting work Safety advice: After the first hours of operation see Supplement A1, pts. 1-4 and • Retighten all knife screw fittings. 6-8. 1. Check bsb 447 410 - The cutter condition and fixture - Keep people out of the danger area as injury - The mower disc for damage (see chapter „Main- can occur through out-thrown foreign bodies.
  • Page 10: Caution When Turning On Slopes

    OPERATION Safety advice Caution when turning on slopes! • Mount accompanying ballast weights onto left wheel bearer of mower unit (these components are optional with some types, Danger of tipping exists see Spare Parts List also) when turning left • When turning left reduce speed accordingly. when mower unit is positioned downhill •...
  • Page 11: Adjusting The Machine

    OPERATION Adjusting the machine (from 2003 / 2 model) 1. Adjust cutter bar bearing pressure on main springs (3) - Preset in the factory: 150 kg - see table 2. Adjust skid bearing pressure at the spindle (4) 155-03-03 - Decrease bearing pressure: turn screw (4) to the right. - Increase bearing pressure: turn screw to the left.
  • Page 12 OPERATION 3. Adjusting swath width 5. Adjusting processor angle (Baujahr: + 1998) - Loosen swath board (12) with clamping leaver The gap between the beating arm and rotor is adjusted using the (13). hand lever. - Adjust swath board by shifting clamping lever. Through this the processing effect can be changed.
  • Page 13: Changing From Transport To Work Position

    OPERATION 4. Folding down side guard rails (9) in work position Changing from transport to work position - Remove linch pin (10). • Danger of injury from out-swinging machine: - Fold down guard rail. - Note free swivel area. 1. Swivel out •...
  • Page 14: Long Swath Board

    OPERATION 5. Adjusting cutting height Long swath board Setting: Lift mower unit hydraulically (H1) The left standard swath board (SB) can be replaced by a longer one (SB – 1). By doing so the swath width (S1) can be reduced. Problem: In difficult working conditions (long, heavy grass) the longer swath board (SB-1) may lead to clogging.
  • Page 15: Placing Out Of Service

    OPERATION Electrics Placing out of service - Pull out plug. • Safety advice: see Supplement A1, pts. 1 and 8 Hydraulics - Park machine only on firm level ground. - Disconnect hydraulic lines from tractor and insert into holder. Parking the machine - Remove spring pin form support stand.
  • Page 16: Swath Formation To The Side

    OPERATION Swath formation to the side • Danger of accident when swinging the machine out: - Pay attention to free swivelling range. - Crushing and cutting points within swivelling range of swatch board. Adjusting swath board 1. Swing drawbar out into working position 2.
  • Page 17: Variation "Extra Dry" System

    OPERATION Variation "Extra dry" system Note The settings listed Swathes below are to be understood as basic settings. 1. Set the positions of the guiding plates Because of the - see diagram various types of crops, an optimum setting of the guiding plates can possibly first be ascertained when...
  • Page 18: Maintenance

    MAINTENANCE Safety point Parking in the ope Safety points! • Turn engine off when adjustment, service and repair When parking in the open for work is to be done. long periods of time, clean • Turn engine off piston rods and then coat when adjustment, with grease.
  • Page 19: Roller-Type Conditioner

    MAINTENANCE After the first hours of operation Roller-type conditioner Adjustment: 60 mm - Retighten all screws. Lubrication: 50 - Above all, check wheel nuts and cutter left and right screws. • Always maintain the specified tyre pressure (2 bar). • Check or adjust V-belt tension. - After changing V-belts: - Basic adjustment: Disc (1) to approx.
  • Page 20: Every 50 Hours Of Operation

    MAINTENANCE Fill check raised 10 cm Every 50 hours of operation - Grease all grease nipples according to lubrication chart. - Grease both drive shafts in machine (see lubrication chart): Take sliding sections apart and grease well. 1. Lift one side of the mower bar (10 cm) and support. •...
  • Page 21: Gearing

    MAINTENANCE Gearing - Change oil after the first 50 hours of operation. - Under normal operating conditions, oil is to be topped-up annually. - Change oil after 300 ha at the latest. Starting transmission TD 24/95/49a Fill with oil: HD SAE 90 1,6 Liter (III) Full amount: 1,6 litres: SAE 90...
  • Page 22: Garaging

    MAINTENANCE Garaging - Thoroughly clean machine. - Grease all greasing points according to lubrication chart. - Put up weather protection. Protect exposed parts from rust. • Danger of imbalance: - Always install cutters in pairs. Installing cutters (6) - Replace in pairs all unevenly worn or bent cutters. - Cutters worn on one side can be turned around and used again.
  • Page 23 (IV) (IV) 62-00-10 HD SAE 90 HD SAE 90 1,2 Liter 1,6 Liter (III) (III) 0000 voitelukaavio (353).P65 - 23 -...
  • Page 24 Poikittaisella kuljetushihnalla varustetut koneet Machines met zijafvoerband Öljynvaihto 2 vuoden välein (tai kork. 4000 ha) oliewissel om de twee jaren of na 4000 hectares Machines avec tapis groupeur d’andains Maszyny z bieøniπ poprzecznπ Vidanger l’huile tous les 2 ans (ou max. 4000 ha) Wymiana oleju co 2 lata (lub max.
  • Page 25: Lubrication Chart

    FETT Schmierplan Plan de graissage Lubrication chart alle 8 Betriebsstunden Toutes les 8 heures de service after every 8 hours operation alle 20 Betriebsstunden Toutes les 20 heures de service after every 20 hours operation 40 F alle 40 Fuhren 40 F Tous les 40 voyages 40 F...
  • Page 26 Zusammenbauanleitung Aufbereiter, Rotor • Zinken (2) immer paarweise auswechseln (Unwuchtgefahr) Crimper, Rotor Montagevejledning Conditionneur, Rotor • Udskift altid tænderne (2) parvist (risiko for ubalance) Conditioner, Rotor Instructions de montage Kneuzer, Rotor • Changer toujours les doigts (2) conditionneur deux par deux. (Risque de déséquilibre). Acondicionador, rotor Mounting instructions Подготовительное...
  • Page 27 CAT NOVA 260 T (Type PSM 352) 0° 0° 45° 45° 90° 90° 135° 135° 180° 180° 225° 225° 270° 270° 315° 315° 352.31.025.0 CAT NOVA 310 T CAT NOVA 3100 T (Type PSM 353) (Type PSM 3531) 0° 0° 45°...
  • Page 28: Technical Data

    TECHNICAL DATA Technical data CAT NOVA 260 T Cutter bar General Cutting width ............. 2560 mm Length (transport) ............5180 mm No. of mowing discs ............... 5 Width (transport) ............3000 mm Cutters per mowing disc ............2 Height (transport) ............1910 mm Cutting height ............25-120 mm Length (work) .............
  • Page 29: Supplement

    SUPPLEMENT GB-Anhang Titelblatt _BA-Allgemein...
  • Page 30 The original cannot be copied ... Things will run better with genuine Pöttinger parts • Quality and precise fitting The decision must be made, ”original” or ”imitation”? The decision is often governed by price and a ”cheap buy” can sometimes be very expensive. - Operating safety.
  • Page 31: Recommendations For Work Safety

    Recommendations for work safety SUPPLEMENT - A Recommendations for work safety 6.) Transport of persons prohibited All points refering to safety in this manual are indicated a. The transport of persons on the machine is not permitted. by this sign. b.
  • Page 32: Driveshaft

    DRIVESHAFT Supplement - B Matching driveshaft to tractor Rules for working To determine the actual length required, hold the two Never exceed the maximum p. t. o. speed when using halves of the driveshaft side by side. the implement. Important! - When the p.t.o.
  • Page 33 DRIVESHAFT Supplement - B How a cam type cut out safety clutch works This overload clutch switches the torque transmitted to zero if overloaded. To revert to normal operation, stop the p.t.o. drive briefly. The clutch reengages at a speed below 200 rpm. IMPORTANT! Re-engaging is also possible by decreasing the p.t.o.
  • Page 36: Air Pressure

    WHEELS AND TYRES General Attention! Check regularly that wheel nuts are firmly tightened ( see table for screw starting torque)! Check regularly that wheel Attention! nuts are firmly tightened ( see After the first 10 hours of operation retighten wheel table for screw nuts.
  • Page 37: Taper Bushes Installation Instructions

    TAPER BUSHES Taper bushes installation instructions To assemble 1. Clean and degrease the bore and taper surfaces of the bush and the tapered bore of the pulley. 2. Insert the bush in the pulley hub and line up the holes (half thread holes must line up with half straight holes).
  • Page 38: Turn Gearing Round

    TURN GEARING ROUND - Support drawbar (2). Preparation • Safety advice: see Supplement A1, pts. 1- 3 and 8. • Only lift loads using lifting equipment with sufficient load capacity dimensions and stability. Setting required driving motor speed Possible are: - 540 r.p.m.
  • Page 39 TURN GEARING ROUND - Change oil filler connections (4) round: - Screw up the gearing with the drawbar (2), the cable routing (6) and the support stand holder (7). - Screw out connections and screws opposite (5) and screw in reversed. TD24/95/10 - Swing support stand (8) down and secure : Pos U With turned-round gearing (11) the oil fill connections (4)
  • Page 40: Power Supply

    FIRST-TIME CONNECTION TO TRACTOR Power supply Required fitting to tractor • 3-pole power socket - Fix accompanying 3-pole power socket to the rear of the tractor - Power supply through a relay (9) Relay is connected to the ignition switch (10). - Conductor diameter at least 2,5 mm - Fuse 16A (11) 3-POL...
  • Page 41 Schaltplan Schéma électrique Wiring schematic 1,5bl 1,5br 1,5bl 1,5br 1,5bl 1,5br 1,5bl 1,5br - F41 - 9700-D ELEK-SCHALTPLAN (352)
  • Page 42 Appendix 1 EC Certificate of Conformity conforming to EEC Directions 98/37/EG ALOIS PÖTTINGER Maschinenfabrik Gesellschaft m.b.H. We ______________________________________________________________________ (name of supplier) A-4710 Grieskirchen; Industriegelände 1 __________________________________________________________________________________ (full address of company - where this concerns authorized agents within the Common Market, also state the company name and manufacturer) declare in sole responsibility, that the product Disc mower CAT NOVA 260 T conditioner,...
  • Page 43 Im Zuge der technischen Weiterentwicklung La société PÖTTINGER Landtechnik GmbH Following the policy of the PÖTTINGER arbeitet die PÖTTINGER Landtechnik améliore constamment ses produits grâce Landtechnik GmbH to improve their products GmbH ständig an der Verbesserung ihrer au progrès technique. as technical developments continue, Produkte.
  • Page 44 PÖTTINGER Landtechnik GmbH A-4710 Grieskirchen Telefon: +43 7248 600-0 Telefax: +43 7248 600-2513 e-Mail: info@poettinger.at Internet: http://www.poettinger.at PÖTTINGER Deutschland GmbH Verkaufs- und Servicecenter Recke Steinbecker Strasse 15 D-49509 Recke Telefon: +49 5453 9114-0 Telefax: +49 5453 9114-14 e-Mail: recke@poettinger.at PÖTTINGER Deutschland GmbH Servicecenter Landsberg Spöttinger-Straße 24 Postfach 1561...
