Summary of Contents for FuturaSun UZ ENERGY L051100-A

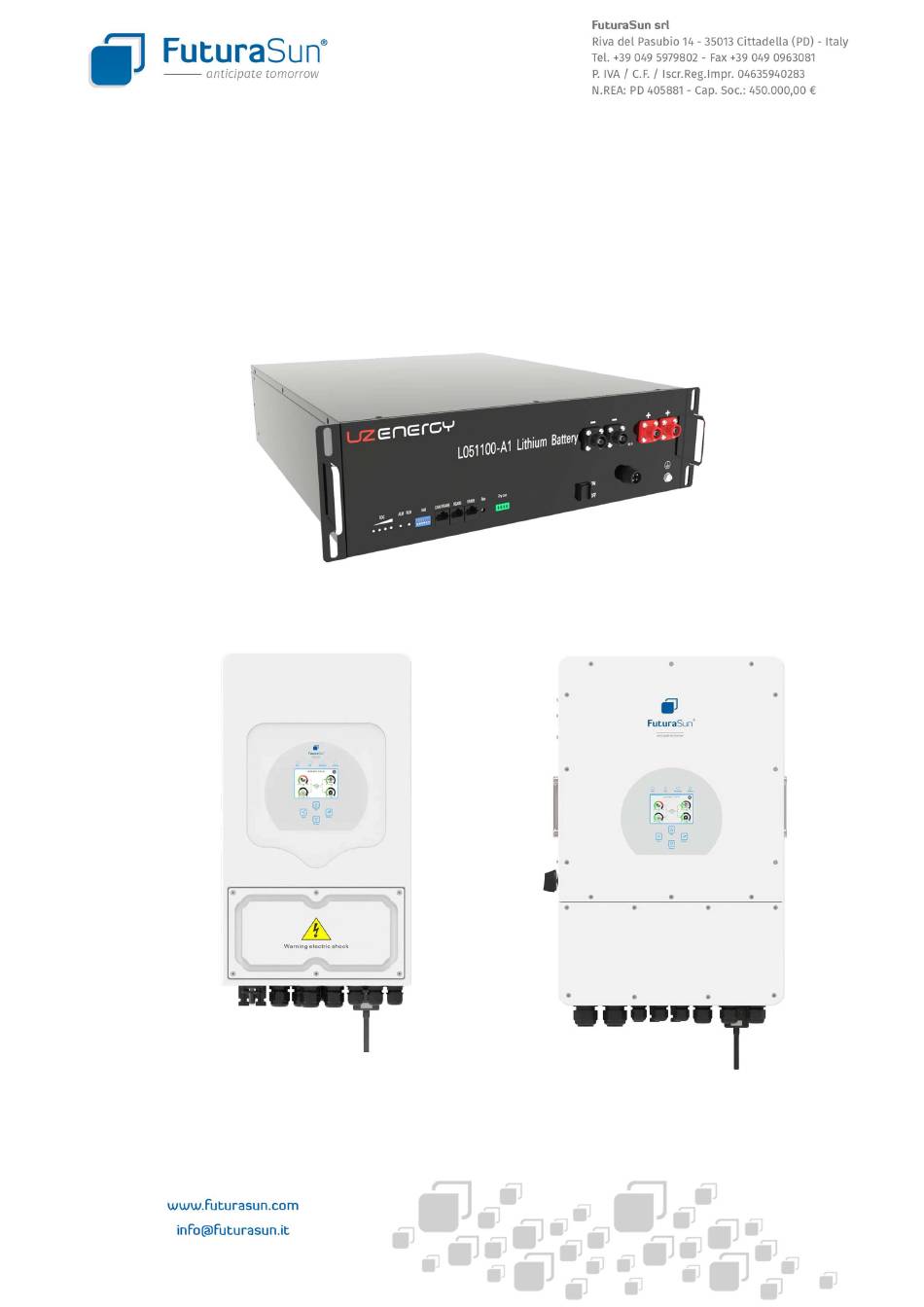

- Page 1 INSTALLATION MANUAL UZ ENERGY L051100-A / L051100-A1 BATTERIES AND COMBINATION WITH OPTOR SINGLE / TRI V 2023.06-MM - 1 -...
-
Page 2: Table Of Contents
CONTENTS PRELIMINARY INFORMATION ..............................3 GENERAL INFORMATION ................................. 4 ENVIRONMENTAL INSTALLATION CONDITIONS ........................4 INTRODUCTION ..................................5 PRODUCT SPECIFICATIONS ..............................7 INSTALLATION ..................................10 HORIZONTAL INSTALLATION - H100 ..........................10 FLOOR INSTALLATION - C100 ............................. 11 FLOOR INSTALLATION - C300 ............................. 13 WIRING .................................... -
Page 3: Preliminary Information
PRELIMINARY INFORMATION The manufacturer of POWER LITE batteries is: Shenzhen UZ Energy Limited 15/F Tower 3, Excellence City No.128 Zhongkang Rd Shenzhen – China www.uzenergy.com To obtain the latest version of the installation manual in the translated languages, visit www.uzenergy.com/ ATTENTION: Read the entire manual carefully before installing or using Power Lite batteries. -
Page 4: General Information
GENERAL INFORMATION WARNING: Read the entire manual carefully before installing or using Power Lite batteries. Failure to do so or to comply with the instructions and warnings in this document may result in electric shock, serious injury and/or death, or may result in damage to the Power Lite batteries, making them unusable. WARNING: A battery can be a source of electric shock, fire or explosion caused by the gases emitted. -
Page 5: Introduction
INTRODUCTION UZ PowerLite L051100-A and L051100-A1 batteries are modules with a capacity of 5.12 kWh and the integrated controller allows the management of several modules connected in parallel. This manual provides information on how to use the batteries and on the safety precautions to prevent possible accidents. Therefore, please read this manual carefully and keep it handy in case of need. - Page 6 2. Do not install the batteries upside down or on their side as they could fall, which could result in damage to the batteries and injury to the users To avoid damage to the batteries during transport and/or handling, leave them in their original packaging until installation. Make sure that the mechanical installation follows the instructions in this manual in order to avoid damage or injury.
-
Page 7: Product Specifications
PRODUCT SPECIFICATIONS Battery model L051100-A L051100-A1 Technology Lithium Iron Phosphate - LiFePO4 (LFP) Capacity 100 Ah Rated voltage 51.2 V (3.2 V single cell) Operating voltage range 44.8 V-57.6 V Rated energy 5,12 kWh Discharge depth 100 % Maximum charge/discharge power 2,56 kW / 5,12 kW Short circuit current 210 A... - Page 8 L051100-A - FRONT VIEW REF. NAME MODEL NOTES 4 SOC LED ALARM LED OPERATION LED DIALER COMMUNICATION PORT RJ11 RS 232 for communication with PC COMMUNICATION PORT x 2 RJ45 CAN for inverter, RS485 for internal communication RESET DRY CONTACT ON/OFF SWITCH NEGATIVE INPUTS PSR6XAB...
- Page 9 L051100-A1 - FRONT VIEW REF. NAME MODEL NOTES 4 SOC LED ALARM LED OPERATION LED DIALER COMMUNICATION PORT RJ45 CAN for inverter, RS485 for internal communication COMMUNICATION PORT x 2 RJ45 RS485 for internal communication RESET DRY CONTACT ON/OFF SWITCH NEGATIVE INPUTS PSR6XAB Black 25 mm...
-
Page 10: Installation
INSTALLATION Power Lite batteries can be installed horizontally or fixed to the wall using the appropriate mounting accessories. In both cases, the floor or wall must be able to support the full weight of all batteries and other equipment present. For fixing, only use the original accessories supplied. -
Page 11: Floor Installation - C100
The batteries require the following free space for ventilation and maintenance The maximum permissible inclination is as follows: +/- 2 degrees from right to left side +/- 5 degrees from front to rear FLOOR INSTALLATION - C100 - 11 -... - Page 12 The batteries require the following free space for ventilation and maintenance The maximum permissible inclination is as follows: +/- 2 degrees from right to left side +/- 5 degrees from front to rear - 12 -...
-
Page 13: Floor Installation - C300
FLOOR INSTALLATION - C300 The batteries require the following free space for ventilation and maintenance The maximum permissible inclination is as follows: +/- 2 degrees from right to left side +/- 5 degrees from front to rear - 13 -... -
Page 14: Wiring
WIRING Depending on the type of installation selected, it will be necessary to use the appropriate connection cables, which are not supplied with the individual battery module package ARTICLE SPECIFICATIONS QUANTITY IMAGE NOTES Negative and positive power cables Length: 18.5 cm Cross-section 25 CA 01 For rack... - Page 15 ARTICLE SPECIFICATIONS QUANTITY IMAGE NOTES Negative and positive power cables Length: 60 cm For installation Cross-section 25 with CA 05 C100 CABLE KIT Black PARALLEL communication C300 cable between the batteries Length: 80 cm RJ45 double plug Negative and positive power cables Length: 150 cm Cross-section 25...
-
Page 16: Wiring Power Lite L051100-A
POWER LITE L051100-A WIRING SINGLE BATTERY WIRING MULTI-BATTERY WIRING FOR INVERTERS UP TO 100 A - 16 -... - Page 17 MULTI-BATTERY WIRING FOR INVERTERS ABOVE 100 A MULTI-BATTERY WIRING - COMMUNICATION CABLES (PCS = OPTOR HYBRID INVERTER) - 17 -...
-
Page 18: Dip Switch Settings Power Lite L051100-A
POWER LITE L051100-A DIP SWITCH SETTINGS - 18 -... -
Page 19: Wiring Power Lite L051100-A1
POWER LITE L051100-A1 WIRING MULTI-BATTERY WIRING FOR INVERTERS UP TO 100 A - 19 -... - Page 20 MULTI-BATTERY WIRING FOR INVERTERS ABOVE 100 A MULTI-BATTERY WIRING - COMMUNICATION CABLES (PCS = OPTOR HYBRID INVERTER) - 20 -...
-
Page 21: Dip Switch Settings Power Lite L051100-A1
POWER LITE L051100-A1 DIP SWITCH SETTINGS - 21 -... -
Page 22: Wiring Optor Single-Phase
WIRING OPTOR SINGLE-PHASE CONNECTION OF THE BATTERY POWER CABLES L051100-A L051100-A1 INVERTER - FIRST BATTERY COMMUNICATION CABLE CONNECTION WIRING OPTOR THREE-PHASE CONNECTION OF THE BATTERY POWER CABLES L051100-A L051100-A1 INVERTER - FIRST BATTERY COMMUNICATION CABLE CONNECTION - 22 -... -
Page 23: Parameter Settings For Optor Inverters
PARAMETER SETTINGS FOR OPTOR INVERTERS For the correct operation of UZ batteries with OPTOR inverters, the following parameters must be set in the inverter. BATT MODE: SELECT LITHIUM BATT CAPACITY: ENTER 100 Ah FOR EACH BATTERY. E.G. 4 BATTERIES = 400 Ah MAX A CHARGE: 50A x BATTERY NUMBER MAX. -
Page 24: Led Signalling
LED SIGNALLING The batteries are equipped with 6 LEDs: 4 green indicating the SOC, one red for alarm (ALM) and one green for RUN operating status. Please refer to the table below for the meanings. NORMAL / PROTECTION STATUS NOTES / ATTENTION STOP / HIBERNATION NORMAL... -
Page 25: Transport And Storage
TRANSPORT AND STORAGE During transport and/or handling, the batteries must not be subjected to strong vibrations, shocks or mechanical stress. Storage must be at: Ambient temperature between 10 °C and 30 °C Relative humidity between 20% and 80% The batteries must not be exposed to direct sunlight State of charge (SOC) between 55% and 65% (52.4 Vdc) If the batteries are kept in storage for a long time, the state of charge should be checked at least every 4 months to ensure that they are not excessively discharged. - Page 26 For further information or support, please write to: service.inverter@futurasun.it - 26 -...
