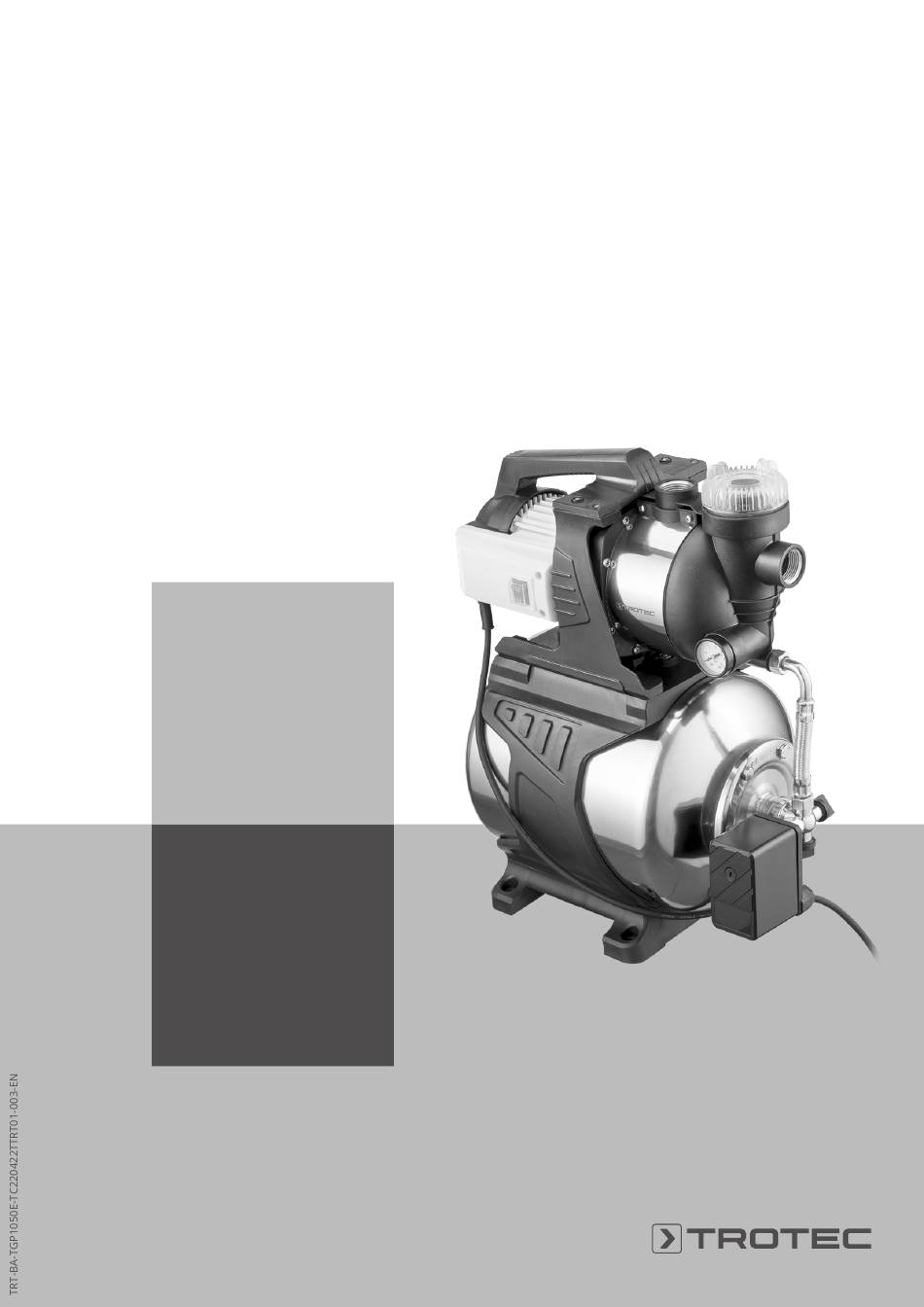

- Page 1 TGP 1050 E OPERATING MANUAL GARDEN PUMP...
-
Page 2: Table Of Contents
Technical annex. • Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition. garden pump TGP 1050 E... - Page 3 • Do not under any circumstances pump brine, aggressive liquids (alkalis, acids, etc.), combustible or explosive liquids (petroleum, petrol, etc.) or food (drinking water, etc.). garden pump TGP 1050 E...
- Page 4 • The device must not be used at freezing temperatures. Warning • Any unauthorised modifications, alterations or structural The device is not a toy and does not belong in the changes to the device are forbidden. hands of children. garden pump TGP 1050 E...
- Page 5 Switch the device off and let it cool down. Investigate the cause of overheating. Should the problem persist, please contact the customer service. garden pump TGP 1050 E...
-
Page 6: Information About The Device
Connection for pressure line with 1" internal thread Device depiction Water filler neck/prefilter Connection for suction line with 1" internal thread Water drain nozzle with screw plug Transport handle Pressure tank Pressure tank valve with protective cap Foot (with drill hole) pressure gauge garden pump TGP 1050 E... -
Page 7: Transport And Storage
• The smaller the delivery head of the pressure line and suction line, the higher the flow rate. • Connected accessories can cause a pressure loss and reduce the feed rate. garden pump TGP 1050 E... - Page 8 2. Connect the suction line to the suction connection (4). garden pump TGP 1050 E...
- Page 9 There is a risk of electric shock when filling the device with water. Before filling the device, always make sure that the mains plug has been removed. 1. Loosen the screw plug at the water filler neck by using the wrench (3) and unscrew it. garden pump TGP 1050 E...
-
Page 10: Operation
– the pressure in the system rises again and the switch-off pressure of 3 bar is reached. 5. Detach the pressure and suction line. 6. Clean the device according to the Maintenance chapter. 7. Store the device according to the Storage chapter. garden pump TGP 1050 E... -
Page 11: Errors And Faults
• Check the suction line and the connection for tightness. • Check whether the suction height is too high, and reduce it if necessary. garden pump TGP 1050 E... -
Page 12: Maintenance
This is brought to light e.g. by a reduced pump capacity (see chapter Errors and faults). 1. Loosen the screw plug at the water filler neck by using the wrench (3) and unscrew it. 2. Remove the prefilter (13). garden pump TGP 1050 E... -
Page 13: Technical Annex
500 (mm) Max. particle size 2 mm Pressure connection 1" internal thread Suction connection 1" internal thread Sound values according to EN ISO 3744:1995 Sound pressure level L 72 dB(A) Sound power level L 88 dB(A) Uncertainty K 2 dB(A) garden pump TGP 1050 E... - Page 14 Circuit diagram TGP 1050 E garden pump TGP 1050 E...
- Page 15 Overview of spare parts and spare parts list TGP 1050 E garden pump TGP 1050 E...
- Page 16 O ring Corrugated Gasket Mechanical pressure switch Motor Rear Cover Seal Gasket Outer Hex Bolt Seal Gasket Fan Blade Cross Fitting Circlip (Ø 12) Seal Gasket Fan cover Hose Screw Power Cable Terminal Box Holder garden pump TGP 1050 E...
-
Page 17: Disposal
35° garden pump TGP 1050 E... - Page 18 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
