Required Equipment:

• USB cable type AB
• PC utilizing one of the following Microsoft Windows
operating systems:
64-bit — Windows 7, 10
32-bit — Windows 7, 8, 10
• PilotTerm 1.008 or later installed on the PC
(PLMS Part No. 22718-11)
The latest version as of this writing is 1.012.
• The -11 AVB file to be loaded to the charger stored somewhere on the PC
(see this part number).

Procedure:

1. Turn ON the charger.
2. Attach the B-type end of the USB cable to the USB port on the charger.
Firmware is updated using the USB connector located in the top left corner
of the charger.
3. Attach the A-type end of the USB cable to a USB port on the PC running
Windows.
4. Run PilotTerm on the PC.
Part Number 5911110 A02 Page 62 of 112

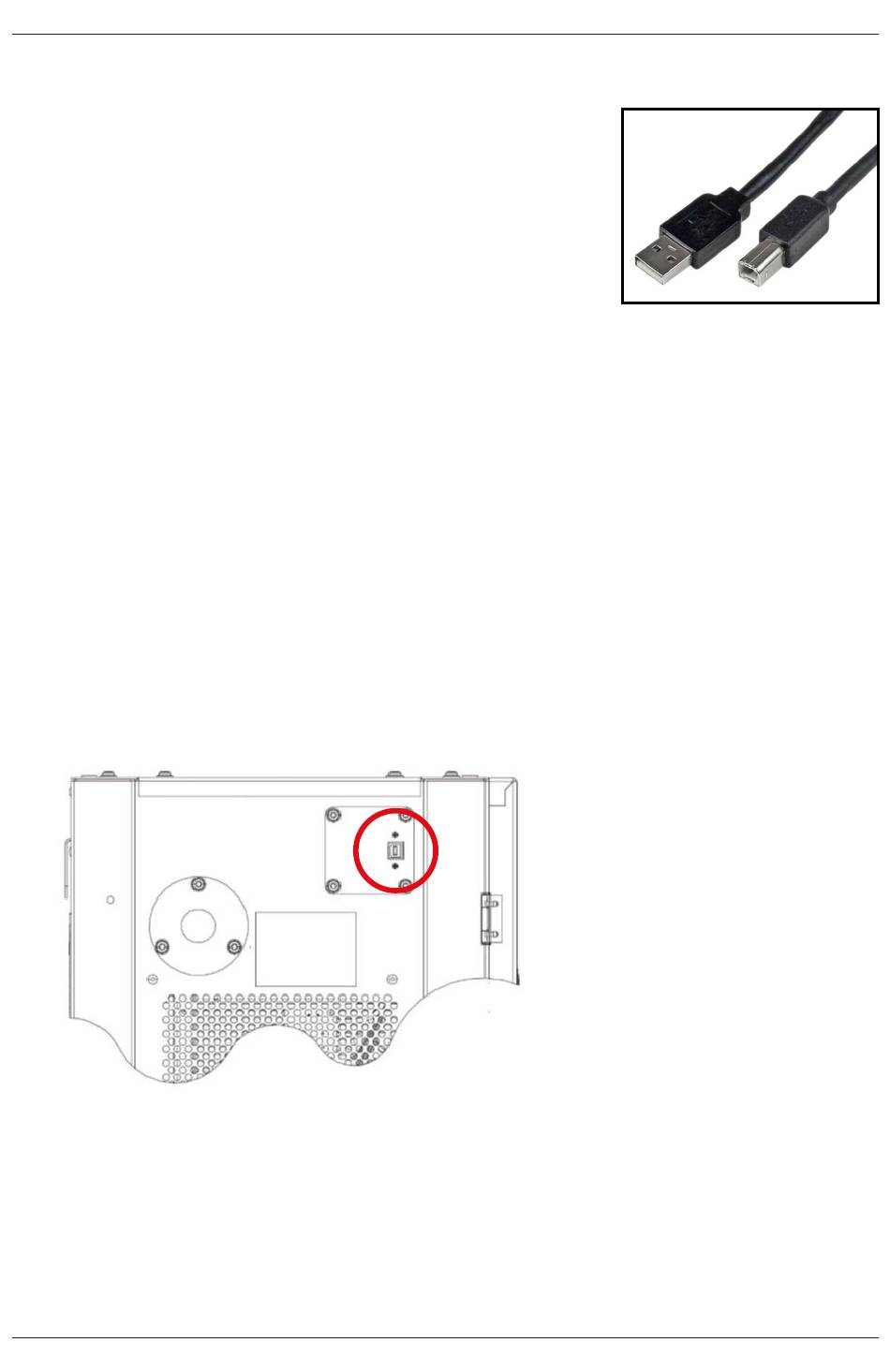

Fig. 33 – USB Cable AB
Fig. 34 – USB Connector
