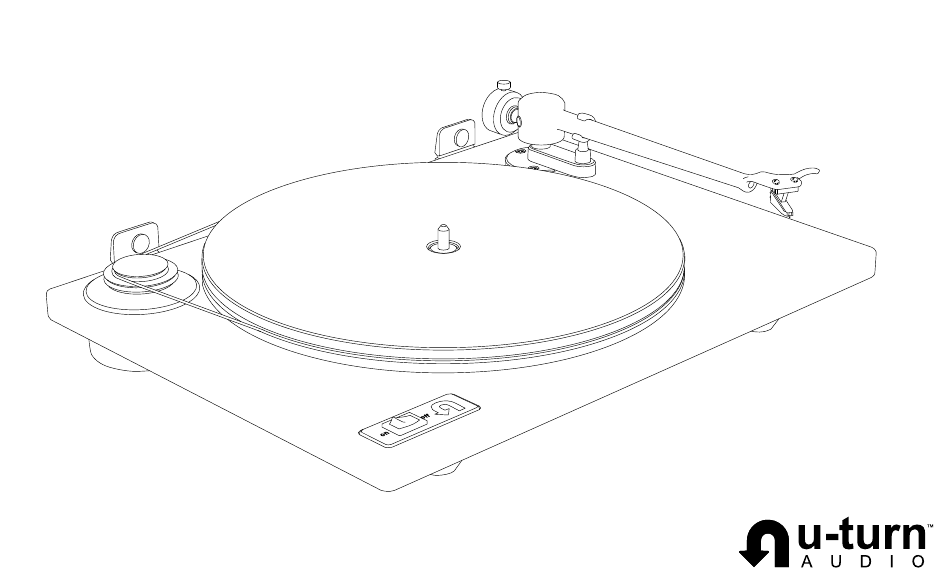

- Page 1 Orbit Turntable Setup Guide...
- Page 2 Getting started Place platter on spindle. Slide dust cover onto hinges. Connect power adapter to power jack. Connect RCA cables.
- Page 3 Installing the belt Wrap belt around pulley groove. Then hold belt Keeping your right hand in place, use your left hand along the platter’s back edge with your right hand. to guide the belt into the groove around the platter.
- Page 4 Changing speeds Manual speed change Electronic speed change (if equipped) Move belt to upper groove (33 RPM) or lower Change speeds (33/45 RPM) using the speed groove (45 RPM) to change speeds. control knob. 33 RPM 45 RPM...
- Page 5 Removing the stylus guard For Audio-Technica, Grado, and Ortofon OM5E: For Ortofon 2M Red and Blue: Pull cover forward until it slides off. Pinch tab then pull cover down. Stylus guard...
- Page 6 Connecting the turntable Using the built-in phono preamp (if equipped): If your turntable has no built-in preamp: Turn preamp on or off by pressing the bypass switch. Connect turntable to an external phono preamp Preamp is enabled when preamp LED is on. With or any amplifier or speakers with a dedicated preamp enabled, connect turntable directly to any phono input.
- Page 7 Adjusting Iso-Level Feet (if equipped) Position turntable on a stable surface. Place If the bubble is not centered, adjust the height of bubble level (included) anywhere on top of plinth. the feet to level turntable. Turn bottom of foot to raise or lower it.
- Page 8 Email You can view our full warranty policy at support@uturnaudio.com uturnaudio.com/warranty. Phone If you need warranty service, please (781) 451-1445 contact us at support@uturnaudio.com or by phone at (781) 451-1445. © 2023 U-Turn Audio, Inc.
