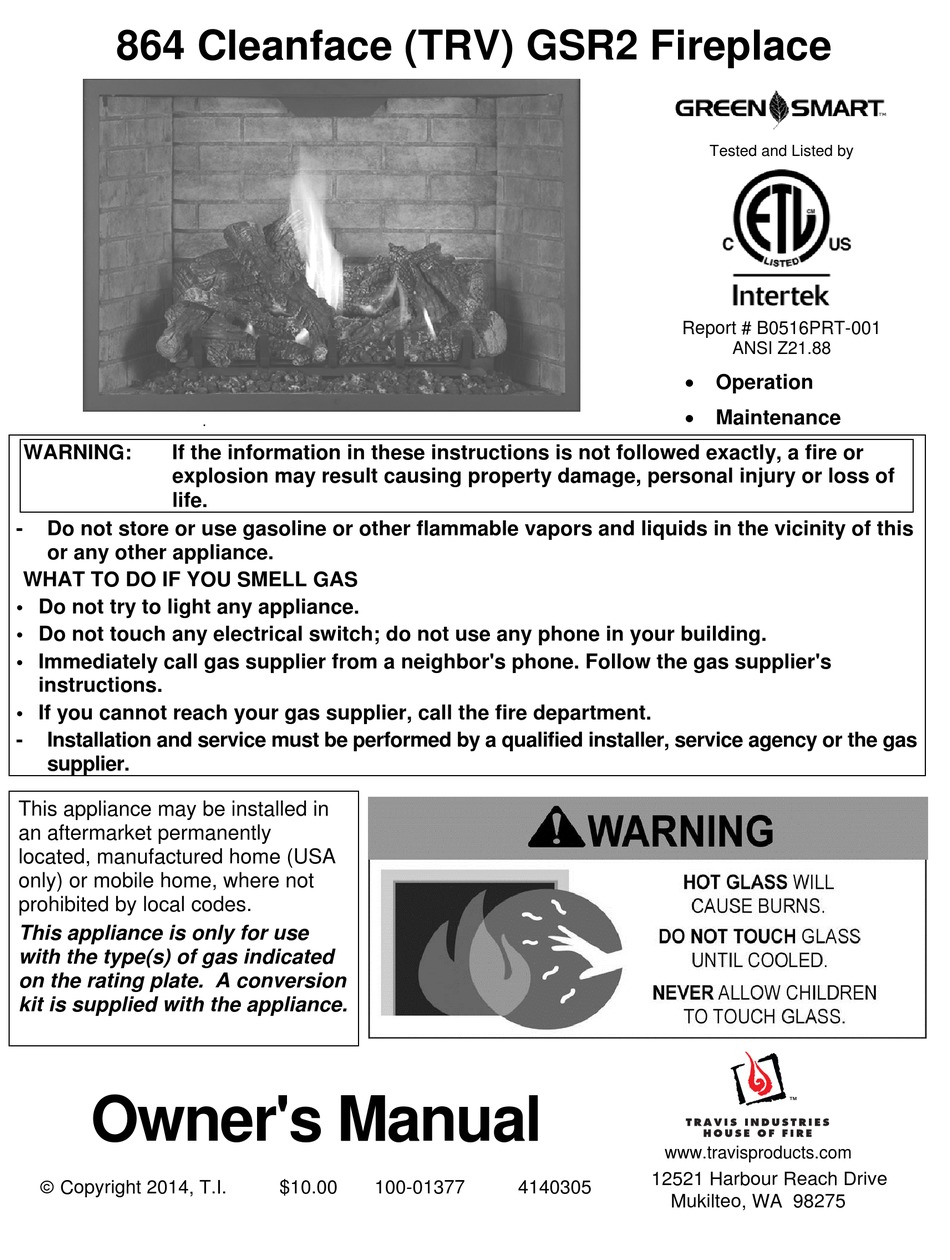

864 Cleanface (TRV) GSR2 Fireplace
WARNING:
If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Owner's Manual
 Copyright 2014, T.I.
$10.00
100-01377
Report # B0516PRT-001
 Operation
 Maintenance
www.travisproducts.com
12521 Harbour Reach Drive
4140305
Mukilteo, WA 98275
Tested and Listed by
ANSI Z21.88

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 864 Cleanface TRV GSR2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Travis Industries 864 Cleanface TRV GSR2

  • Page 1 864 Cleanface (TRV) GSR2 Fireplace Tested and Listed by Report # B0516PRT-001 ANSI Z21.88  Operation  Maintenance  WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2: Introduction

    This serial number may be needed in case you require Or, mail your warranty card to: service. Travis Industries House of Fire Model: 864 Clean Face GSR2 12521 Harbour Reach Drive...
  • Page 3: Table Of Contents

    Approximate Heating Capacity (in square feet)* 450 to 1,400 450 to 1,400 Maximum BTU Input Per Hour 31,000 31,000 Minimum BTU Input on Low 6,700 5,200 Heating capacity will vary with floor plan, insulation, and outside temperature. © Travis Industries 4140220 100-01348...
  • Page 4 Immediately call a qualified vicinity of this heater. service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water. © Travis Industries 4140220 100-01348...
  • Page 5 If the fiber logs become damaged, replace with Travis Industries media. Children and adults should be Travis Industries, Inc. grants alerted to the hazards of high no warranty, implied or stated, surface temperature and should for the installation or...
  • Page 6: Before You Begin

    Turn off the main gas supply to the appliance during appliance installation or maintenance. During appliance installation or maintenance or in case of remote control malfunction turn off the main gas supply. © Travis Industries 4140220 100-01348...
  • Page 7: Remote Set-Up

    TO THE APPLIANCE then press the PRG (Program) button for 10 seconds. The pilot will start to spark repeatedly, signifying all system memory has been cleared. The system will return to its original configuration: a remote will need to be synchronized; and, the system will operate under continuous pilot mode. © Travis Industries 4140220 100-01348...
  • Page 8: Location Of Controls

    If you wish to adjust the mode settings use the transmitter mode button to adjust the settings (see “Mode Controls” on page 12). The thermostat and burner on/off operating functions will not work on the transmitter. © Travis Industries 4140220 100-01348...
  • Page 9: Starting The Fireplace For The First Time

    IPI/CPI. NOTE: This icon appears when the appliance is in CPI mode. Press the "UP" button Press the "DOWN" button to activate CPI mode. to activate IPI mode. Figure 4 © Travis Industries 4140220 100-01348...
  • Page 10: Remote Operation

    NOTE: When the batteries start to get low, the IFC will beep twice whenever a button is pressed. When the batteries are nearly depleted, the IFC will no longer beep. See “IFC Batteries” on page 14). © Travis Industries 4140220...
  • Page 11: Manual On-Off / Smart Thermostat / Standard Thermostat

    Use the up or appear here. down buttons to adjust the target temperature. Figure 9 NOTE: If the transmitter batteries go dead while in thermostat setting (standard or smart), the appliance will shut off after approximately 24 hours. © Travis Industries 4140220 100-01348...
  • Page 12: Mode Controls (Flame, Blower, Light, Comfort Control)

    When in Manual Mode the blower will remain on, even if the burner is turned off and the heater cools. Either manually turn the blower off, or turn off the heater by pressing the On/Off button. © Travis Industries 4140220...
  • Page 13: Mode Controls - Continued

    (2 settings). darkened. Figure 14 Display Fahrenheit or Celsius  With the system in the “OFF” position, press both the MODE and THERMOSTAT buttons simultaneously to toggle between Fahrenheit (F) and Celsius (C). Figure 15 © Travis Industries 4140220 100-01348...
  • Page 14: Low Battery Indicator

    Figure 17 Power Outages The remote will work if household current (AC power) is disconnected. The batteries inside the battery box will continue to power the heater but the accent light and blower will not operate. © Travis Industries 4140220 100-01348...
  • Page 15: Child-Proof Feature

    This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 4140220 100-01348...
  • Page 16: Maintaining Your Fireplace's Appearance

    Monitor blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. Venting system should be examined by a qualified agency. © Travis Industries 4140220 100-01348...
  • Page 17: Screen Installation And Removal

    Remove the concealment cover. HINT FOR REPLACING THE SCREEN: Hold the screen at an angle and insert the bottom slots first. Then pivot the screen forward to engage the top hooks. © Travis Industries 4140220 100-01348...
  • Page 18: Glass Frame Removal And Installation

    Lift the glass frame slightly and attach the lower latches. NOTE: Make sure the glass frame is all the way in place - it should be flush with the front of the fireplace when installed. © Travis Industries 4140220 100-01348...
  • Page 19 Top of Firebox Glass Frame Anchor Note how the washer on the latch fits behind the flange on the glass frame anchor. Once fully inserted, turn the latch until it is upright. © Travis Industries 4140220 100-01348...
  • Page 20: Glass Cleaning

    The glass may be cleaned with a non- abrasive cleaner. To clean, remove the glass frame, place it on a non-scratching surface, and clean the inner and outer surface. WARNING: do not operate the fireplace without the glass frame in place. © Travis Industries 4140220 100-01348...
  • Page 21: Log Installation

    When installed, the ten (10) logs should appear as shown below. The directions on the following pages detail installation of this log set. Back Log Center Log Right Twig Left Log Center Left Twig Left Twig Center Twig Front Left Log Right Log Front Ember Chunk © Travis Industries 4140220 100-01348...
  • Page 22: Back Log

    The log straddles the burner and does not cover any burner holes. Right Log The right log has a channel on the bottom that fits over the grate. Place the log in place and slide it to the rear. © Travis Industries 4140220 100-01348...
  • Page 23: Front Left Log

    Left Log The left log has a channel on the bottom. Place this channel over the grate. When in place, make sure the log is positioned so it does not block any burner holes. © Travis Industries 4140220 100-01348...
  • Page 24: Center Twig

    (make sure it is not over any burner holes). Front Ember Chunk The front ember chunk has a groove on the bottom that fits over the grate. Place it as shown below. © Travis Industries 4140220 100-01348...
  • Page 25: Left Twig

    Make sure the twig is positioned so it does not cover any burner holes. © Travis Industries 4140220...
  • Page 26: Center Log

    Make sure the fork on the front of the log fits over the grate as shown below. Right Twig The right twig has a hole on the bottom that fits over the pin on the right log. Position the twig so it rests on the back log as shown below. © Travis Industries 4140220 100-01348...
  • Page 27: Ember Installation

    Use a stiff brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause sooting or other adverse conditions. © Travis Industries 4140220 100-01348...
  • Page 28: Troubleshooting Table

    The bulb may be burned out......... See “Accent Light Replacement” on page Accent Light Does The accent light fuse may be blown...... Not Work Replace the fuse. See fuse location below. Location of fuses: Lights © Travis Industries 4140220 100-01348...
  • Page 29: Wiring Diagram

    On/Off) Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person.
  • Page 30: Conditions & Exclusions

    2. Travis Industries has the option of either repairing or replacing the defective component. 3. If your dealer is unable to repair your appliance’s defect, he may process a warranty claim through TRAVIS INDUSTRIES, INC., including the name of the dealership where you purchased the appliance, a copy of your receipt showing the date of the appliance’s purchase, and the serial number on your appliance.
  • Page 31 Index © Travis Industries 4140220 100-01348...
  • Page 32 Starting the Fireplace for the First Time .... 9 Location of Controls ........... 8 Troubleshooting Table ........28 Log Installation ..........21 Wiring Diagram ..........29 Low Battery Indicator ........14 Yearly Service Procedure ........ 16 Maintaining Your Fireplace's Appearance ..16 © Travis Industries 4140220 100-01348...
