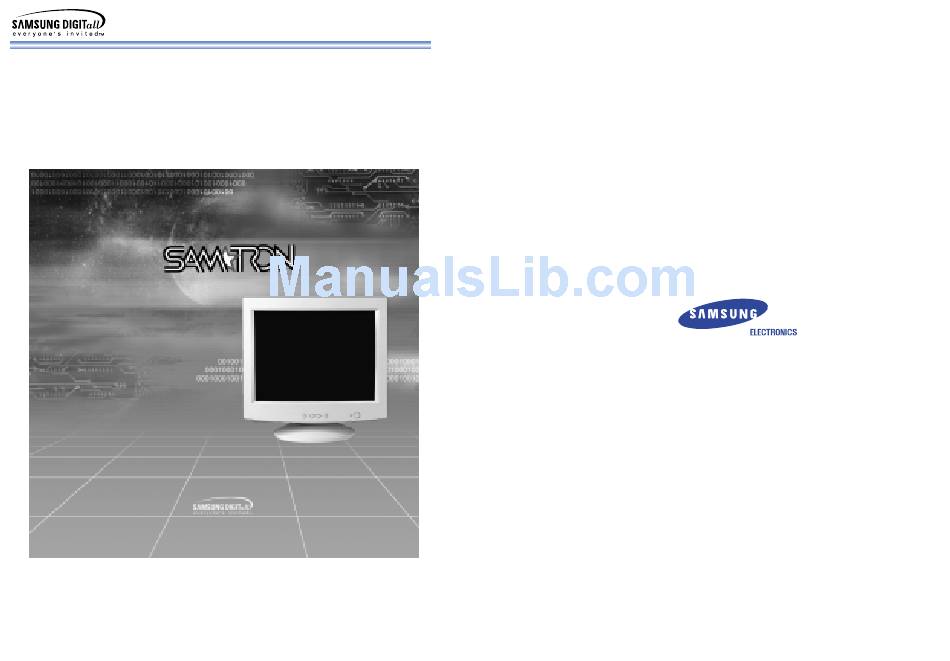

- Page 1 SAMTRON 56E/56V http://www.samsung-monitor.com http://www.samsungusa.com/monitor BH68-00434C-00...
-
Page 2: Table Of Contents
Contents Safety Instructions Unpacking Your Monitor Setting up Your Monitor Connecting Your Monitor Installing the Monitor Driver Automatic Manual Self-Test Feature Check Werning Messages Environment Useful Tips Adjusting Your Monitor User Controls Menu Features OSD Lock/Unlock Brightness Contrast H-Position V-Position... -
Page 3: Safety Instructions
18. Do not remove cover(or back). No user serviceable parts inside. 19. If your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service center. -
Page 4: Setting Up Your Monitor
Rear of Macintosh Rear of Monitor 1 Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. 2 Connect the end of the signal cable to your computer's video port (video board, video card or graphics card). -
Page 5: Manual
5. Click “Update Driver..” and select “Install from a list or..” then click “Next” button. 6. Select “Don't search ,I will..” then click “Next” and then click “Have disk”. 7. Click the “Browse” button then choose A:(D:\Driver) and choose your monitor model in the model list and click the “Next” button. -
Page 6: Microsoft ® Windows ® Millennium Operating System
3. In the “Change Display Type” window, click “Change” and then click “Have Disk”. 4. Click “browse..” button and specify A:\(D:\driver) and click “OK”. 5. In the Select Device window, click the appropriate monitor model and then click OK. 6. Continue choosing “Close” button and “OK” button until you close the “Display Properties”... -
Page 7: Self-Test Feature Check
If your monitor works normally, the following screen appears. Setting up Your Monitor Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears during normal operation if the video cable becomes disconnected or damaged. -
Page 8: Adjusting Your Monitor
Adjusting Your Monitor User Controls Exit button: Use this button to Exit the active menu or the OSD. 2,3 Adjust buttons: These buttons allow you to highlight and adjust items in the menu. Menu button: Use this button to open the OSD and activate a highlighted menu item. -
Page 9: H-Position
H-Position screen is displayed. Push the menu ( H-Position adjustment screen. Use the - and + buttons to change the Horizontal position of the monitor’s viewing area. V-Position Follow these instructions to change the Position of the monitor’s entire display. -
Page 10: Trapezoid
Adjusting Your Monitor Trapezoid Adjust the trapezoid setting when the top or bottom of the display is too large or small. With the menu off, push the menu ( Push the - button or + button until the Geometry screen is displayed. -
Page 11: Language
Adjusting Your Monitor Language Follow these steps to change the language used in the menu. You can choose one of ten languages. English,German,French, Italian, Portuguese, Spanish, Swedish, Russian, Polish, or Magyar. (Some OSD languages may not appear in some areas.) -
Page 12: Color Temperature
) button to open the Recall adjustment screen. Push the + button to select Yes. If you don’t want to reset the monitor, use the - button to select No. Note If you have selected “Yes”, all settings listed above will be reset. -
Page 13: Display Timing
This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on ) button. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting Check List Before calling for service, check the information in this section to see if you can solve the problem yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the Information section or contact your dealer. -
Page 15: Specifications
Humidity 5% ~ 95%, non-condensing Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer systems will provide the best operating conditions and monitor settings. In most cases, monitor installation will proceed automatically, unless the user wishes to select alternate settings. -
Page 16: Horizontal Frequency
Display Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows.
