Julian Bowen Limited CAM201 Assembly Instructions Manual

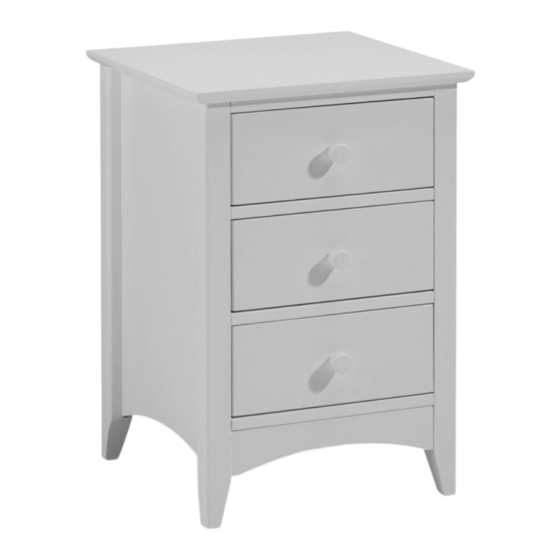

3 drawer bedside

Download this manual

ASSEMBLY

3 DRAWER BEDSIDE

INSTRUCTIONS

Approximate Assembly Time

People Required to Assemble

Tools Required

40min

630mm

Before you start...

Please carefully unpack and lay out all of the component parts to ensure nothing

is missing and to check each component for any obvious damage.

Should you identify any concerns at this stage please contact the retailer from

whom this product was purchased. Please quote your order number, details of

your issue, the product code, and the batch number from the cartons which will

help to resolve your issue as quickly as possible.

Version Number - 1.0

Product Code - CAM201

Need help?

Do you have a question about the CAM201 and is the answer not in the manual?

Page 1 Please quote your order number, details of your issue, the product code, and the batch number from the cartons which will help to resolve your issue as quickly as possible. Version Number - 1.0 Product Code - CAM201...
Page 3 Please check all hardware matches the list below. Should you notice any are missing please contact your retailer. ∅ ∅ 45x35mm 15x11mm 3,5x14mm ∅ ∅ 5x12mm 8x30mm ∅ 15x2mm ∅ 32x30mm 4x25mm ∅ 4x30mm ∅ 200x20mm 8x8mm 3,5x25mm We strongly advise that you do not use Power Tools, such as drills or electric screwdrivers during the assembly as this may cause irreparable damage and will invalidate your warranty.
Page 4 PARTS Please ensure you carefully check all the pieces, should you have any concerns please contact the retailer before assembly commences. Please have your order number, details of the issue, the product code, and the batch number from the cartons as this will help us to resolve your issue much faster.
Page 5: Assembly Advice
ASSEMBLY ADVICE Please take the time to carefully read through these instructions before you commence. Keep these instructions for future reference. We advise that the product is assembled in the room it is intended for. We advise that you keep the hardware in a bowl during assembly to avoid losing anything.
