Bauhn HE190044 - Premium Range True Wireless Earbuds Manual

Table of Contents

Contents

1 IN THE BOX
2 FUNCTIONS
3 CHARGING (CASE)
4 CHARGING (BUDS)
5 TURNING ON/OFF
- 5.1 Turning ON
- 5.2 Turning OFF
6 PAIRING
7 CONTROLS
8 LED INDICATOR GUIDE
9 TECH SPECS
10 AFTER SALES SUPPORT
11 Documents / Resources
- 11.1 Download manual

IN THE BOX

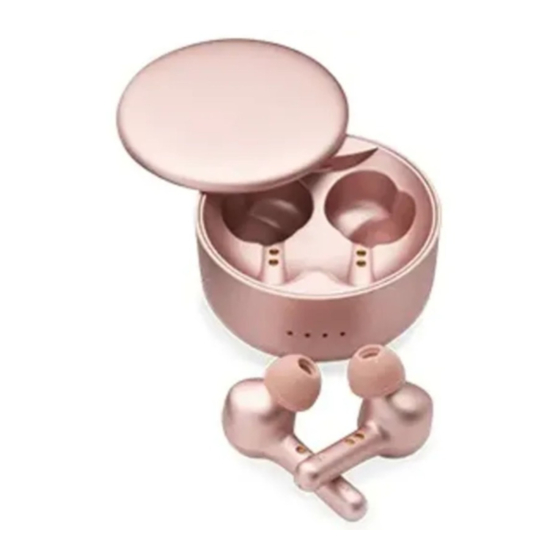

1 x True Wireless Earbuds
1 x Earbud Charging Case
3 x Eartips (L / M / S)
1 x Micro USB Charging Cable
1 x Setup Guide*
1 x Warranty Certificate*

*Not pictured

FUNCTIONS

LED Indicator Light
Multi-function Button (MFB)
Eartips
Earbuds Charging Point
Charging Case Charging Port
Charging Case LED

CHARGING (CASE)

Connect the micro USB end of the supplied micro USB charging cable into the charging case charging port
Connect the USB end of the charging cable into PC or AC/DC wall adaptor (not provided). The charging case LEDs will flash blue to indicate charging. All LEDs will turn off when charging is complete.

CHARGING (BUDS)

Ensure stickers are removed from the charging points on the stems of the buds.
Place buds into charging case. Red lights will illuminate on buds to indicate charging.

TURNING ON/OFF

Turning ON

Method 1: Open the charging case by swiveling the lid 180 degrees to the left or right. Take both earbuds out from the charging case, they will turn on and connect with each other automatically

Method 2: Whilst the earbuds are off, press and hold the multi-function button on both earbuds for 2 seconds. LEDs on both earbuds will flash blue for 1-2 seconds and you will hear a voice prompt "Power ON" from both earbuds

Turning OFF

Method 1: Put the earbuds back into the charging case and close completely, they will turn off automatically

Method 2: Whilst the earbuds are on, press and hold the multi-function button on both earbuds for 8 seconds. LEDs on both earbuds will flash red for 1-2 seconds and you will hear a voice prompt "Power OFF" from both earbuds

PAIRING

Take both earbuds out from the charging case, they will power on and connect with each other automatically. On first use, you will hear a voice prompt "pairing"
Enable Bluetooth on your device and select "HE190044" from the list to connect. You will hear a voice prompt "connected"

CONTROLS

You can control a variety of different functions on your mobile device using the smart touch controls on your earbuds. If you try move an earbud, these functions may activate. We recommend moving the earbuds using the stem part of the earbud to avoid any unnecessary activation

Play/Pause Music	Short press the multi-function button once
Volume Up	Long press the multi-function button on the right earbud (keep holding the multi-function button and the volume will keep going up, there will be a warning sound when you reach the maximum volume)
Volume Down	Long press the multi-function button on the left earbud (keep holding the multi-function button and the volume will keep going down, there will be a warning sound when you reach the lowest volume)
Next Track	Double press the multi-function button on the right earbud
Previous Track	Double press the multi-function button on the left earbud
Answer/End Call	Short press the multi-function button once
Reject Incoming Call	Press and hold the multi-function button for 2 seconds when a call is incoming
Activate Voice Assistant	Triple press the multi-function button on either earbud. Press it again to cancel
Factory Reset	The earbuds must be turned off first before resetting, quick triple press each of earbuds successively

LED INDICATOR GUIDE

Status	Description	Voice Prompt
Power On	Blue LED Flash light about 1 second	"Power On"
Power Off	Red LED Flash light about 1 second	"Power Off"
Pairing	Blue & Red LED flashes alternately on master earbud	"Pairing"
Connect	Both earbuds LEDs will turn off	"Connected"
Charging	Red LED is bright when the earphone is charging	N/A
