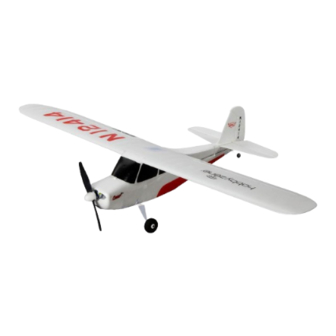

HobbyZone Carbon Cub S+ 1.3M Manual

Carbon Cub S

Flight Modes

Flight Mode TX Switch Position
Beginner
Intermediate
Advanced
Holding Pattern* Press and release HP/AL (Bind)
Press and hold (3 seconds)
AutoLand*
* Changing the flight mode switch or pressing the HP/AL (bind)
button will interrupt Holding Pattern or AutoLand Modes.

Compass Calibration

Compass calibration should be performed before the first flight
and whenever the aircraft is flown at a new location. Refer to the
product manual for complete compass calibration instructions.

Deactivating GPS

Push and hold the HP/AL (bind) button and fully cycle the flight
mode switch 3 times. Power cycle the aircraft to re-activate.

Virtual Fence Selection (Mode 2 transmitter shown)

Hold the transmitter sticks as shown while the aircraft GPS
system is initializing to change the active Virtual Fence Mode.
1.3M
+
FM 0
FM 1
FM 2
HP/AL (Bind)
Virtual Fence OFF
• Low throttle
• Full right aileron
• Full up elevator
Circle Virtual Fence, Small (Default)
150m radius from home location
• Low throttle
• Full left aileron
• Full up elevator
Circle Virtual Fence, Large
250m radius from home location
• Low throttle
• Full left aileron
• Full down elevator
Airfield Virtual Fence*
400m long x 200m wide flight area with
no fly zone set 4m from the home location
• Low throttle
• Full right aileron
• Full down elevator
* Airfield Virtual Fence requires the additional selection of a flying
area direction based on the specified home location.
Action Card
