Sherlo Tronics RX1-150 Installation Instructions

English
Installation Instructions -
For Service Persons Only
Model No: RX1-150
Product Description

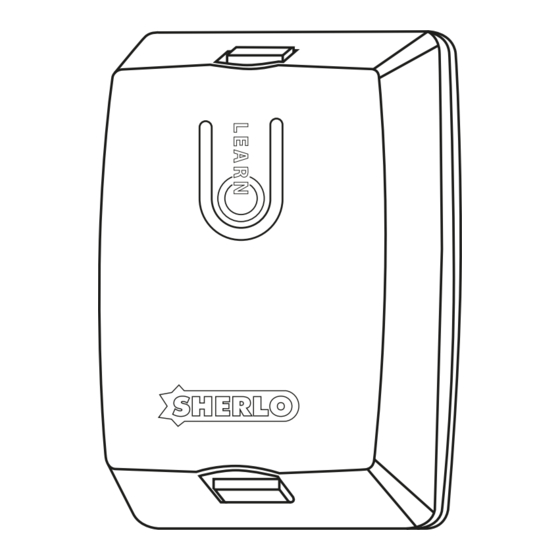

1 Channel Receiver: 150m Code Hopping
Features
• Code-Hopping Encryption; 1 x Relay output
• Normally Open / Closed; ABS housing
• Frequency stability controlled +/- 75KHz
Technical Specifications:
Model:
Encryption type:
Transmission frequency:
Transmission method:
Modulation:
Transmission range:
Memory capacity:
Voltage range:
Standby current consumption:
Current consumption all on:
Operating Temperature:
Dimension (lxbxh)
Gross weight:
Warranty
This product is sold subject to our standard warranty conditions and is warrantied against defects in
workmanship for a period of 2 years.
Customer Support line: +2711 462 5101 | E-mail: technical@sherlotronics.co.za
RX1-150
Code hopping
403MHz (Local) 433MHz (Export)
OOK
AM
150m "Line of sight" 60m"Indoors"
80 remotes
10VDC to 24VDC
+/-14mA 10%
+/-50mA 10%
-7°C to 49°C
100 x 60 x 25mm
78g Packed
Revision 2022
