Craftsman 486.24352 Operator's Manual page 5

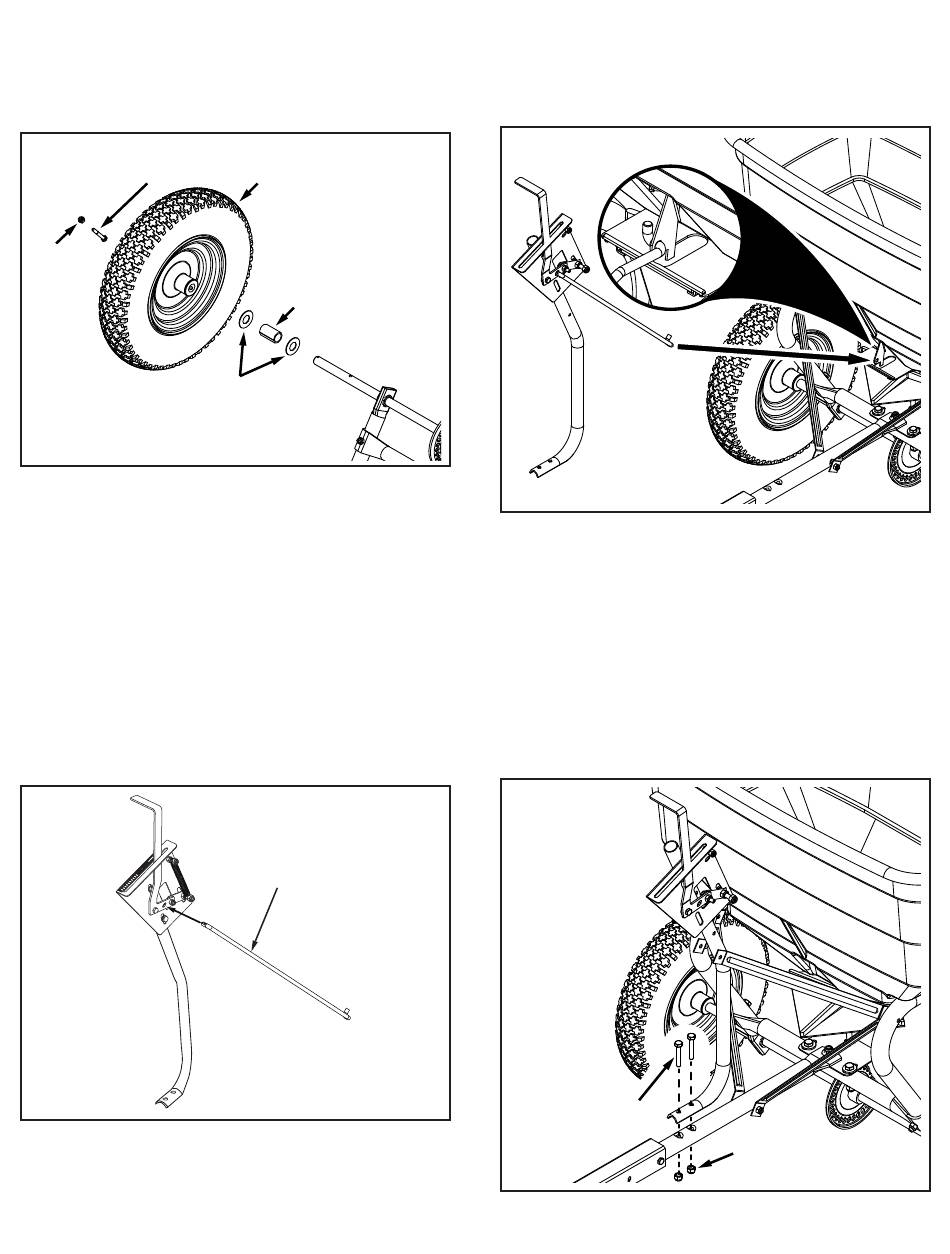

step 4: (see FIGUre 4)
• Assemble a washer, a spacer, a washer, a wheel (air
valve facing out) the end of the axle.
• Install a 1/4" x 1" hex bolt into the hole in the end of
the axle.
1/4 x 2
HEX BOLT
1/4
NYLOCK
NUT
WASHER
FIGUre 4
step 5: (see FIGUre 5)
• Insert the end of the flow control rod with only one
bend into the hole in the lever on the flow control tube
assembly.
FIGUre 5
WHEEL
SPACER
FLOW
CONTROL
ROD
step 6: (see FIGUre 6)
• Turn the spreader upright on its wheels.
• Hook the double bent end of the flow control rod
through the hole in the slide gate bracket located near
the bottom of the hopper.
FIGUre 6
step 7: (see FIGUre 7)
• Assemble the flow control mounting tube to the hitch
tube using two 5/16" x 1-3/4" hex bolts and 5/16"
nylock hex nuts. dO NOt tIGHteN Yet.
5/16 x 1-3/4
HEX BOLT
FIGUre 7
5
5/16 NYLOCK NUT
