CyberTwice AXIS C8110 Tech Note

Network audio and cybergate
Hide thumbs

Advertisement

Quick Links

Download this manual
TechNote:
AXIS Network
Audio and
CyberGate
Version:
1.0.0 ENG
Date:
06-06-2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the AXIS C8110 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberTwice AXIS C8110

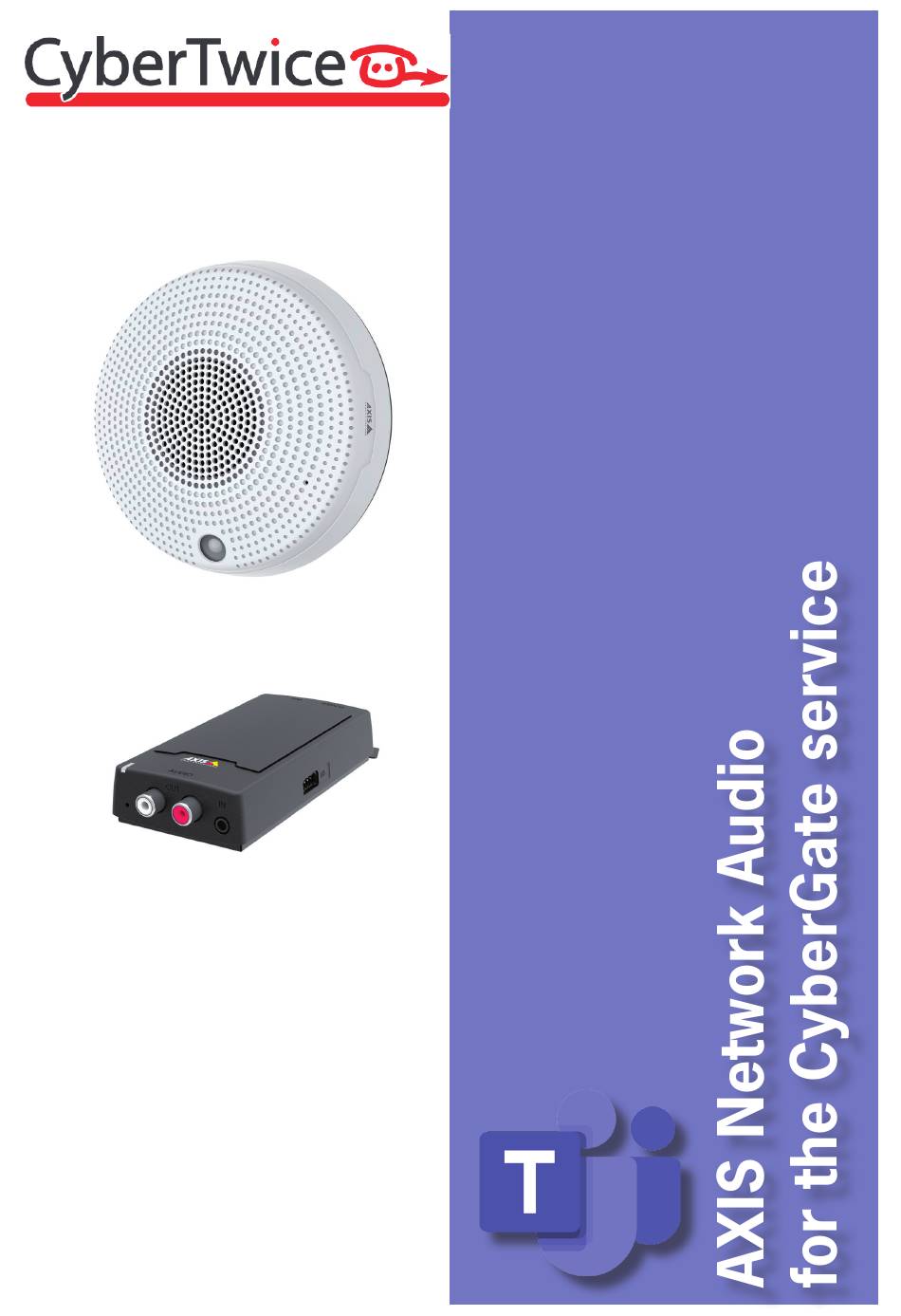

  • Page 1 TechNote: AXIS Network Audio and CyberGate Version: 1.0.0 ENG Date: 06-06-2023...
  • Page 2 CyberTwice or a 3rd party, no need to install additional Virtual Machines, no need for a Session Border Controller (SBC) or extra licenses for your existing SBC no need for to get additional PSTN like phone numbers for your SIP intercoms.
  • Page 3 AXIS devices connected in AXIS Audio Manager Edge. As an addition to the single device configuration of the AXIS C1410 Network Mini Speaker it describes the option to also simultaneous call an AXIS C8110 Network Audio Bridge.
  • Page 4 CyberTwice Configure AXIS Network Audio for the CyberGate service Single device configuration For this part of the manual an AXIS C1410 Network Mini Speaker is used. Connect the AXIS Connect the AXIS to the network, power it on and open a webbrowser to its IP-address.
  • Page 5 CyberTwice Configure AXIS Network Audio for the CyberGate service Navigate to the Audio-Device Settings menu Enable the internal microphone input:...
  • Page 6 CyberTwice Configure AXIS Network Audio for the CyberGate service Navigate to the System-SIP menu Provide / change the following information: SIP Settings Enable SIP Enable Allow incoming SIP calls Enable Audio G.722 Enable G.722 and move it to the top of the list Opus Enable Opus and move it below G.722...
  • Page 7 CyberTwice Configure AXIS Network Audio for the CyberGate service Click the blue ‘Save’ button when done. Navigate to SIP accounts...
  • Page 8 CyberTwice Configure AXIS Network Audio for the CyberGate service Add a new account: Provide / change the following information: Active Enable Make default Enable Name Name this SIP account entry, in this example ‘CyberGate’ User ID Define a name for this camera (spaces not allowed) Domain cybergate.cybertwice.com...
  • Page 9 CyberTwice Configure AXIS Network Audio for the CyberGate service...
  • Page 10 CyberTwice Configure AXIS Network Audio for the CyberGate service Click the blue ‘Save’ button when done.
  • Page 11 CyberTwice Configure AXIS Network Audio for the CyberGate service Click on the three vertical dots and select delete to remove the default peer-to-peer account.
  • Page 12 CyberTwice Configure AXIS Network Audio for the CyberGate service Navigate to the Sytem-Events menu. Navigate to Recipients...
  • Page 13 Descriptive name of the recipient Type Change to SIP To SIP address Use the Teams user address with the domain: cybergate.cybertwice.com * * For example, the user ‘Koos Ridder, with the Teams name: koos.ridder@mycompany.com will translate to this destination address: koos.ridder@cybergate.cybertwice.com...
  • Page 14 CyberTwice Configure AXIS Network Audio for the CyberGate service...
  • Page 15 CyberTwice Configure AXIS Network Audio for the CyberGate service Navigate to Rules and add a new rule Provide / change the following information: Use this rule Enable Name Descriptive name for the rule, in this example ‘Demo rule’ Condition...
  • Page 16 CyberTwice Configure AXIS Network Audio for the CyberGate service Click the blue ‘Save’ button when done.
  • Page 17 Before calls can be initiated from Microsoft Teams to the AXIS, additional configuration in the CyberGate Admin portal is necessary. Navigate to the following URL: https://admin.cybergate.cybertwice.com Log in to the admin portal using a Microsoft account with admin privileges and navigate to the Basic- Device menu.
  • Page 18 CyberTwice Configure AXIS Network Audio for the CyberGate service After the script is executed successfully the warning symbol is gone.
  • Page 19 CyberTwice Configure AXIS Network Audio for the CyberGate service To initiate a call from Microsoft Teams, login to Microsoft Teams and navigate to the ‘Calls’ menu. You can either type the (Display)name of the AXIS directly in the call field (at ‘Type a name’) or search for ‘cybergate’.
  • Page 20 Simultaneous call multiple devices using AXIS Audio Manager Edge As an addition to the just completed single device configuration of the AXIS C1410 Network Mini Speaker this part of the manual describes the option to also simultaneous call an AXIS C8110 Network Audio Bridge.
  • Page 21 CyberTwice Configure AXIS Network Audio for the CyberGate service When logged-in, the dashboard is shown. Navigate to the Configuration-Physical zones menu. Click ‘+CREATE’ to create a Physical zone.
  • Page 22 CyberTwice Configure AXIS Network Audio for the CyberGate service Name the Physical zone, in this example ‘Demo room 1’ Add the two Axis devices to the Physical zone by clicking ‘ADD’.
  • Page 23 CyberTwice Configure AXIS Network Audio for the CyberGate service The AXIS will show all available audio devices on the network. Select the AXIS C1410 and the AXIS C8110 and click ‘ADD’ The AXIS Audio Manager needs access to the devices. Provide the passwords for the devices.
  • Page 24 CyberTwice Configure AXIS Network Audio for the CyberGate service The Physical zone is added and the devices are configured in the Physical zone. Navigate to the Paging-Paging zones menu. Click ‘+CREATE’ to create a new Paging zone.
  • Page 25 CyberTwice Configure AXIS Network Audio for the CyberGate service Name the Paging zone, in this example ‘All demo devices’. Click ‘ADD’ to add the Physical zone to the Paging zone.
  • Page 26 CyberTwice Configure AXIS Network Audio for the CyberGate service Select the just created Physical zone. The Paging zone is now created and configured with the Physical zone.
  • Page 27 CyberTwice Configure AXIS Network Audio for the CyberGate service Navigate to the Paging-Paging sources menu. Click ‘+CREATE’ to create a new Paging source. ! Note: A Paging source is the source where the paging request is coming from. In this example, the AXIS C1410 is connected to CyberGate and thus the paging source.
  • Page 28 CyberTwice Configure AXIS Network Audio for the CyberGate service Click ‘Select intermediary device’ to select the AXIS C1410. Select the AXIS C1410.
  • Page 29 CyberTwice Configure AXIS Network Audio for the CyberGate service Click ‘ADD’ to select the Paging zone that needs to be paged. Select the Paging zone.
  • Page 30 CyberTwice Configure AXIS Network Audio for the CyberGate service The basic configuration of the AXIS Audio Manager Edge is now done. As soon as you call the AXIS C1410 from Microsoft Teams, all audio devices configured in the Paging zone will sound.

  • Page 31: Document History

    CyberTwice Configure AXIS Network Audio for the CyberGate service Document History Document Version Date Author Change 1.0.0 06-06-23 Initial version...
