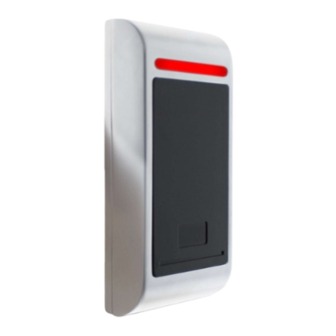

Motorline professional MLS4 User's And Installer's Manual
Hide thumbs
Also See for MLS4:
- User& installer's manual (8 pages) ,
- User& installer's manual (9 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Motorline professional MLS4
Summary of Contents for Motorline professional MLS4
- Page 1 MLS4 MLS4 USER’S AND INSTALLER’S MANUAL V1.7 REV. 05/2023...
- Page 2 00. CONTENT 01. SAFETY INSTRUCTIONS INDEX ATTENTION: 01. SAFETY INSTRUCTIONS This product is certified in accordance with European Community (EC) safety standards. 02. DEVICE DESCRIPTION This product complies with Directive 2011/65/EU of the SPECIFICATIONS European Parliament and of the Council, of 8 June 2011, on TECHNICAL CHARACTERISTICS the restriction of the use of certain hazardous substances in electrical and electronic equipment and with Delegated...
- Page 3 01. SAFETY INSTRUCTIONS GENERAL WARNINGS • Children shouldn’t play with the product or opening devices to avoid the motorized door or gate from being triggered involuntarily. • This manual contains very important safety and usage information. very important. Read all instructions carefully before beginning the WARNINGS FOR TECHNICIANS installation/usage procedures and keep this manual in a safe place that it can be consulted whenever necessary.
- Page 4 01. SAFETY INSTRUCTIONS RESPONSABILITY Council of 16 September 2009. • Attach the permanent label for the manual release as close as • Supplier disclaims any liability if: possible to the release mechanism. • Product failure or deformation result from improper installation •...
- Page 5 DESCRIPTION DEVICE INSTALLATION MLS4 is a waterproof standalone access control, reading EM&HID card. It uses an advanced Microprocessor, 1 • Drill the holes according to the distance and the dimension on the back cover, or install the distributing with high-capacity flash memory for 10000 users. Users can be easily added and deleted via admin card.
- Page 6 03. INSTALLATION AND CONNECTIONS 03. INSTALLATION AND CONNECTIONS STANDALONE FOR A DOOR WITH POWER SUPPLY STANDALONE FOR A DOOR WITH POWER SUPPLY • ELECTRIC LOCK • ELECTROMAGNETIC LOCK MLS4 MLS4 +12V OPEN +12V OPEN External reader External reader +12V +12V...
- Page 7 Connect the yellow wire to the black wire and turn on the power. After the sound “didi”, Factory reset is finished. When indication LED turns green, it means you can set the two admin cards. Pass the first card MLS4 through the reader as admin add card. After that pass the second card as admin delete card. Then LED turns red flash, and after that, the device can work normally.
- Page 8 04. CONFIGURATION 04. CONFIGURATION PRODUCT INSTALLATION PRODUCT INSTALLATION Remove user by remote control: Set Red light mode: Pass card to delete pass card 1 pass card 2 Static mode disabled user Static mode enabled 8 or 10 digits card number Use card number to (factory default) remove user...
- Page 9 04. CONFIGURATION 04. CONFIGURATION OPEN DOOR AS USER ADVANCED CONFIGURATIONS 3 • Anti-passback for Single door Pass a valid user card through the reader. Note • The admin card Pass user card Install a common reader outside (or use this device without any card No. for reader). Install this device cannot be used to open doors.
