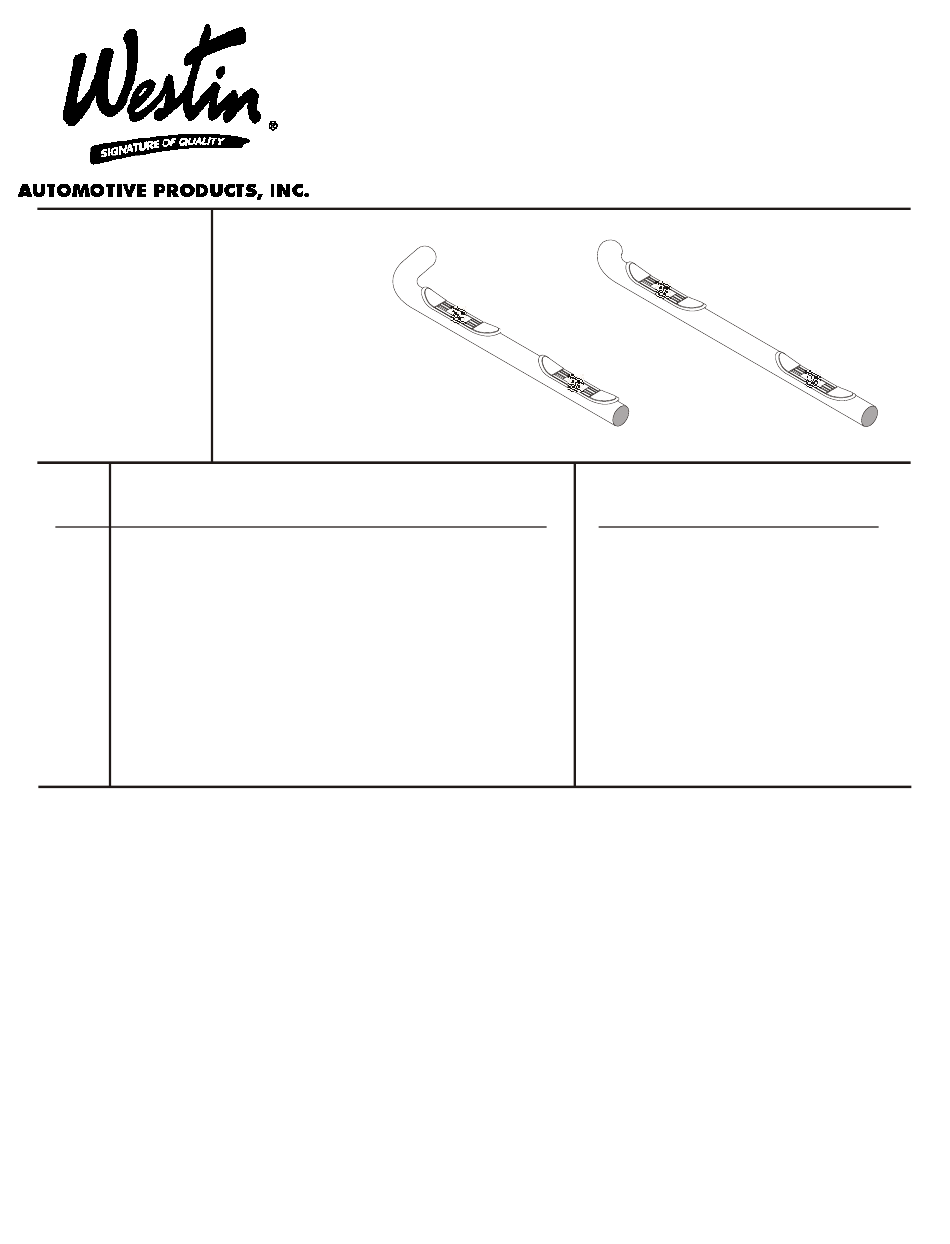

Westin 25-2130 Installation Instructions

STEP BAR
ASSEMBLIES
25-2130
25-2135
26-2130
26-2135
25-2240
25-2245
26-2240
26-2245
QTY
1 STEP BAR, DRIVER SIDE
1 STEP BAR, PASSENGER SIDE
4 MOUNT BRACKET
4 MOUNT BRACE
4 M8-1.25 HEX NUT
16 M8 SPLIT LOCK WASHER
20 M8 FLAT WASHER
16 M8-1.25 X 30MM HEX HEAD BOLT
8 3/8-16 X 1.00" BUTTON HEAD CAP SCREW
8 3/8" INTERNAL TOOTH LOCK WASHER
Remove the contents from the box and check for any damage. Verify all parts against the parts list.
STEP 1.
Read and understand instructions completely before beginning installation.
STEP 2.
. Install mount brackets to vehicle body using (2) M8-1.25 x 30MM hex head bolts, (2) M8 split lock washers and
STEP 3
(2) M8 flat washers. Leave loose.
Fasten mount brace to vehicle body using (1)M8-1.25 x 30MM hex head bolt, (1) M8 split lock washer and (1)
STEP 4.
M8 flat washer. Attach other end of mount brace to mount bracket using (1) M8-1.25 x 30MM hex head bolt, (2)
M8 flat washers,(1) M8 split lock washer and (1) M8-1.25 hex nut. Leave loose.
Position step bar in place and fasten to mount brackets using (4) 3/8-16 x 1.00" button head cap screws and (4)
STEP 5.
3/8" internal tooth lock washers. Leave loose.
Level and adjust step bar as desired. Torque 8MM hardware to 25 FT. LBS. and 3/8" hardware to 30 FT. LBS.
STEP 6.
All manuals and user guides at all-guides.com
I N S TA L L AT I O N I N S T R U C T I O N S
APPLICATION: 2002-UP CHEVROLET TRAILBLAZER
2002-UP GMC ENVOY
2002-UP OLDSMOBILE BRAVADA
2002-UP CHEVROLET TRAILBLAZER EXT
2002-UP GMC ENVOY XL

PARTS KIT CONTENTS

DESCRIPTION

TOOLS REQUIRED

13MM SOCKET
13MM WRENCH
7/32" HEX WRENCH (ALLEN)
RATCHET
TORQUE WRENCH
NOTE: FASTENERS ARE CONTAINED
IN BOLT KIT 60-1214.
75-0313 Revision A 05/16/02
