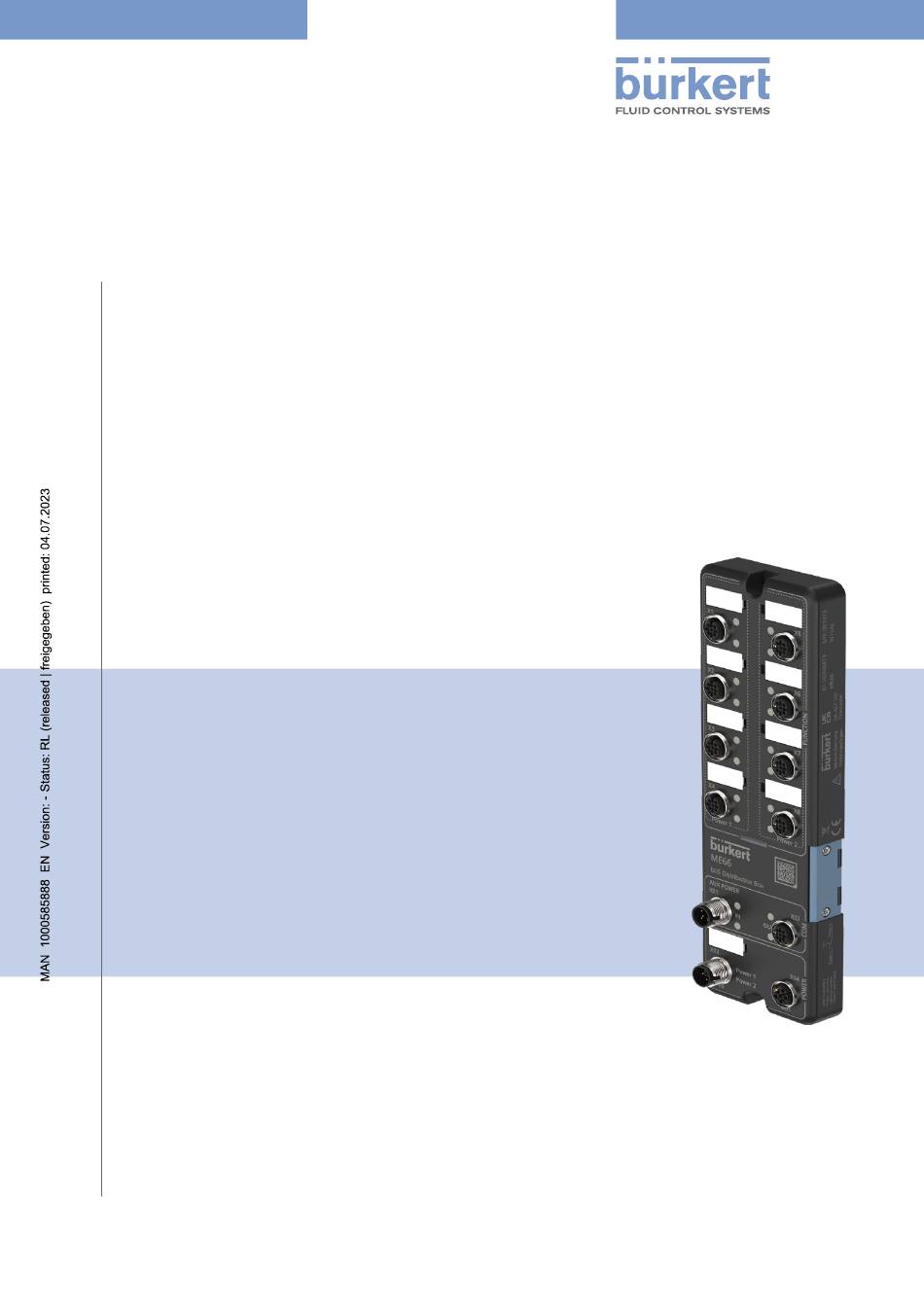

- Page 1 Type ME66 büS distribution box Passive distributor Operating instructions...
- Page 2 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert Werke GmbH & Co. KG, 2023 Operating Instructions 2302/00_EUen_00815432/ Original DE...
-
Page 3: Table Of Contents
Left and right device side labelling ................12 INSTALLATION ............................13 7.1 Installing the device ........................13 7.2 Opening and/or closing the side panel ..................13 7.3 Electrically connecting the device ....................14 7.3.1 Assigning the connections ..................14 7.4 Combining ME6x modules ......................15 7.4.1 Module connections for the power supply ..............15 7.4.2 Simplified power supply plan ..................17 7.4.3 Combining ME66 modules ..................19 7.5 Combining different ME modules ....................20 English... - Page 4 DISPLAY ELEMENTS ...........................21 8.1 LED for displaying device status ....................21 TRANSPORTATION, STORAGE, DISPOSAL ..................22 English...
-
Page 5: The Operating Instructions
Highlights instructions to avoid a danger. Highlights a procedure which you must carry out. Definition of terms Term Description Device büS distribution box Type ME66 büS Bürkert system bus; a communication bus developed by Bürkert, based on the CANopen protocol. English... -
Page 6: Intended Use
Type ME66 Intended use INTENDED USE The büS distribution box Type ME66 is a passive distributor and is available as an accessory for cabling büs networks, for the fieldbus gateway Type ME63. ▶ Use the device only as intended. Non-intended use of the device may be dangerous to people, nearby equipment and the environment. ▶ Use the device only in conjunction with third-party devices and components recommended or approved by Bürkert. -
Page 7: Basic Safety Instructions
Type ME66 Basic safety instructions BASIC SAFETY INSTRUCTIONS These safety instructions do not take into account any unforeseen circumstances and events which occur during installation, operation and maintenance. The operator is responsible for observing the location-specific safety regulations, also with reference to personnel. General hazardous situations. To prevent injuries, observe the following: ▶ Use the device only when it is in a perfect state and in accordance with the operating instructions. -
Page 8: General Notes
Type ME66 General notes GENERAL NOTES Contact addresses Germany Bürkert Fluid Control Systems Sales Centre Christian-Bürkert-Str. 13–17 D-74653 Ingelfingen Tel.: + 49 (0) 7940 - 10-91 111 Fax: + 49 (0) 7940 - 10-91 448 E-mail: info@burkert.com International You can find the international contact addresses on the Internet at: country.www.burkert.com Warranty A precondition for the warranty is that the device is used as intended in consideration of the specified ope- rating conditions. Information on the Internet Operating instructions and data sheets for the Bürkert products can be found on the Internet at: country.burkert.com... -
Page 9: Product Description
Type ME66 Product description PRODUCT DESCRIPTION The passive distributor Type ME66 is an extension module for Bürkert products in the ME6x series and acts as a büS/CAN open distributor (X1-X8). LED device status Under the cover lid: Switch for changing over the supply voltage from connection X03 (L-coded) to connection X01 Connections (A-coded). -
Page 10: Technical Data
Type ME66 Technical Data TECHNICAL DATA Standards and directives The device complies with the valid EU harmonisation legislation. In addition, the device also complies with the requirements of the laws of the United Kingdom. The harmonised standards that have been applied for the conformity assessment procedure are listed in the current version of the EU Declaration of Conformity/ UK Declaration of Conformity. -
Page 11: Device Labelling
Type ME66 Technical Data Device labelling 6.4.1 Device top side labelling Image 2: Device top side labelling Item Designation Device-specific function Data matrix code with link to Bürkert product page Type & device designation IN (X01): AUX power for alternative supply via A-coded M12 plug OUT (X02): AUX power for integration of more büS/CANopen devices via A-coded M12 socket Power supply English... -
Page 12: Left And Right Device Side Labelling
Type ME66 Technical Data 6.4.2 Left and right device side labelling Image 3: Labelling on the left side of the device Image 4: Labelling on the right side of the device Item Designation Performance data (ambient temperature, IP degree of protection for voltage, power consumption) -
Page 13: Installation
Type ME66 Installation INSTALLATION WARNING Risk of injury due to improper installation. ▶ Only trained technicians may perform installation work. ▶ Perform installation work using suitable tools only. Installing the device The device will be delivered fully installed. Modifications to the device are only permitted to be carried out by Bürkert. → Install the device on a level surface using 2 screws (M4) and 2 flat washers (according to DIN 125). Observe the maximum tightening torque of 1Nm. →... -
Page 14: Electrically Connecting The Device
Type ME66 Installation Electrically connecting the device Requirements for UL-certified devices: ▶ Only connect devices with a UL-certified cable (CYJV or PVVA) with suitable nominal values. ▶ Maximum permitted cable temperature is 105° C. ▶ Do not lay Ethernet cables used for communication outside buildings. ▶ Galvanically isolate external circuits connected to ports from mains circuits, in order to protect them against isolation breakdown in the communication network. -
Page 15: Combining Me6X Modules
Type ME66 Installation Combining ME6x modules 7.4.1 Module connections for the power supply ME63 ME64 ME66 Image 5: Power supply via büS connection ME63 ME64 & ME66 M12-A, socket, büS/CANopen and 24 V X1-X3; M12-A, plug, büS/CANopen IN, max. 4 A, for DC, max. 4 A, for connection of a device connection of büS/ CANopen network... - Page 16 Type ME66 Installation ME63 ME64 & ME66 Image 6: Power supply via X03 Connection Description X03 (IN) M12-L, plug, power IN, max. 32 A, for power supply input X04 (OUT) M12-L, socket, power OUT, max. 32 A, for power supply for other devices ATTENTION Damage to device ▶...
-
Page 17: Simplified Power Supply Plan
• The switch must be closed if the supply comes via AUX power. • Attention: Only max. 4A will then be available for the entire module. It must be guaranteed that the module is not supplied via X03 if the supply comes via AUX power. For Type ME66, Power 1 and Power 2 are two separate circuits with common ground. • Power 1 supplies ports X1-X4, Power 2 supplies ports X5-X8 • Power supply via port X03 with a current of 2 x 16A (16A per circuit). - Page 18 Type ME66 Installation Reverse protection - ME63 If both supplies (A-coded and L-coded) are connected, it is not permitted for any return flow to occur via the A-coded supply. With the ME63 type, this is prevented via reverse protection. If the modules are only supplied via the M12 A-coded (X4) supply, the reserve protection function switches over automatically. Power supply via X01 (AUX power) - ME64 & ME66 The power supply is activated via port X03 for the modules in delivery condition. ATTENTION Input cannot be made via both ports at the same time. If the modules are supplied via port X01, the switch must be changed over. Underneath the light blue side panel, there is a switch for changing over the module supply from X03 to port X01 (AUX power). „7.4.2 Simplified power supply plan“ ATTENTION Damage to the switch for AUX power. A current >4A will damage the switch.
-
Page 19: Combining Me66 Modules
Installation 7.4.3 Combining ME66 modules In this instance, the switch must be changed in order to use AUX power. „7.4.2 Simp- lified power supply plan“ only data = 2x16 A = 2x16 A Image 8: Example for the combination of ME66 modules English... -
Page 20: Combining Different Me Modules
Type ME66 Installation Combining different ME modules In this instance, the switch must be changed in order to use AUX power. ME66 ME64 max. ME63 ME66 ME64 ME66 only data only data only data = 2x16 A = 2x16 A... - Page 21 Type ME66 Display elements DISPLAY ELEMENTS Type ME66 has the following LEDs for diagnosing the device status: • LED for indicating the device status. Channel status LED channel A LED device status Channel status LED channel B Image 10: Display elements Type ME66...
- Page 22 ▶ Store the device in a dry and dust-free location. Storage temperature: -30 °C...+80 °C Environmentally friendly disposal ▶ Follow national regulations regarding disposal and the environment. ▶ Collect electrical and electronic devices separately and dispose of them as special waste. Further information at country.burkert.com. English...
- Page 23 www.burkert.com...
