Summary of Contents for AlkaWay Ultrastream Undersink Kit

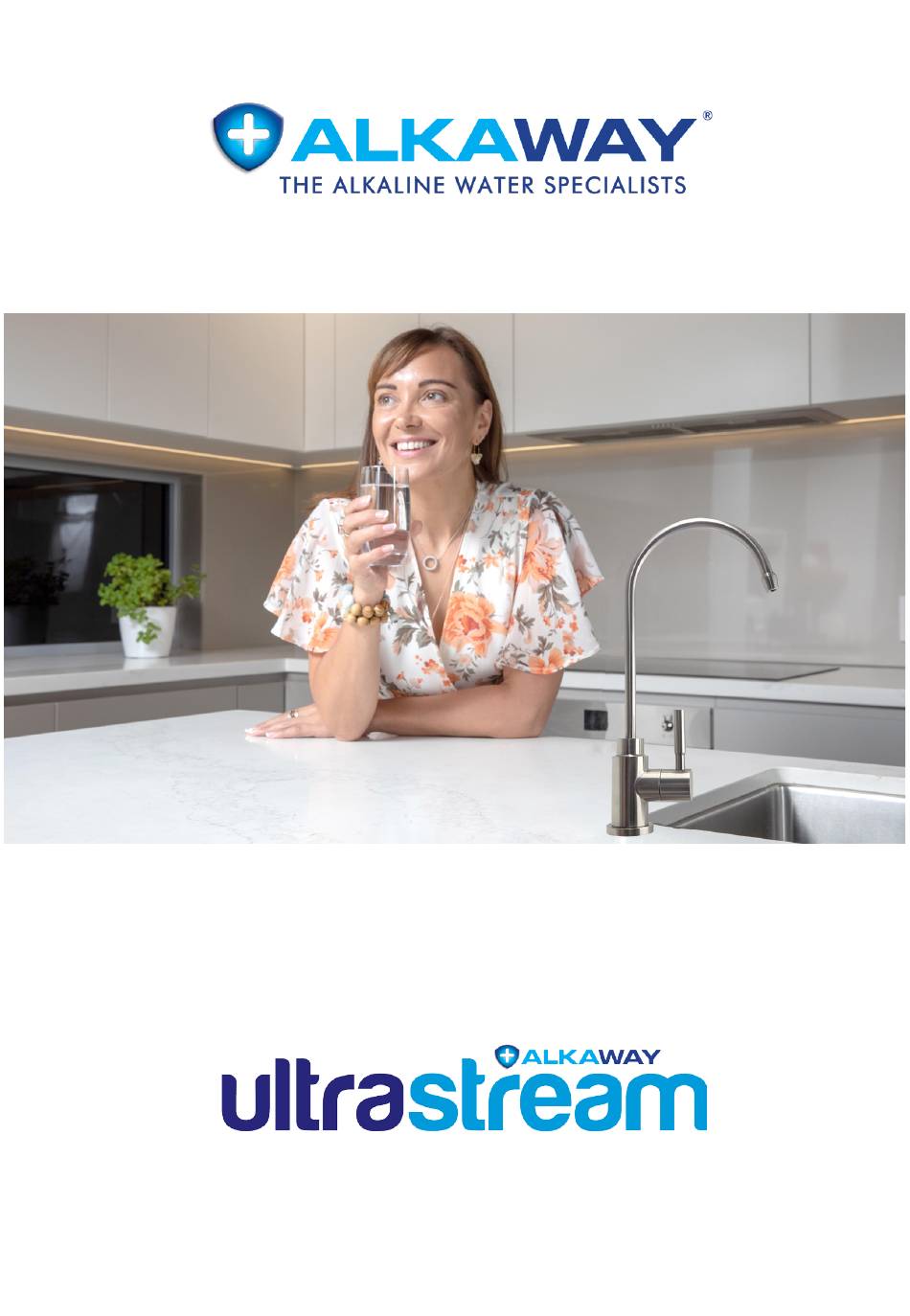

- Page 1 ® Undersink Installation...
- Page 2 Congratulations on choosing the AlkaWay Undersink Kit for your UltraStream water filter system. Follow the steps in the manual and you’ll have clean, pure filtered alkaline water and an uncluttered benchtop. We have designed our Undersink Kit to be fully compatible with the UltraStream Benchtop unit. Features • Quick Connect attachments for simple installation. • Ceramic faucet valves. •...
- Page 3 We strongly encourage you to read the manual carefully keep a copy of this manual for future reference. AlkaWay is not liable nor responsible for any damage resulting from user installation contrary to instructions in this manual. Molecular Hydrogen Production ‘The Drip’...
- Page 4 What you will need (other than what’s in this kit) • Electric Drill. • Metal Hole Saw - 30mm-32mm for stainless steel sinks. For stone benches we recommend contacting an expert. • Masking Tape. • Rasp, Metal File or Sand Paper. • Ajustable spanner Undersink Kit Contents Vented Faucet 3x 1/4” Plastic Tubes (1.2 meters each) Quick Connect Size Spanner...
-
Page 5: Cold Water Connection
6. Reconnect the cold-water line (the braided tube) by screwing on to the installed cold-water connector. 2. Vented Faucet Hole 1. Cut out the drilling template image. 2. Before drilling place tape on the surface where the hole will be drilled. 3. Choose a location on the sink or benchtop where the UltraStream vented faucet spout may flow into the sink both when it is on and when it is off. 4. Centre mark the hole. 5. Drill the hole (NOTE: Always use an expert when drilling into stone or marble benchtops). 6. Remove sharp edges and deburr the hole. This is to protect your hands and the tubes when feeding the tubes through the hole. For videos, help and support go to www.alkaway.com.au/support... - Page 6 3. Install metal inlet tubes 1. First, unscrew the faucet nut. Then remove the faucet nut and black washer and put aside. 2. Unscrew the tube nut from the three Metal Inlet Tubes. 3. Lay the faucet flat on a table, with the tap handle facing to the right, as shown. Now looking at the threaded holes in the bottom of the faucet; - The top hole is for the shortest metal inlet tubes. - The bottom right hole is for the medium sized metal inlet tube.
- Page 7 4. Install tubes to faucet 1.Attaching the ¼” plastic tubes. a.The RED tube connects to the SHORTEST Metal Inlet Tube (high pressure line MUST be red hose). b.The WHITE tube connects to the MEDIUM length Metal Inlet Tube. c.The BLUE tube connects to the LONGEST Metal Inlet Tube. 2.Attached the different coloured tubes. Start with the RED tube, which is attached to the shortest Metal Inlet Tube connector. Slide the tube nut onto the ¼” tube. Then push the end of the tube onto and over the flared section of the connector and re-screw on the nut. Soaking the end of the tube in hot water will make it easier to push the tube on. 3.Repeat for the other coloured tubes (as stated in step 2 above). 5.Insert/feed the tubes carefully into the drilled hole. If the hole is in a stainless-steel sink, take care not to cut or scratch the ¼” plastic tubes as they are fed into the hole.
-
Page 8: Installation Schematic
3. Insert the other end into the PLV, ensuring the flow arrow is pointing away from the cold-water connector. 4. Connect the red tube coming down from the faucet into the other end of the PLV. For videos, help and support go to www.alkaway.com.au/support... -
Page 9: Leak Testing
7. Connecting UltraStream Unit (see Quick Connect Connector Instructions page 2) 1. Lay the UltraStream onto its side. 2. Feed the white tube through the hole in the side of the base, then insert it into the quick connect inside the base. 3. Turn the unit upright and insert the size converter in the quick connection in the top of the UltraStream. -
Page 10: Troubleshooting
UltraStream, producing a drip. This drip will usually slow down and stop within a couple of weeks. Remember this is not a leak, it is simply an effect of excess molecular hydrogen production. Leaking From the UltraStream Faucet • Over time and repeated use, the faucet’s internal mechanism may become loose. There is a simple fix. Visit our support page for a video on how it is done www.alkaway.com.au/support/. No pH Reading • You need to use liquid pH Reagent similar to what was supplied with your UltraStream. pH strips or Litmus paper will not give you a correct reading. • pH Reagent might be out of date or stored incorrectly. • It might be time to replace your filter. -
Page 11: Pre-Filters
Pre-Filters Optional Extra’s Our pre-filters selection is specifically designed to provide an extra layer of protection for you and your family. We have shown our best-selling options below but there are many more options available online at www.alkaway.com.au. By incorporating this optional pre-filter, you can extend the lifespan of your UltraStream and improve the overall filtration efficiency (pre-filters sold separately). Sediment areas – Recommended for rainwater tanks and high sediment states like SA or WA. Simply install the sediment paper pre- filter in line with your UltraStream water filter system. Helps protect the filter from clogging up prematurely. Extra Fluoride removal – The UltraStream will remove up to 78% of fluoride, the fluoride pre-filter removes... - Page 12 Do you have a story about your water? We’d love you to share it: Email us at info@alkaway.com.au AlkaWay Australia | www.alkaway.com.au AlkaWay United States | www.alkaway.com AlkaWay Canada | www.alkaway.ca AlkaWay UK/EU | www.alkaway.co.uk AlkaWay Singapore | www.alkaway.sg AlkaWay Support | support.alkaway.com v4.6 Copyright AlkaWay 2023...
