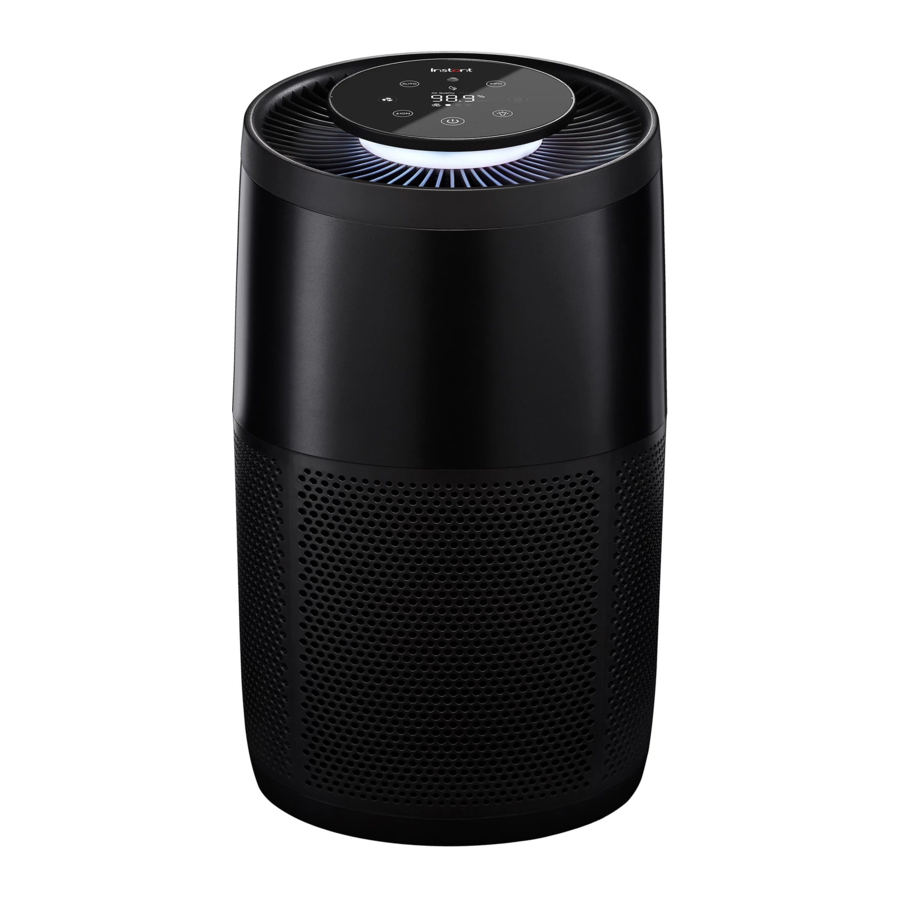

Instant Pod AP100, AP200 & AP300 - Air Purifier Manual

SAFETY WARNINGS

Cleaning and Repair

• DO unplug the appliance from the power supply before cleaning.
• DO inspect the unit frequently. Dirt that has collected should be removed regularly to prevent excessive accumulation that may result in flashover or fire.
• DO use appropriate personal protective equipment during cleaning and filter removal.
• DO NOT insert fingers or objects into the air outlet.
• DO NOT handle the unit with wet hands. Thoroughly dry your hands before handling any part of the air purifier.
• DO NOT immerse air purifier in water or liquids, or clean the appliance with any liquid to avoid electric shock and/or electrical fires.
• The power supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the air purifier. Doing so will void your warranty. Contact Customer Care immediately if your appliance is no longer working.
• If the unit is damaged, not functioning properly, produces a strange noise, burning smell or smoke, discontinue use, unplug immediately and contact Customer Care.

Other

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

NOTE
This appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a safety device to prevent or clean up accidents with combustion processes and hazardous chemicals.

What's in the box?

*AP200 models only

Power cord included, not shown
AP300 model is illustrated, it is representative of the overall features and accessories for models AP100, AP200 and AP300. Illustrations in this document are for reference only and may differ from the actual product. Always refer to the actual product.

What to expect

Your new Instant™ Air Purifier features an Advanced 3-in-1 filtration system and plasma ion technology working together to treat air in a room area. Treated Air means the air that is cycled through the Instant™ Air Purifier. Welcome to cleaner air in minutes!
Follow us on Facebook and Instagram for all the latest news and updates on the Instant Brands portfolio.

@instantpotaunz

@instantpot.aunz

• HEPA-13 filter, that captures 99.9% of dust, dander, pollen, allergens and other ultrafine impurities in the air.
• Carbon layer in filter helps reduce odours.
• Antimicrobial coating prevents bacterial growth on the filter and protects it against degradation.

Plasma Ion Technology
Projects positive and negative ions into the air.

Cleaner Air in Minutes
Operating at AHAM-verified clean air delivery rate (CADR)., AHAM is Association of Household Appliance Manufacturers (AHAM). AHAM delivery rate based on filtering pollen, tobacco smoke and dust. It does not relate to viruses or bacteria.

Automatic Operation
Intelligent Sensors monitor air quality and adjust fan speed automatically to work 24/7.**
**Sensors have a margin of error of +/- 20 micrograms per cubic metre in detecting changes in air quality.

Control panel

*Not available on AP100 models.

Getting started

1. Remove the air purifier from the box.
2. Remove the packaging material.
3. Turn the air purifier on its side and twist the bottom panel anti-clockwise to remove the panel.
4. Remove the filter and remove the plastic bag. Reinsert the filter.
5. Replace the bottom panel, turning it clockwise to tighten.
6. Place unit on floor to ensure there's clearance on all sides to allow for proper circulation.
7. Plug the electrical cord into an electrical outlet.
8. Touch the power button to turn the unit on. The unit powers up, measures the room's air quality (as it does, it counts down for 30 seconds), and begins cleaning the air.
9. The unit sets itself to Auto operation.

Using your air purifier

Turn on the unit

• If the unit is unplugged, plug the electrical cord into an electrical outlet.
• If the unit is plugged in but turned off, press the Power button until the display turns on.

Turn off the unit

• To stop the unit from operating, press the Power button, and the unit will turn off.

Automatic operation
There are 3 modes of operation: (1) Fan auto mode; (2) Night mode and (3) Eco mode. Our product software uses sensors to intelligently control the Instant™ Air Purifier. One sensor constantly monitors and reports air quality. Another sensor monitors ambient light.

Auto Mode
Fan auto mode adjusts fan speed up or down according to detected air quality.

Economy or Eco Mode
If air quality is detected as good for 30 minutes, the Instant™ Air Purifier enters Economy or Eco Mode, meaning that the fan cycles on and off every 10 minutes. When fan is on, it is measuring air quality. Eco Mode allows 50% energy reduction. (Energy Star certified).

Night Mode
Night Mode senses room lighting, turning light off and turns fan speed to low. You may set custom light level, providing for dimmed light level. If Night Mode is chosen, plasma ion technology is turned off for quietest operation. Efficacy in removing viruses and bacteria is reduced.

• During Night mode, touch the LIGHT button to turn on the display

Fan speed
If you press FAN ICON, you can manually control fan level: low, medium or high.

Light level
If you press the LIGHT ICON button, you can manually control light level at 0%; 20%; 60% and 100%. The light levels are pre-set at these levels:

Air quality
As it constantly monitors the air in the room, your air purifier shows your air quality in two ways:
Air quality indicator

• AP100 models Colour Indicator: white, yellow, red.
• AP200 models Colour Indicator and % of the cleaner air measured (based on particulates detected by the Sensor, which is translated to a % of good air quality as defined above).
• AP300 models Colour Indicator and % of the cleaner air measured (based on particulates detected by the Sensor, which is translated to a % of good air quality as defined above).

Air quality light

• Coloured light (under the control panel) to give you an at-a-glance reading of your air quality..

Plasma ion
In Auto operation, your air purifier uses plasma ion technology. Although it sounds high tech (and it is) it's safe and natural. Plasma ion operation is automatically turned off during Night Mode.

• If you press the ION button, you can manually turn plasma ion technology on or off.

Replace filter indicator
Filters are expected to last 6-8 months. When it is time to change the filter, an orange ring will flash around the FILTER ICON.

Caring for your air purifier

Cleaning the unit

• To remove dust, lightly wipe the unit with a soft, clean cloth.
• If needed, wipe the unit with a clean damp cloth, then immediately dry with a clean dry cloth.
• DO NOT immerse the unit in water.

Replacing the filter
Visit www.instantpot.com.au to locate a retailer to purchase compatible filters, designed to work with your unit.
Use appropriate personal protective equipment during filter removal.

1. Unplug the air purifier from the electrical outlet.
2. Turn the air purifier on its side and twist the bottom panel anti-clockwise to remove the panel.
3. Remove the old filter and dispose of it properly. The filter is not recyclable.
4. Remove the new filter from its packaging and insert it into the air purifier.
5. Replace the bottom panel, turning it clockwise to tighten.
6. Place the air purifier on the floor again and plug it back into the electrical outlet.
7. The air purifier will automatically begin cleaning the air again.

Cleaning the sensor*
Clean the dust sensor every two months to keep your air purifier operating efficiently.

When to turn it off
Your air purifier is designed for ongoing use, and is safe to keep running all the time when you are home regularly.

• If you leave for longer than a day (such as for a holiday), turn the unit off to save energy and the life of the filter.

*AP200 models only

If problems arise

Product Specifications
