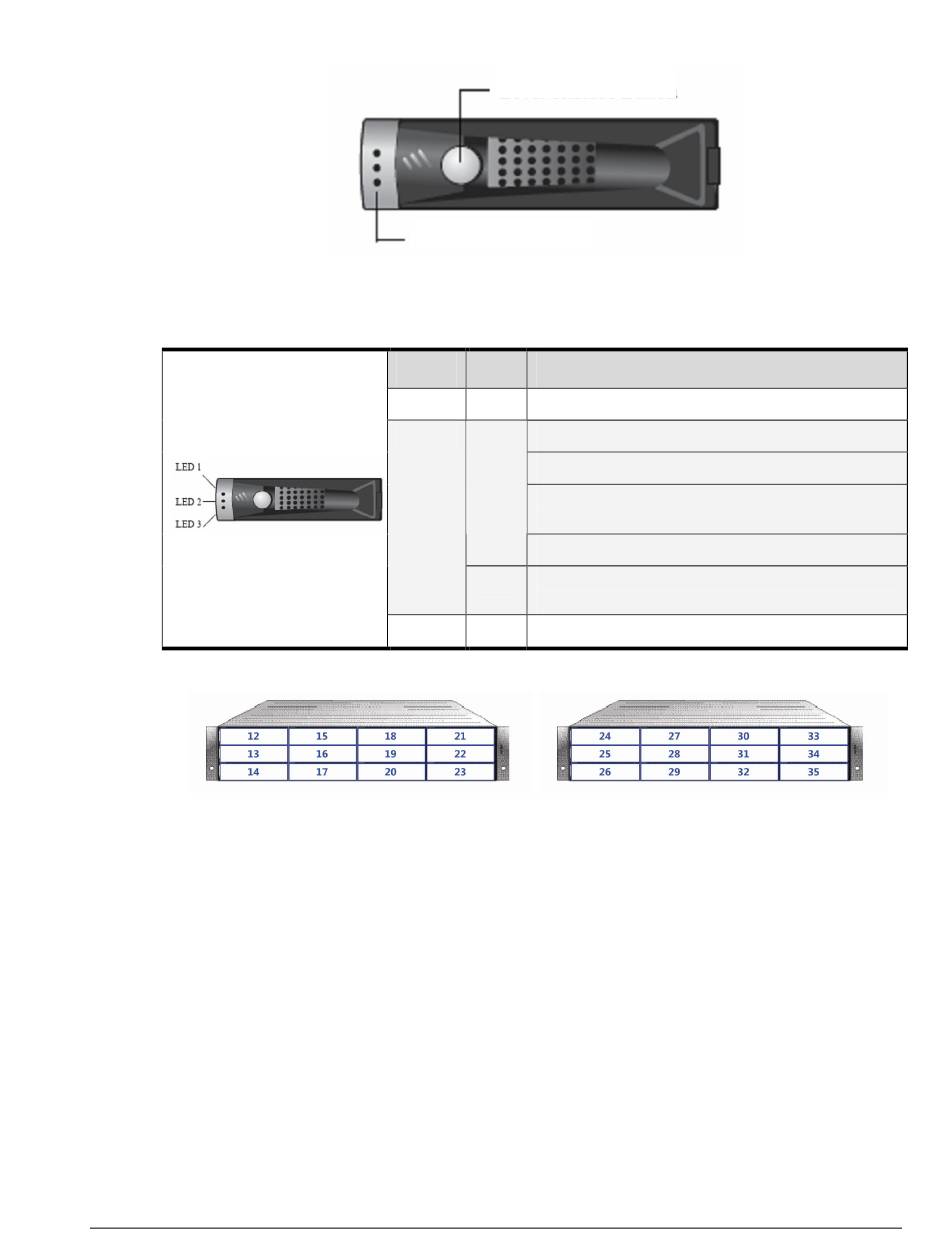

Figure 4-2. Close-up View of the Lever Release Button and Status LEDs on a Drive Carrier
(First Expansion Array)
DSN-5000 series Hardware Reference Guide
Drive Status LEDs
Table 4-2. Drive Carrier Status LEDs
LED Color
LED 1 Green
LED 2 Green
Amber
LED3 Green
Figure 4-3. Drive Numbers on the Expansion Arrays
Lever Release Button
Description
This LED is reserved for future use.
OFF = no drive is installed (drive slot is empty).
ON = drive is online, ready for operation.
Slow Flash = drive is being prepared for removal or is being
rebuilt.
Fast Flash = drive is being identified.
Fast Flash = drive failed and should be replaced (see Appendix
A for information about installing or replacing drives)
Flash = drive activity is occurring.
(Second Expansion Array)
