Inserting Cables Through The Sealing Grommet; Mounting The Dome Camera; Mounting The Dome Camera Using The Bottom Cable Entry Hole - Motorola Avigilon H4A-D1 Installation Manual

The camera should be installed above 274 cm (9').
l
The camera should tilt downwards no more than 45 degrees.
l
The camera image should be level with the horizon line.
l
The camera should be mounted to a stable surface to minimize the physical movement of the
l
camera after installation.
For more details, see Designing a Site for Video Analytics. The document is available on the Avigilon
website.

Inserting Cables through the Sealing Grommet

Depending on where you are installing the camera, you may need to pull the required cables through the
sealing grommet included with the camera when using a cable entry hole.
1. Remove the sealing grommet from the camera.
2. Pull the tab on the grommet to open a hole for the Ethernet cable.
3. Push an Ethernet cable through the grommet by one of the following methods:
a. If the Ethernet cable is uncrimped, push the cable through the grommet.
b. If the Ethernet cable is already crimped, place the grommet piercing cap on the Ethernet
connector then push the cable through the grommet.

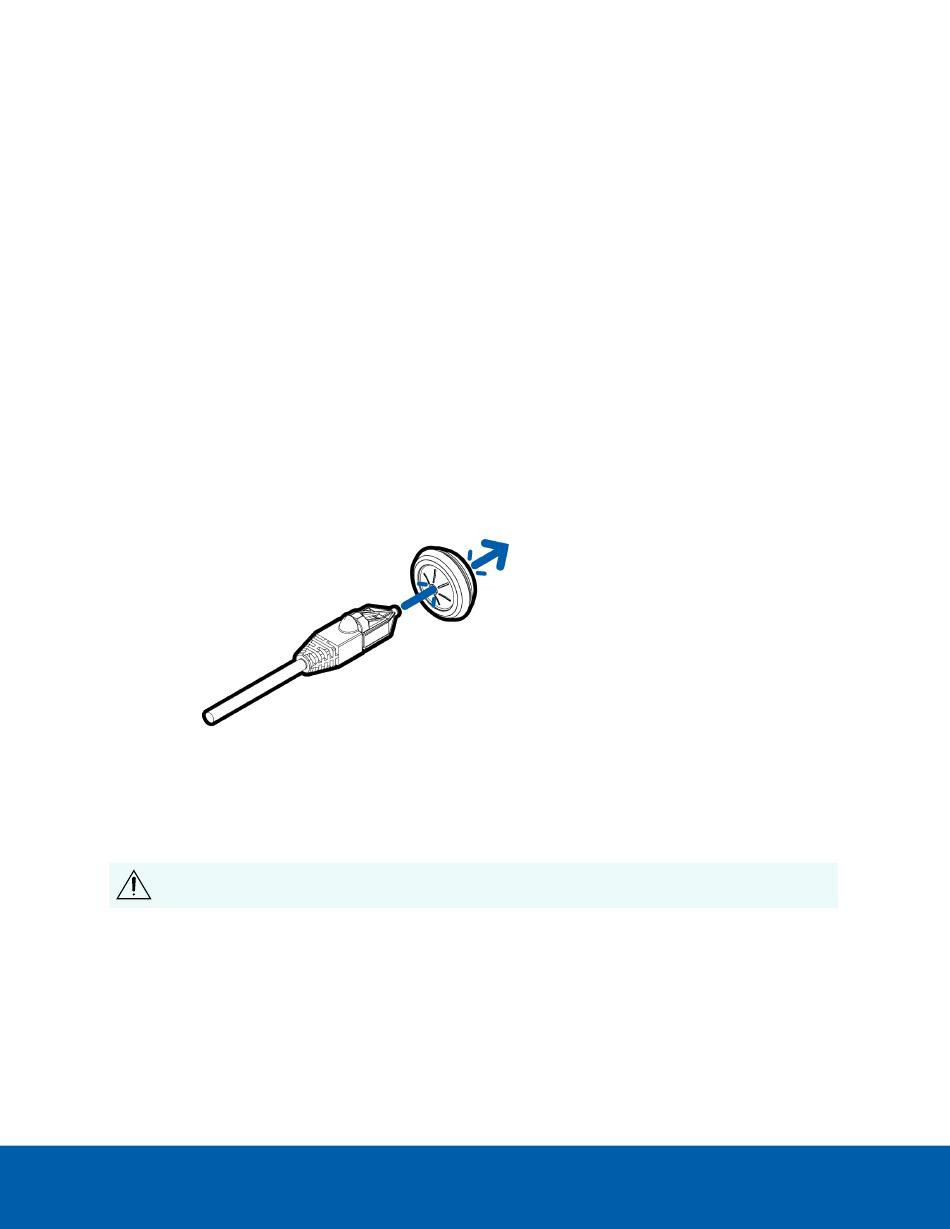

Ensure that the orientation of the cable and grommet matches the one shown in the figure.
4. Push any other required cables through the grommet.

Mounting the Dome Camera

CAUTION — This camera is designed for indoor use only.

Mounting the Dome Camera Using the Bottom Cable Entry Hole

Perform the following steps if the required cables will be coming out of the mounting surface. Use this
procedure on surfaces that can easily be cut, such as drywall, and when the cables should be kept out of
sight.
Inserting Cables through the Sealing Grommet 9
