Hella ONYX.TAG wind Installation Instructions And Instructions For Use

Installation instructions and Instructions for use
These instructions must be read
prior to installation

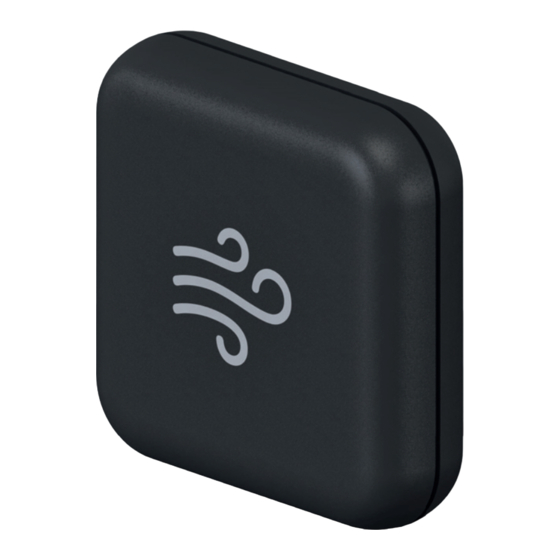

Wind sensor ONYX.TAG wind
Operating guidelines
Installation instructions and Instructions for use
Preliminary remarks HELLA
Wind sensor ONYX.TAG wind
With this HELLA product you have opted for a high-quality product with a most up-to-date
technology that can nevertheless be easily installed and operated. We describe the basic
installation, commissioning and operation of the wind sensor ONYX.TAG wind in these
instructions
The following symbols will assist you with the installation or use and require a safety-
conscious conduct:
Attention!
This symbol indicates instructions that, if disregarded, can put the user in
danger.
Attention!
This symbol indicates instructions that, if disregarded, can potentially result
in damage to the product.
This symbol indicates instructions for use or helpful information.
This symbol requires you to act.
This symbol indicates parts of the product, for which you will find important
information in these installation instructions.
Subject to technical modifications – Date of Issue May/2023
and use!
Installation instructions and Instructions for use
Table of Contents
Preliminary remarks HELLA Wind sensor ONYX.TAG wind.................................................3
General notes.......................................................................................................................4
Safety instructions ................................................................................................................5
Scope of delivery ..................................................................................................................6
Device description ................................................................................................................6
Technical data ......................................................................................................................7
Installation ............................................................................................................................8
Configuration ......................................................................................................................10
Status bar ...........................................................................................................................11
Replacing the battery..........................................................................................................12
Ideal use of the radio signal................................................................................................12
Fault removal......................................................................................................................13
Disposal..............................................................................................................................14
Installation instructions and Instructions for use
General notes
Questions
In case of questions concerning the installation or the use of your product, please consult
your authorized specialist shop.
Warranty
Warranty claims are subject to statutory limitation periods. Service parts are excluded
from the warranty; the same applies for changes in color and changes in characteristics
caused by UV radiation.
Liability
Should the notes and information given in these instructions be disregarded or if the
product is misused or used for the wrong purpose, the manufacturer declines the
guarantee for damage to the product. In these cases the liability for consequential
damage to any parts or persons is ruled out as well
Legal notes
The graphs and texts of these instructions were carefully prepared. We cannot be held
liable for any errors and their potential consequences! Subject to technical modifications
to the product and to these instructions! These instructions include copyrighted
information. All rights reserved! The listed product or brand names are trademarks of the
respective owners.
EC declaration of conformity
The HELLA Sonnen- und Wetterschutztechnik GmbH hereby declares that this product
complies with the basic requirements and the other applicable regulations of the EC
directives. The complete declaration of conformity can be found in the download area of
our website https://www.hella.info.
3 4 Subject to technical modifications – Date of Issue May/2023
