Nevco 651 Baseball Operator Instructions Manual

Scoreboard mpc control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

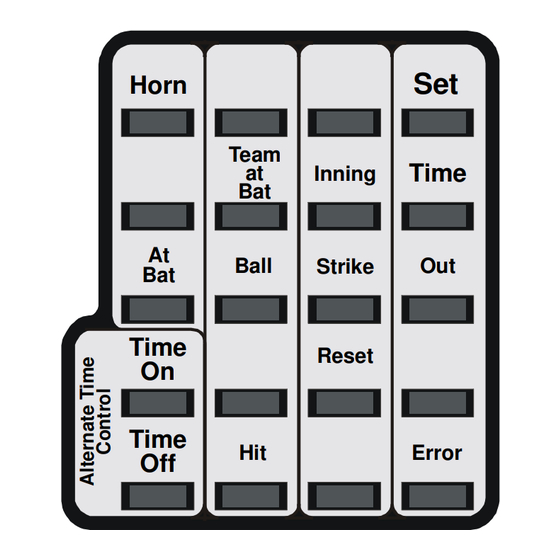

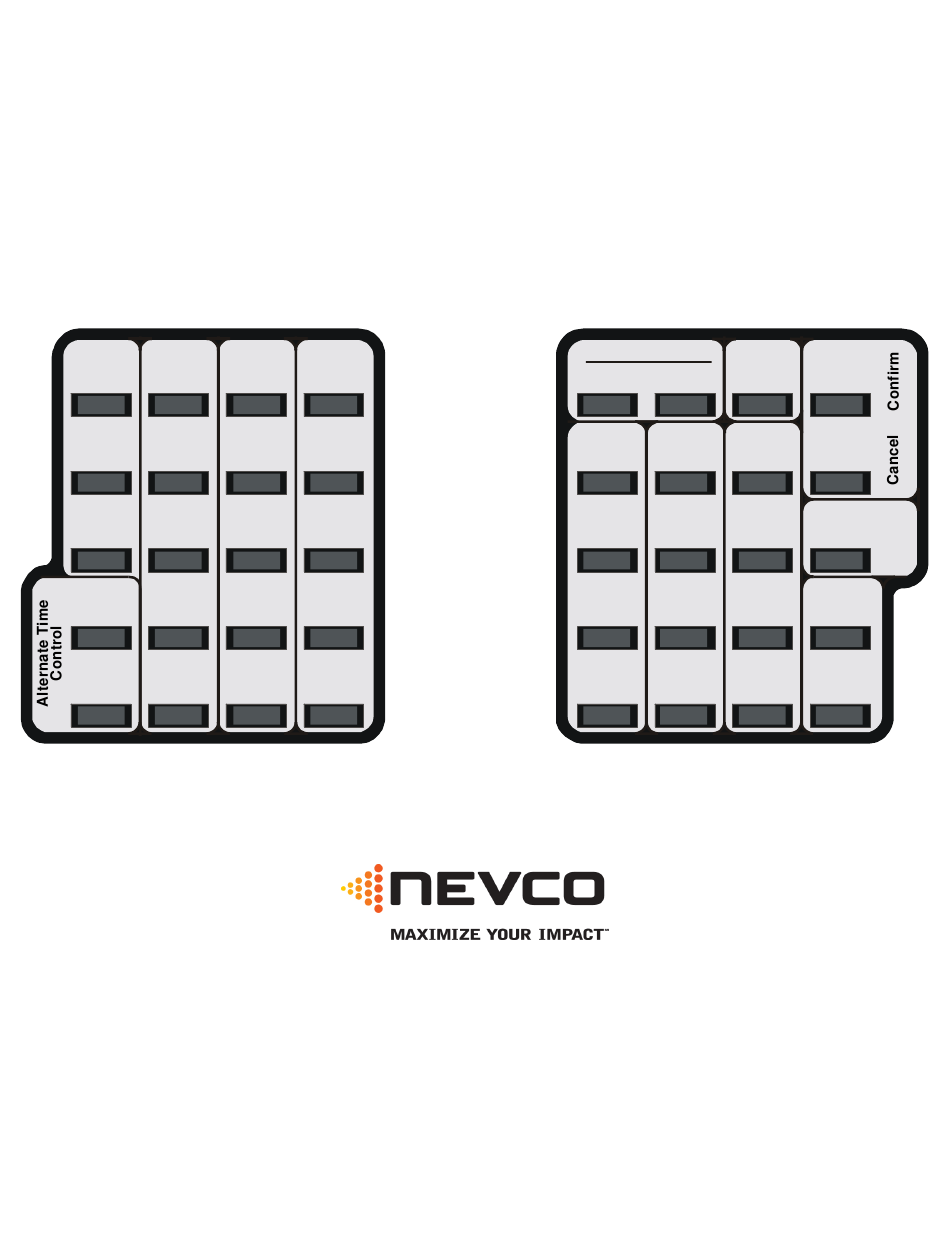

Scoreboard Operator's Instructions
Horn
Team
at
Bat
At
Ball
Bat
Time
On
Time
Hit
Off
Some features on the keyboard overlay may not be included on the particular model being operated.
Rev. 04/08/2009
MPC Control
Model Code 651
Set
Time
Inning
Strike
Out
Reset
Error
Since 1934
Retain this manual in your permanent files
Baseball
Time Out Timer
Start
7
4
1
Options
Yes
Clear
8
9
No
5
6
Chronometer
(Time of Day)
Home
2
3
Score
Guest
0
Blank
Score
135-0075

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 651 Baseball and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nevco 651 Baseball

Summary of Contents for Nevco 651 Baseball

  • Page 1 Scoreboard Operator’s Instructions MPC Control Model Code 651 Baseball Time Out Timer Options Horn Start Clear Team Time Inning Chronometer Ball Strike (Time of Day) Time Home Reset Score Time Guest Error Blank Score Some features on the keyboard overlay may not be included on the particular model being operated. Since 1934 Retain this manual in your permanent files Rev.
  • Page 2 7430-Baseball Thank You Thank You for choosing NEVCO. We appreciate your business. The following instructions will help you become familiar with the operation and features of the scoreboard system. Please take a few minutes to study this manual, and to practice with the control.
  • Page 3 Figure 1 – MPC Control (front view) MPC Control Can operate scoreboards for a wide range of sports and features. Power Supply 9 V DC (included with the control) Overlay Fits on top of control to label the keys (included with system) A TCS-5 time control switch is included with each control.
  • Page 4 Figure 2 – MPC Control (rear view) MPC Control Universal – to change sports, change the Overlay and enter the new Model Code. Power Supply 9 V DC (included with control) Overlay For your scoreboard model (included with system) Coiled Cord Stretches to over 4 ft.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS START UP PROCEDURE ......................1 START WHERE TURNED OFF LAST?..................1 GO TO A BOOKMARK?....................... 1 ENTER YOUR MODEL CODE ....................1 QUICK START GUIDE ........................ 3 ........................... 3 ET THE NNING KEYBOARD FUNCTIONS ......................4 OPTIONS............................8 ........................

  • Page 6: Start Up Procedure

    START UP PROCEDURE When you turn the control on, the traveling display prompts you to “START WHERE TURNED OFF LAST?”, “GO TO A BOOKMARK?”, or “ENTER YOUR MODEL CODE”. Answer YES, NO, or enter the 3 character model code on the overlay.
  • Page 7 [ * READY * ] The control will display and the scoreboard(s) will turn on. THERE ARE NO GROUPS NOTE: If the control displays the message “ DEFINED IN THIS SYSTEM KEY. TO CREATE A NEW GROUP USE MODEL CODE 618 WITH THE SYSTEM KEY MANAGEMENT OVERLAY ”, then, turn the control off and follow the instructions that came with the System Key Management Overlay with model code 618 to set up the groups as...

  • Page 8: Quick Start Guide

    QUICK START GUIDE With the scoreboard on, and the control showing READY, you are ready to set the inning. * READY * Set the Inning to 1 Press [__INNING ____+ _] Inning The control will show Press [__INNING ____+1_] The control will show You are ready for the game to begin.

  • Page 9: Keyboard Functions

    KEYBOARD FUNCTIONS Use the key to respond to questions and to confirm data input. Use the key to respond to questions and to cancel an operation. Use the key ahead of a function key to initiate the direct entry mode or to change the settings in OPTIONS, CHRONOMETER, and TIME OUT TIMER, or to set the TIME, and other features.
  • Page 10 CHRONOMETER Pressing the key will cause the Time of Day to be displayed on the control. Chronometer (Time of Day) SET, then CHRONOMETER Pressing will enter the set up mode. The questions asked will depend on your system and its current configuration. NOTE: Some scoreboard models do not support all settings or options.
  • Page 11 Press TIME to recall the Aux time to the display. If other timers are in use, successive key presses will toggle Time among them. Press SET TIME to enter the Aux Time setting mode. The control will prompt [__SET__MM:SS_____] Enter the Minutes and Seconds as needed. Press YES to accept the time entered. Letters that have not been replaced with numbers will be replaced with zeros.
  • Page 12 Press BALL to display the ball count and enter the ADD mode. Ball [__BALL______1+___] The control might display . In this example the current ball count is 1 and the “+” indicates that the control is ready to add to the current count. Enter a single digit number or press NO or YES or another function key to abort and leave the data unchanged.

  • Page 13: Options

    OPTIONS Many options are available for modifying the way the scoreboard system works. The questions the control will ask and their order depends on the current system and settings. Pressing the OPTIONS key starts a scrolling report of the current system settings. This report will continue to repeat until a key is pressed. To change a setting, press SET OPTIONS and use the YES (confirm) and NO (cancel) keys to work your way through a series of questions that is based on your system and available options.

  • Page 14: The Set Options Menu

    The Set Options Menu DO YOU HAVE AN AUXILIARY TIME DISPLAY CONNECTED? The control will need to know if an auxiliary time display is connected as part of your system. The Auxiliary Time Display is used to display time (Main Time, Auxiliary Time or Time of Day). Auxiliary Time Display models include: 9410, 9510, 9405 and 9505.
  • Page 15 SET A BOOKMARK? A bookmark is like a picture or snapshot of all the data and configuration settings in the control. When you go to a bookmark, the control is restored to where it was at the time the bookmark was saved. Bookmarks can be edited by going to the bookmark, making the changes needed, then saving the bookmark again using the same bookmark number or a different one.

  • Page 16: Troubleshooting Chart

    Aux time is displayed on the auxiliary Minutes and seconds will be displayed The display will change only once each time display, but it is not counting during the last hour of remaining time minute If the problem persists please contact the Nevco Service Department. 800-851-4040...

  • Page 17: Glossary

    GLOSSARY ALTERNATE TIME CONTROL SWITCHES (keys): Located on the keypad, these 2 keys, TIME ON and TIME OFF, may be used instead of the Hand Held Time Control Switch. NOTE: These 2 keys are inactive while the Hand Held Time Control Switch is plugged in. To enable them, turn the control off, unplug the Hand Held Switch and restart the control.
  • Page 18 HAND HELD TIME CONTROL SWITCH: A hand held switch with a coiled cord that plugs into either side of the control. When connected, the alternate time control switches (keys) are disabled. (Makes it easier for another person to control the main time or sound the horn). INTERVAL HORN: A horn that sounds repeatedly at preset intervals throughout the game.

  • Page 19: My Bookmark Program Chart

    My Bookmark Program Chart Bookmark # 1 Model Code _______________ Bookmark # 2 Model Code _______________ Bookmark # 3 Model Code _______________ Bookmark # 4 Model Code _______________ Bookmark # 5 Model Code _______________...

  • Page 20: Appendix (Chronometer)

    Appendix ( Chronometer (Time of Day) A CHRONOMETER (Time of Day Clock) is built into the control Once set, it will maintain its accuracy even while the control is turned off or disconnected from power. During normal operation the Time of Day can be recalled to the display on the control by pressing a single key, the Chronometer key.
  • Page 21 Appendix Chronometer TURN CONTROL OFF BUT LEAVE CHRONOMETER TIME DISPLAYED? (Allows the control to be turned off, disconnected, and stored away in a safe location, while the scoreboard or auxiliary time display, or both, continues to display a running “time of day” clock.) DISPLAY CHRONOMETER TIME ON ALL DISPLAYS? (Scoreboard(s) and auxiliary time display(s))

  • Page 22: Example

    Appendix Chronometer EXAMPLE To Set The Chronometer: A. Set the Chronometer to 12:00:00 Do The Following Steps: Press SET --- then CHRONOMETER. DO YOU HAVE AN AUXILIARY TIME DISPLAY The control will ask --- CONNECTED? --- (Answer this question appropriately.) NOTE: This question is asked only once for each time the control is started fresh by entering a model code.
