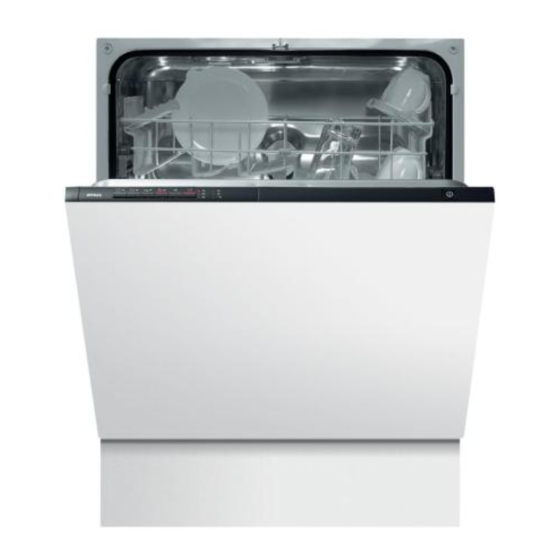

Summary of Contents for Atag VA6111PT

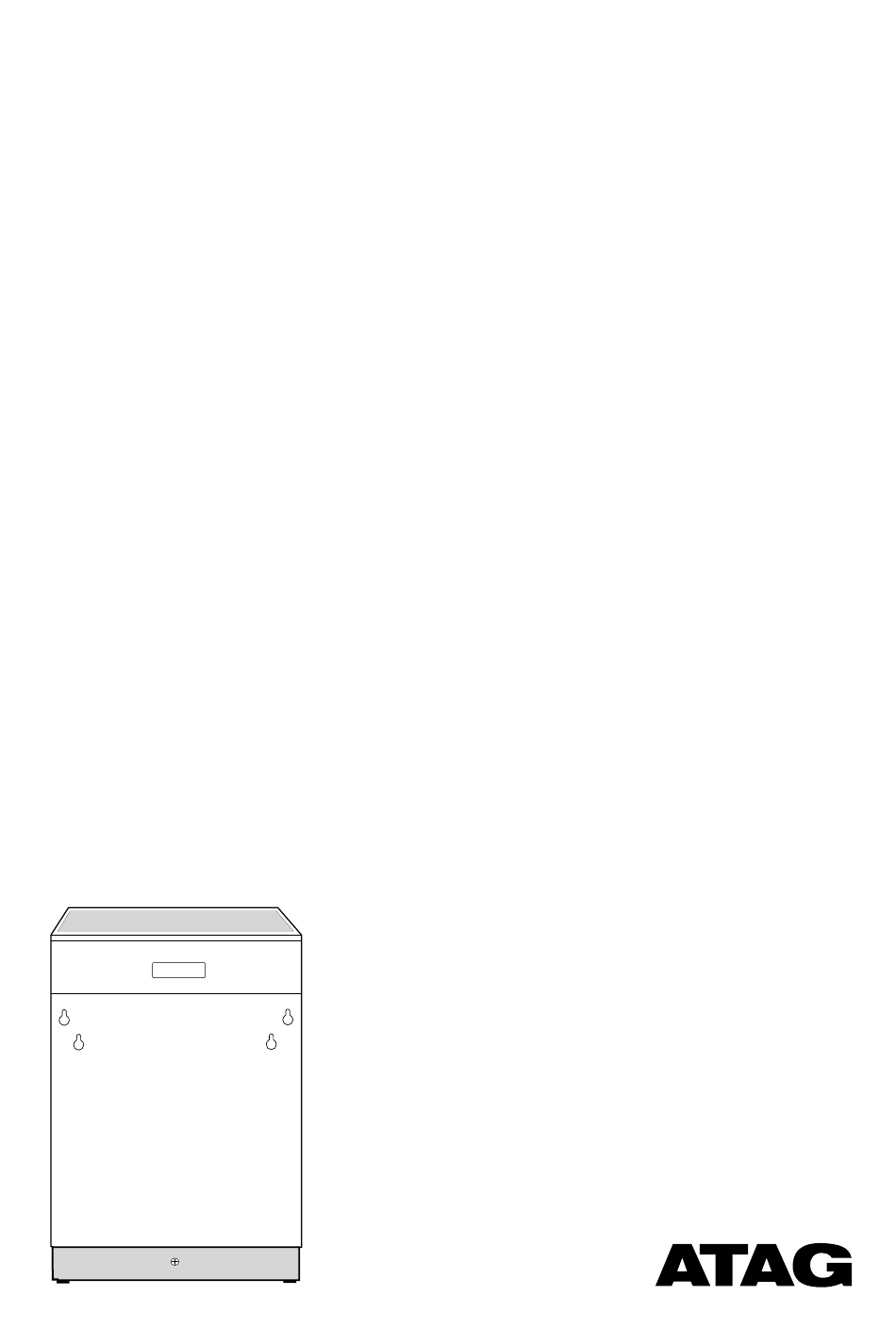

- Page 1 VA6111PT COP04...
-
Page 2: Table Of Contents
Contents Safety instructions Maintenance and cleaning Cleaning the filters Disposal Prolonged periods of non-operation Frost precautions Economical and ecological dishwashing Moving the machine Installation instructions Something not working Building-in Service and spare parts Levelling Fixing to the adjacent units Hints for test centres Water supply connections Water inlet hose with safety valve Water outlet hose connection... -
Page 3: Safety Instructions
Safety instructions It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. -
Page 4: Installation Instructions
Installation instructions Any electrical and/or plumbing work required to install Water supply connections this appliance should be carried out by a qualified This dishwasher may be fed with either hot (max. 60°) or cold electrician and/or plumber or competent person. water. -
Page 5: Water Outlet Hose Connection
Water outlet hose connection Electrical connection The end of the drain hose can be connected in the following Information concerning the electrical connection is given on the ways: rating plate on the edge of the dishwasher’s door. 1. To the sink outlet spigot, securing it to the underside of the Before plugging the appliance into the wall socket, make sure work surface. -
Page 6: Description Of The Appliance
Description of the appliance Upper basket spray arm and lower spray arm Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Rating plate Filters... -
Page 7: The Control Panel
The control panel Half load button Function buttons Programme selection buttons Indicator lights On/Off button Delay start button Function buttons: Audible signals in addition to the dishwashing programme selected, the following functions can also be set Audible signals have been introduced to help indicate which with the help of these buttons: operations the dishwasher is performing: - the setting of the water softener,... -
Page 8: Prior To Using For The First Time
Prior to using for the first time Before using your dishwasher for the first time: b) Setting electronically (The dishwasher must be switched off) 1. Ensure that the electrical and water connections comply with the installation instructions The dishwasher is factory set at level 5. 2. -
Page 9: Filling With Dishwasher Salt
Filling with dishwasher salt Rinse aid Only use salt specifically designed for use in Rinse aid is automatically added during the last rinse, ensuring dishwashers. thorough rinsing, and spot and streak free drying. All other types of salt not specifically designed for use in The dispenser, which is positioned inside the door, holds about a dishwasher, especially table salt, will damage the water 110 ml of rinse aid, which is sufficient for between 16 and 40... -
Page 10: In Daily Use
In daily use Check if it’s necessary to refill with dishwasher salt or rinse Loading cutlery and dishes Sponges, household cloths and any object that can Load cutlery and dishes into the dishwasher. absorb water may not be washed in the dishwasher. Fill with dishwasher detergent . -
Page 11: The Cutlery Basket
The cutlery basket The upper basket Load smaller, fragile crockery and long, sharp cutlery in the Sharp knives and other items of cutlery with sharp edges upper basket. must be laid in the cutlery rack or in the upper basket to avoid the risk of injury. -
Page 12: Adjusting The Height Of The Upper Basket
Adjusting the height of the upper basket Use of detergent Only use detergents specifically designed for use in Maximum height of the dishes in dishwashers. upper basket lower basket Using no more than the correct amount of detergent With upper basket raised 22 cm 30 cm contributes to reducing pollution. -
Page 13: Different Kinds Of Detergent
Different kinds of detergent Detergent tablets Use of "3 in 1" combi detergents Detergent tablets from different manufactures dissolve at These products are detergents with a combined cleaning, different rates. For this reason, some detergent tablets do not rinsing and salt function. attain their full cleaning power during short washing 1. -
Page 14: Washing Programmes
Washing programmes Programme Degree of soil Half load Cycle description (2) Consumption values Energy Water Programme type of load consumption consumption duration (in kWh) (in litres) (in minutes) Hot prewash Heavy soil. Main wash up to 70°C Intensive 70° Crockery, cutlery, Yes* 2 warm rinses 110 - 120... -
Page 15: Starting A Washing Programme
Starting a washing programme In this fully integrated appliance the controls are located on the Cancel a washing programme in progress top of the door. When selecting a programme, the door needs Open the dishwasher door. to be open. Press simultaneously function buttons 2 and 3 for about 2 seconds, the indicator light of the button corresponding to the running programme starts flashing. -
Page 16: Maintenance And Cleaning
Maintenance and cleaning Clean the external surfaces of the machine and control panel 7. Put the flat filter (3) back in the base of the washing with a damp soft cloth. If necessary use only neutral compartment. detergents. Never use abrasive products, scouring pads or 8. -
Page 17: Something Not Working
Something not working Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions given here, without calling out an engineer..a flashing fault code appears The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard. Open the dishwasher’s door. -
Page 18: Service And Spare Parts
...the wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded. The spray arms do not rotate freely due to wrong arrangement of the load. -
Page 19: Hints For Test Centres
Hints for test centres Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart). Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes"... - Page 20 Nederland Home Product Service (ATAG) Postbus 249 6920 AE DUIVEN tel: 0900 - 5550001 fax: 026 - 8821444 België ATAG België NV 9420 Erpe-Mere tel: 053 - 806208 fax: 053 - 806057 Postbus 1033 • 6920 BA Duiven • Nederland...
