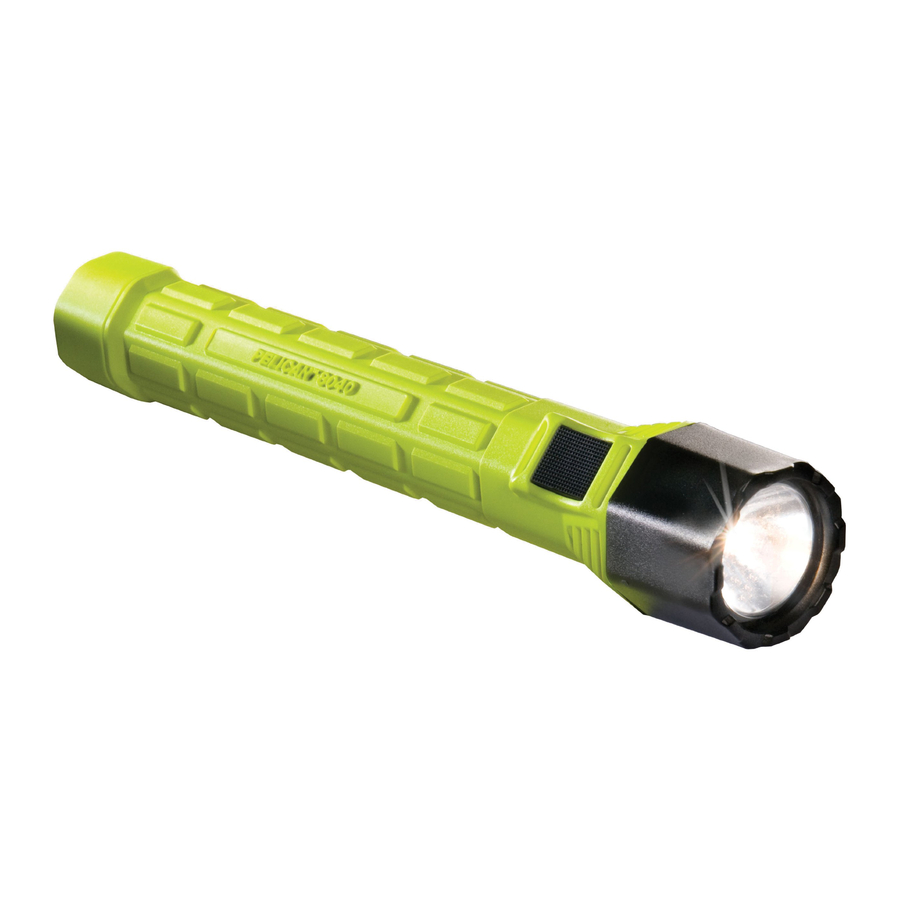

Pelican M10 8040 - Xenon Flashlight Manual

PLEASE READ!

VERY IMPORTANT SAFETY INSTRUCTIONS

Before disassembling any part of the M10 flashlight, ensure that the flashlight has not been operating for five (5) minutes prior to replacing the lamp module. During operation, the lamp module can become extremely hot and may cause injury if touched.

BATTERY INSTALLATION

1. Remove the end cap by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by the polarity sticker.
3. To replace the end cap place end cap squarely on threads and turn clockwise while pressing on the end cap slightly.

ON/OFF

1. For MOMENTARY operation gently press down on the rubber switch cover of the flashlight and the M10 will operate until pressure is released.
2. For CONTINUAL operation press firmly down on the rubber switch cover until a "click" is heard and release.

To turn off press down on the switch cover again until a "click" is heard and release.

LAMP REPLACEMENT

1. Allow flashlight to remain off for 5 minutes prior to lamp replacement.
2. Unscrew the lens assembly.
3. Remove the lamp module and replace with a new lamp module.
4. Replace the lens cover assembly.

HYDROGEN GAS ABSORBER

Internal catalyst pellets, located on the lamp, are there to help absorb hydrogen gas that could possibly be emitted by defective, leaking, reversed polarity or heavily discharged batteries. If the pellets become lost or damaged, replace lamp immediately. If pellets become wet, let them air dry or replace. Pelican Products assumes no liability for any brand batteries which are defective or cause injury to anyone when used in any Pelican flashlight.

Do not mix battery brands or use Nicad or Zinc Carbon batteries or old/new batteries.

Explosion Hazard - Batteries must only be changed in non-hazardous locations.

Explosion Hazard - Substitution of components may impair suitability for use in hazardous locations.

STATIC HAZARD - Clean only with a damp cloth

O-RING MAINTENANCE

Check closely for cuts, scratches, or otherwise damaged O-ring or mating lens lip surface. Remove any dirt or foreign matter from O-ring sealing surfaces. Keep threads, O-ring groove and inside lip of lens lubricated with silicone grease. See Warranty information for replacement of O-ring.

PRODUCT SPECIFICATIONS

Lamp Type: Xenon

Lamp Life: 30 hours

Battery Type: 1.5V "C" Alkaline (4-cell)

Battery Brand: Energizer^®

REPLACEMENT PARTS
