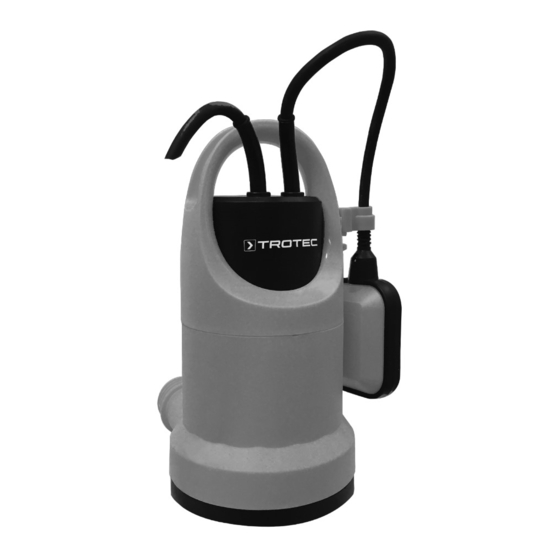

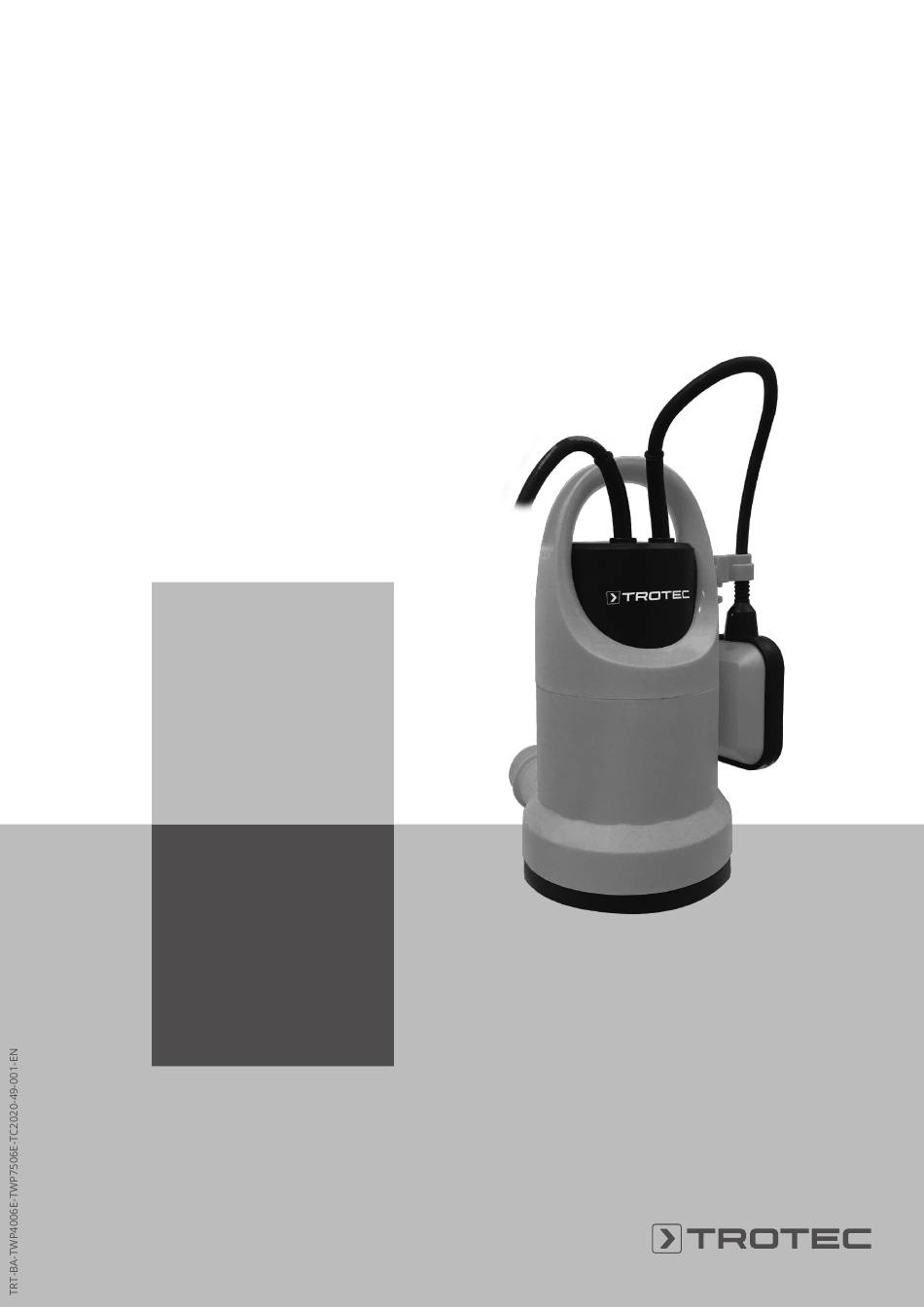

- Page 1 TWP 4006 E / TWP 7506 E OPERATING MANUAL SUBMERGED CLEAR WATER PUMP, NEAR-GROUND SUCTION...
- Page 2 Information marked with this symbol helps you to carry out your tasks quickly and safely. Follow the manual Information marked with this symbol indicates that the operating manual must be observed. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 3 • Wear sturdy shoes to protect yourself against electric specific requirements. shock. • Do not use the power cable to drag the device. • Provide appropriate frost protection. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 4 This symbol indicates that the mains plug must be – waste water from lavatories and urinal installations removed from the socket when the device is not in use. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 5 Switch the device off and let it cool down. Investigate the cause of overheating. Should the problem persist, please contact the customer service. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 6 Hose connection for a G1" / DN25 internal thread Hose connection for an inner diameter of 38 mm (with hose clamp) Hose connection for a G1½" / DN40 internal thread Accessories submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 7 If required, you can cut the reducer (7) off at the desired diameter. At delivery the reducer (7) is already assembled with the backflow preventer (8) and stainless steel washer (9) onto the elbow (10). submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 8 1. Screw the pipe connection or hose connection (internal thread G1" / DN25) onto the reducer (7). Alternatively, you can also screw the pipe connection or hose connection with the internal thread G1½" / DN40 directly onto the elbow (10). submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 9 In order to adjust the desired pumping height, insert the cable of the float switch (4) through the float switch locking device (3). submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 10 4. Attach the end of the nylon cord to an easily accessible position, so you can pull the device back out after pumping has been completed. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 11 2. Pull the device out by means of the nylon cord. 3. Disconnect the connection line. 4. Clean the device according to the Maintenance chapter. 5. Store the device according to the Storage chapter. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 12 5 mm, which could clog up the device. • Check whether the used hose diameter is too small. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 13 Safety signs and labels on the device Check the safety signs and labels attached to the device at regular intervals. Replace illegible safety signs! • Rinse the intake opening with clear water. submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 14 Height for switch-off 100 mm 120 mm Hose connection, inner diameter 25 mm; 38 mm 25 mm; 38 mm Threaded connection G1" / DN25 G1" / DN25 G1½" / DN40 G1½" / DN40 submerged clear water pump, near-ground suction TWP 4006 E / TWP 7506 E...
- Page 15 TWP 4006 E / TWP 7506 E...
- Page 16 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
