Ampac 4310-0086 Installation Manual

32 Zone Indicator Module
Installation guide
Introduction
The 32 Zone Indicator Module Kit consists of:
• 1 x BRD43ZAMC'x'-A
• 1 x DEC1515-T2
• 1 x ENC1824-A
• 1 x ENC1825-A
• 4 x LAB1516
1 x CAB1905 RJ45 Cable
•
Description
The 32 Zone Indicator card has 32 bi-coloured LED's
which can be used to display the status of up to 32
Zones.
The zone numbers assigned to each LED are
configurable and the LED's will operate in the following
manner for the respective zone statuses:
ZONE STATUS LED STATE
FIRE ON STEADY
DEPENDENCY B FLASH
DISABLED ON STEADY
FAULT FLASH
ALL OTHER OFF
The card will also respond to a lamp test when
instigated on the panel to which it is connected.
Installation
Observe anti-static precautions at all times
1. Power down and disconnect the batteries
Mounting
2. The module should already be mounted to
ENC1824-A / ENC1825-A. (Figure 2)
3. Mount the module in the next free ancillary cutout
at the Fire Alarm Control Panel.
Connecting to the FACP
4. Set the required Address for the 32 Zone Indicator
card using the 4 way dip switch (Figure 3)
5. If fitted as the last module the EOL link needs to be
fitted (Figure 3)
6. Using the supplied RJ45 cable connect the 32
Zone Indicator card to the applicable Fire Alarm
Control Panel (FACP) (see Figure 4 & 5 overleaf)
7. Power up the panel and reconnect the batteries
8.
9.
LED COLOUR
RED
RED
YELLOW
YELLOW
n/a
Using the applicable
ConfigManager (FireFinder Plus) or LoopMaster
(LoopSense) configure the 32 ZAMC board
Test

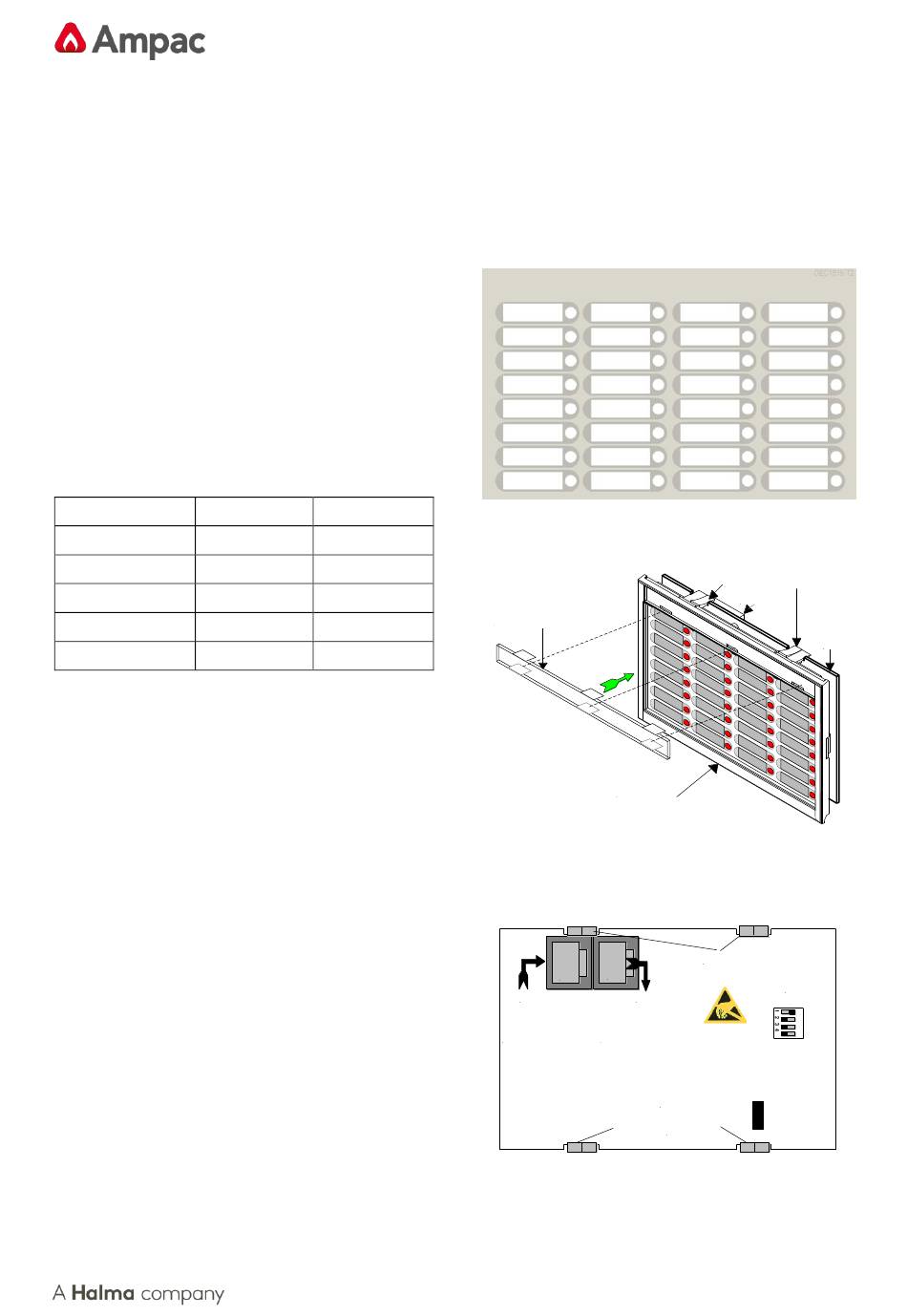

Figure 1: DEC1515-T2
Clear Plastic Clip In Label Holder
Clip On Plastic Surround
( Remove to Insert Labels )
To Remove Push Down
Here and Lift Upwards
Figure 2: 32 Zone Mimic ENC1824-A / ENC1825-A
Mounting
C
C
N
N
PCB Securing Clips
1 2
In
Out
RS485 Control RS485 Control
/ 27VDC / 27VDC
Comms In Comms Out
Fit EOL Termination Link
if Last Module
on Comms Bus
Bottom Card &
PCB Securing Clips
Figure 3: Rear View 32 Zone Alarm Mimic Card
MAN3014-1
Item Number: 4310-0086
Configuration tool
Panel & PCB Securing Tabs
Connectors
PCB
Top Card &
Address
Switch
Set to 1
ON
1
