RAILKING M-1a MOUNTAIN
STEAM ENGINE
OPERATING INSTRUCTIONS

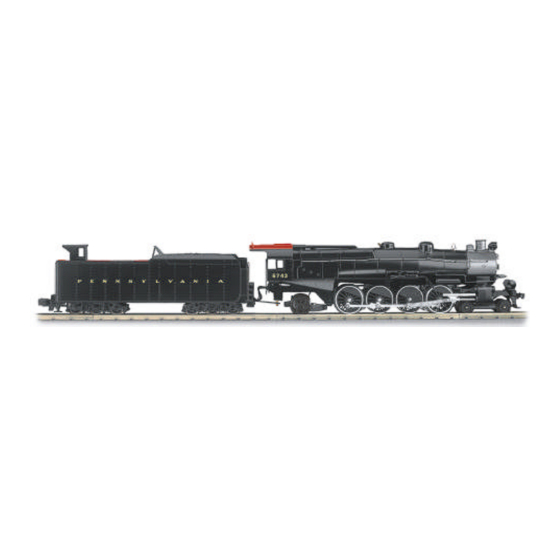

This RailKing M-1a Mountain Steam Engine is produced in detailed Die-Cast Metal and
operates on O-31 track. This RailKing Steam Engine contains M.T.H.'s Loco-Sound™
sound and train control system. The locomotive is easy to operate with any compatible
standard AC transformer (see the compatibility chart on page 14), and is completely
compatible with most other 3-rail locomotives, rolling stock, and accessories.
M.T.H. takes pride in manufacturing high quality products like your RailKing steam
engine, and we hope that you will enjoy it for a long time. Please read all the
accompanying instructions carefully before setting up and operating your locomotive.
With proper care, this engine should yield years of trouble-free performance.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MTHTrains RAILKING M-1a MOUNTAIN STEAM ENGINE
Summary of Contents for MTHTrains RAILKING M-1a MOUNTAIN STEAM ENGINE
- Page 1 STEAM ENGINE OPERATING INSTRUCTIONS This RailKing M-1a Mountain Steam Engine is produced in detailed Die-Cast Metal and operates on O-31 track. This RailKing Steam Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformer (see the compatibility chart on page 14), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories.
- Page 2 Volume Control Maintenance Lubrication and Greasing Instructions Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Smoke Unit Maintenance Locomotive Light Bulb Replacement Troubleshooting Compatibility Transformer Compatibility Chart Safety Precautions Service and Warranty Information RailKing M-1a Mountain Steam Engine...
- Page 3 O-31 circles of track. The second hole is for O-72 or larger operation. At this point, you are ready to begin running your engine. RailKing M-1a Mountain Steam Engine...
- Page 4 To prevent accidental high-speed start-ups, this engine is programmed to restart in neutral each time the track voltage is turned off for 25 seconds or more. RailKing M-1a Mountain Steam Engine...
- Page 5 1 whistle, 3 bells code to return the engine to its normal state. Feature to Be Activated: Button Code: Speed Control On/Off 1 Whistle, 2 Bells Lock into a Direction/Unlock 1 Whistle, 3 Bells RailKing M-1a Mountain Steam Engine...
- Page 6 If you experience popping and interference, try cleaning the track with denatured alcohol as described in the “Cleaning the Wheels, Tires and Track” section of this booklet. Note: M.T.H. does not recommend using Proto-Cast and Proto-Dispatch at the same time. RailKing M-1a Mountain Steam Engine...
- Page 7 – To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the tender clockwise to increase the volume and counter-clockwise to decrease the volume (see Fig. 1). Loco-Sound Volume Adjustment Figure 1. Loco-Sound Volume Adjustment Knob RailKing M-1a Mountain Steam Engine...
- Page 8 Follow the grease points shown on Fig. 3. Grease Pivot Point (G) Grease Screw (G) Grease Pivot Point (G) Figure 3. Greasing Points on the Engine and Body Mounting Screws RailKing M-1a Mountain Steam Engine...
- Page 9 One set of replacement tires is included with the model. Additional tires are available directly from the M.T.H. Parts Department (phone: 410-381-2580; fax: 410-423-0009; e-mail: parts@mth-railking.com; mail: 7020 Columbia Gateway Drive, Columbia MD 21046-1532). RailKing M-1a Mountain Steam Engine...
- Page 10 If you experience poor or no smoke output when the smoke unit is on and has fluid, check the wick Figure 6. Smoke Unit to see if it has become hard, blackened, and Inspection Cover unabsorbent around the heating element. Remove RailKing M-1a Mountain Steam Engine...
- Page 11 You can obtain replacement bulbs directly from the M.T.H. Parts Department. HeadLight Figure 7. Replacing the Headlight Pull wire Unplug wires from housing from harness Figure 8. Replacing the Lantern Light on the Front of the Boiler RailKing M-1a Mountain Steam Engine...
- Page 12 “Lock into a Direction” section. The engine won’t lock into forward, Engine speed must be below 10 scale mph (approx. 10 volts or less in neutral, or reverse. conventional mode). RailKing M-1a Mountain Steam Engine...
- Page 13 This engine will operate on any traditional O-31 or larger O Gauge track ® ™ system, including M.T.H.’s RealTrax or ScaleTrax or traditional tubular track. It is also compatible with most standard AC transformers. (See page 14 for a complete list of compatible transformers and wiring instructions.) RailKing M-1a Mountain Steam Engine...
- Page 14 Lionel SW Unknown 130-Watt Standard Lionel TW 8-18v 175-Watt Standard Lionel ZW A,B,C or D 8-20v 275-Watt Standard Lionel Post-War 0-20v Electronic A,B,C or D Common 135/190 Watt Celebration Series ZW * Conventional Mode Only RailKing M-1a Mountain Steam Engine...
- Page 15 In the event such conditions exist, the transformer should not be used until properly repaired. As with all electrical appliances, this product should not be left in operation when unattended. RailKing M-1a Mountain Steam Engine...
- Page 16 Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
