main menu

safety settings

...
main menu

relay/controls

...
122

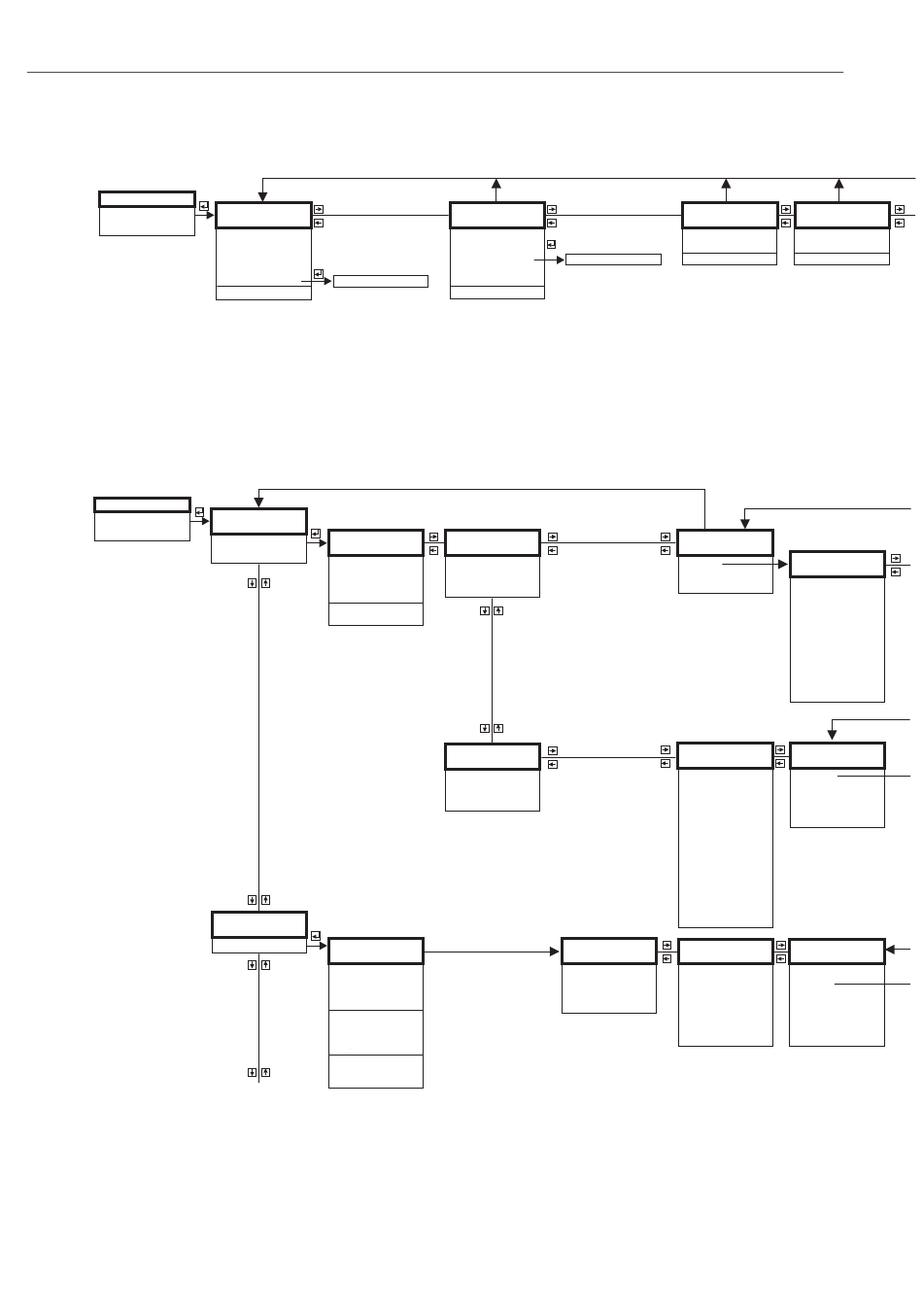

14.3 "Safety settings"
AX101
output on alarm
output 1:
min.
max.
hold
user specific output value 1
(output 2:)
14.4 "Relay/Controls"
14.4.1 Pump control/rake control
R1001
relay/controls
R1300
pump control 1
pump control 1
(pump control 2)
reference:
none
level 1
(level 2)
number of pumps:
Default: 1
R1001
relay/controls
rake control
R1200
rake control
upstream water:
none
level 1
level 2
downstream water:
none
level 1
level 2
function:
difference
ratio
Prosonic S FMU90 - flow measurement - HART
ESC
AX102
outp. echo loss
level 1:
hold
customer spec.
value level1
alarm
(level 2:)
R1301
pump control 1
function:
limit control
R1301
pump control 1
function:
rate control
R1201
rake control
switch on point:
default: 20% / 0.8
switch off point:
default: 10% / 0.9
ESC ESC
AX103 AX104
delay echo loss safety distance
delay sensor 1 saf. dist. sen 1
Default: 30s Default: 0,1 m
(delay sensor 2) (saf. dist. sen 2)
L00-FMU90xxx-19-03-01-en-001
ESC
R1302
pump control 1
R1303
pump 1
pump 1 control 1
pump 2
... switch on point:
default: 60%
switch off point:
default: 40%
switch on delay:
default: 0 s
alternate:
no
yes
crust reduction:
Default: 0 %
R13A3 R13A2
pump control 1 pump control 1
switch on point: pump 1
(pump 2)
default: 60%
switch off point: ...
default: 40%
min.pumprate/min:
default: 0 %
hook up interval:
Default: 0 s
switch on border
Default: 0%
crust reduction
default: 0%
alternate:
no
R1202 RX203
rake control relay allocation
switch delay: relay 1:
relay 2:
default: 0 s
error handling: ...
actual value
hold
switch on
switch off
L00-FMU90xxx-19-04-01-en-001
