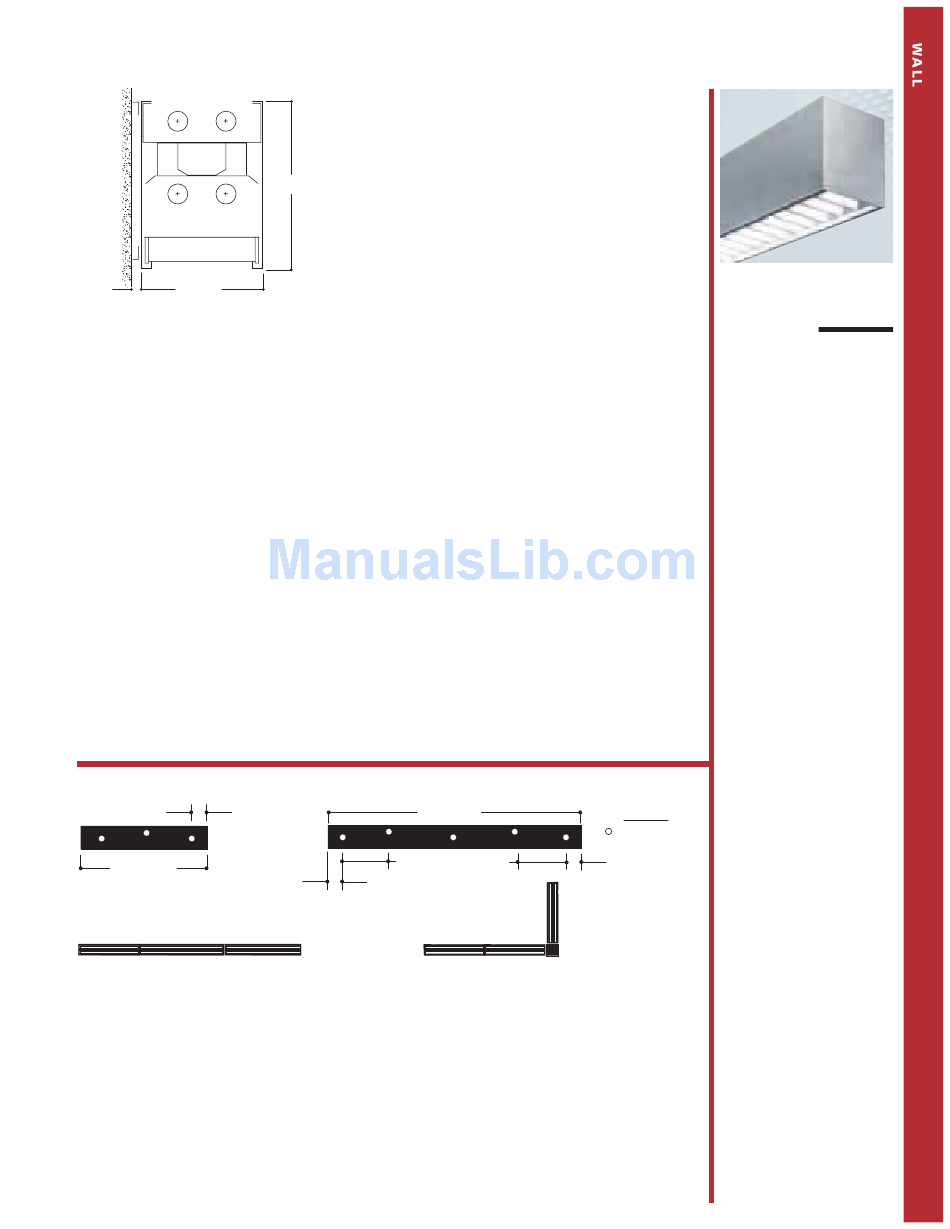

Cooper Lighting Neo-Ray Geo 14-DIW Specification

1/2" [13mm] 6" [153mm]
Construction
20-gauge steel housing. Nominal 3', 4', 6' or 8'
illuminated sections.
Shielding
White bold baffle louver, White acrylic diffuser,
Prismatic acrylic lens or Parabolic baffle shielding.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
End Caps
20-gauge steel construction.
Mounting
Wall mounted.
M O U N T I N G H O L E PAT T E R N
5" [127mm]
48" [1219mm]
Illiminated runs are created by butting standard 3', 4', 6' or
8' sections resulting in runs to the nearest 1' increment.
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 14DIW-21T8-40-1EB-SI-S58
Series
14=Geo
Light Output
8-1/4"
DI=Direct/Indirect
[210mm]
Mounting
W=Wall
Number of Lamps
1=1 Lamp
Lamp Type
T8 T5
Run Length
Overall Nominal Run Length__ft. (Any combination of 8', 6', 4' and 3'
sections)
Voltage 1
1=120V 2=277V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S22=White Acrylic Diffuser
S72=White Bold Baffle
S58=KSH-12 Clear Acrylic Prismatic Lens
S79=Semi-Specular Aluminum Parabolic Baffle
1 Due to various constraints, some options may not be combined with others.
96" [2438mm]
19" [483mm] 19" [483mm]
5" [127mm]
Patterns are constructed from rows
with 6" square non-illuminated
fillers at the corners. Corners
contain specified diffuser but,
Corners are not illuminated
(per cross section) (not included)
2=2 Lamps
T5HO
3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching
LEGEND
11 /16" DIA. K.O's
5" [127mm]
.
NEO-RAY ™
GEO
14-DIW
D I R E C T- I N D I R E C T
• Direct – indirect light
distribution.
• The light is continuous and
unbroken.
• Discrete direct and indirect
lighting for 3 distinct
distributions.
• Die formed steel housing,
nominal illuminated sections
3', 4', 6' and 8'.
• Runs provided to the nearest
foot.
• Patterns are formed by
butting standard sections.
• Selection of diffuser
options.
• Rigid 'U' shaped trim with
3/8" regress soft lit edge.
• Housings may be special
ordered custom finished.
COOPER LIGHTING
743
