Lemco Micro Line MLF- 301 Quick Start Manual

Quick start Guide

1. INTRO

Congratulations on purchasing the MLF-301. You now own a high quality, professional mini
DTV headend. To get the most out of your purchase, please take the time to carefully read
through this quick start guide.

2. INSTRUCTIONS

2.1 - Description

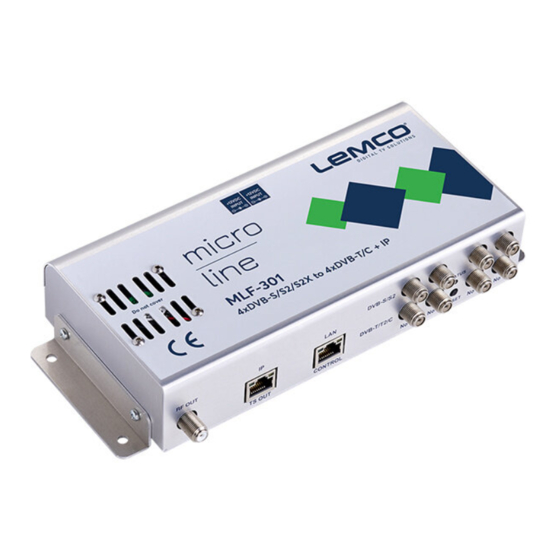

The MLF-301 is a very powerful, all-in-one mini headend device, able to receive up to 4 inde-
pendent satellite (DVB-S/S2/S2X) signals and convert them either in 4 x DVB-T/C RF output
channels or in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLF-
301 supports "multistream" satellite reception too.
It supports "pool" technology, meaning that the user is able to select any program from any
of the 4 inputs and assign them to any of the 4 RF or IP outputs providing great flexibility.
The embedded web server of the MLF-301 provides a very friendly user interface as well as
the ability of remote or local control of the device via LAN.
Its small size and its powerful features render the MLF-301 the ideal solution in case we want
to distribute FTA (Free-To-Air) TV programs coming from satellite (DVB-S/S2/S2X) sources to
a CATV installation using the DVB-T/C or IPTV technology.
3.2 - FEATURES
