Page 1 OWNER’S MANUAL...
Page 2 ® vehicles for efficient and fun transportation. Our designs intentionally create a culture built on quality, creativity, fun and individuality. Before you drive your PHAT Scooters Electric Scooter, please carefully ® read the specifications in this operating manual and conduct a complete inspection of the scooter.
Page 3: Notes
Do not exceed the carrying capacity of your scooter, which is rated at 440lbs. 4. Do not disassemble the battery and motor. All replacement parts must be purchased from PHAT Scooters ® For the safety of others, your scooter should only be operated by those who have thoroughly read and understand this operating manual prior to operating the scooter.
Page 4: Table Of Contents
TABLE OF CONTENTS - Preface - Terms and Conditions - Notes - Troubleshooting - PHAT Scooter Components - Return Policy ® - Main Technical Parameters - Features Overview - Cleaning - Battery Handling Protocol - Battery Charging Protocol - How to Charge Battery - Battery Operation, Maintenance &...
Page 5 COMPONENTS LCD DISPLAY WITH KEY-LESS PUSH BUTTON START & ALARM PUSH BUTTON START DRIVE MODE INDICATOR ODOMETER ERROR CODES BATTERY INDICATOR SPEEDOMETER METER GEAR INDICATORS WWW.PHATSCOOTERS .COM...

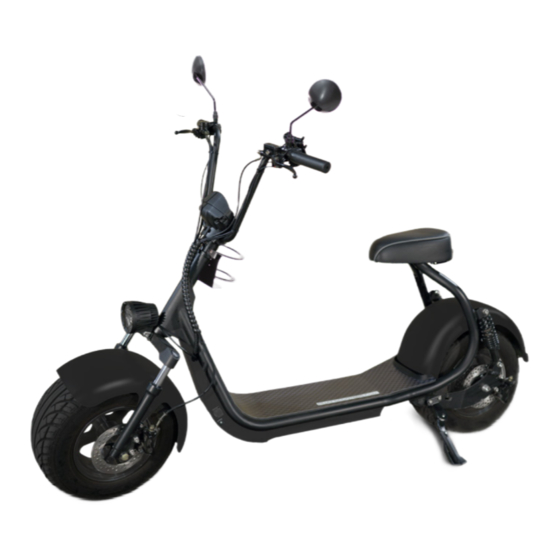

Page 6 COMPONENTS (cont’d) - SAFETY THROTTLE - PHONE HOLDER - LCD DISPLAY WITH KEY-LESS PUSH BUTTON START & ALARM - UV AND WATER RESISTANT SINTEX SEAT - DRINK HOLDER - SUPER BRIGHT HEADLIGHT FOCUSED ON THE ROAD - MAGNETIC DECKS THAT ARE INTERCHANGEABLE - UPGRADED SUSPENSION - 3000 WATT MOTOR FOR BETTER HILL CLIMB - REMOVABLE QUICK-CHARGE BATTERY...
Page 7 COMPONENTS (cont’d) WWW.PHATSCOOTERS .COM...
Page 8: Main Technical Parameters
MAIN TECHNICAL PARAMETERS Front Brake Hydraulic disc brake+EABS Rear Brake Hydraulic disc brake+EABS Front /Rear Tire 18 × 10” - 225/45 -35N Tire Motor 3000 Watt Front Fender Frame Steel Wheelbase 53 inches Seat Height 32 inches Battery 72v 23AH: Lithium Ion Charging Time 3 Hours Range Per Charge**...
Page 9: Features Overview
FEATURES OVERVIEW PHAT Scooters use an ultra-thin lithium NMC battery and a simple scooter ® structure with a 8-10 inch-wide wheel. Battery: The lithium NMC battery is small, light-weight, and safe. It provides a minimized carbon footprint along with a long service life.
Page 10: Cleaning
Prior to cleaning, turn the scooter off and remove the key. Dust all exposed parts, using a soft, smooth and dry cloth. Clean your PHAT Scooters using tap water and a neutral ® detergent. Wipe clean with a soft, damp cloth to remove dirt and grime.
Page 11: Battery Handling Protocol
Never insert anything into the terminals, especially metal objects. • Always be mindful of correct terminal orientation to prevent reverse polarity. WARNING: In case of any odors, overheating, or deformation of the battery keep away from the battery and call PHAT customer service 866- 972-6687. WWW.PHATSCOOTERS .COM...
Page 12 Relieve the short circuit and allow 5 minutes for the battery to reset. • Battery should return to normal operation after reset. • If the battery does not reset and return to normal operations, please contact PHAT customer service. ®...
Page 13: Battery Charging Protocol
Do not charge the scooter in a closed space or in extreme temperatures (less than -10 degrees or above 45 degrees Celsius). WARNING: If you detect any problems, including but not limited to abnormal signal light behavior, odors and/or overheating, please stop charging immediately and call PHAT customer service. WWW.PHATSCOOTERS .COM...
Page 14: How To Charge Battery
HOW TO CHARGE BATTERY: Step 1: Plug the charger into a properly wired 120VAC outlet with a minimum __ampere rating. A green LED light will display on the charger, which means the battery is ready to be charged. Step 2: Plug the charger into the charge port in the breastplate of the scooter.
Page 15 BATTERY OPERATION AND MAINTENANCE Please refer to the following for appropriate and inappropriate battery operation and expectations: • If the battery cannot be fully charged in 12 hours, please contact customer service. • To maximize battery life, keep the battery between 20-80% capacity.
Page 16: Safe Ride Guide & Checklist
SAFE RIDE GUIDE We want you to stay safe when riding your PHAT G3 scooter! Please perform the following preliminary safety checks before operating your scooter: • Steering – Inspect turns, looking for a good strong connection: tire turns as expected, no displacement or loosening.
Page 17: Scooter Features Guide
SCOOTER FEATURES GUIDE Getting Started LOCK: When the scooter is OFF, press the Lock button on the key fob to arm the alarm and lock the scooter. UNLOCK: When the scooter is OFF, press the Lock button on the key fob. This will activate the scooter for 15 seconds, during which time the scooter can be freely rolled and the push-to-start button becomes operable.
Page 18 SCOOTER FEATURES GUIDE (cont’d) REVERSE: Push the bottom button to toggle to the Reverse setting. To return to Forward drive, push the button again. HEADLIGHTS: The default setting for the headlights is a low beam that stays on while the scooter is in use.
Page 19: Battery Tray
BATTERY TRAY OPEN BATTERY TRAY: Step 1: Remove the security screw. Step 2: Remove the locking handle. Step 3: Pull the handle towards you. Step 4: Battery tray will drop down. Step 5: Fold out the trap door. CLOSE BATTERY TRAY: Step 1: Place the battery inside and ensure proper connections.
Page 20: Manufacturers Warranty
Scooter (whichever is earlier). To activate your warranty you must register your scooter at http://registration.phatscooters.com. Failure to register your scooter disqualifies the product from receiving warranty coverage. Regular maintenance is not included with your Phat Scooters purchase. ® These expenses are the customer’s responsibility. This includes tires, unless a defect exists.
Page 21: Scooter Storage
The advanced NMC battery in a is not made to survive in extremely PHAT Scooter ® cold weather and will degrade if stored in temperatures below 32 degrees.
Page 22: Maintenance
MAINTENANCE Regular Maintenance and Self-Inspection Checklist • Are the bolts of the front and rear wheel locked? • Is the thread of the tire worn? Are there any holes or leaks in the tires? • Ensure proper tire pressure on both tires (recommended front and rear tire pressure is maximum of 15 - 20 PSI, 12 PSI for knobby tires).
Page 23 MAINTENANCE (cont’d) Adjustment of Brake Spacing Please visit www.phatscooters.com email support@phatscooters.com for detailed instructions on adjusting your brakes. Breaking-In Period The breaking-in of the disc brake will take some time. After it is broken in, the braking force will be increased. During the breaking-in period, the brake should not be used with excessive force as it will cause permanent damage to the brake and brake pad.
Page 24 Inc. (“Seller”) and you, and by purchasing a ® Phat Scooter you accept and agree to be bound by this agreement. These terms and conditions will govern the sale notwithstanding any inconsistent terms in any other purchase order, invoice, contract, or other subsequent writings.
Page 25 Never use PHAT Scooter unless you can focus your entire ® attention on operating it in a safe manner. Do not operate Phat Scooter while talking or texting on a mobile phone or other electronic device. • No Towing PHAT Scooter is not intended to, and should never be used to, tow or pull ®...
Page 26 TERMS AND CONDITIONS (cont’d) Risk of Injury – Assumption of Risk Whenever you use PHAT Scooter, you risk death or serious injury from loss of control, ® collision and/or falls. Such risk exists even if it is used in complete compliance with its instructions and warnings.
Page 27 TROUBLESHOOTING MALFUNCTION POSSIBLE CAUSES TROUBLESHOOTING • Ensure the battery is fully charged. A green display on the charger means the battery is • Ineffective battery Scooter won’t start charged. • Scooter is locked • Ensure the unit is unlocked by pressing the lock button on the key fob.
Page 28 Except as otherwise expressly stated here, the Scooter is sold “as is” with no PHAT ® implied warranties whatsoever. This limited express warranty is in lieu of all other warranties, express or implied. Seller expressly disclaims all implied warranties of merchantability, non-infringement, and fitness for any particular use or purpose.
Page 29 IN-STORE RETURNS You can return items to PHAT® HQ’s Be sure to present the original packing list so the store associate can best assist you. Returns will be refunded to the original method of payment within 3 business days after initiating your return at the store.
Page 30 RETURN POLICY RECEIVED WRONG ITEM Sure, Phat® Scooters may be perfect. But we’re not. If we goofed and sent you the wrong order or 1-866-972-6687 item(s), let us know and we’ll get it fixed in a flash. Give us a call between 8am-5pm MST, Monday through Friday, or head over to your Selling Dealer.
Page 31 PHAT SCOOTERS APP ® IS NOW AVAILABLE! DOWNLOAD TODAY The PHAT Scooters App, created ® exclusively for PHAT Scooters owners, ® features community meet up information, special offers and more. WWW.PHATSCOOTERS .COM...
