Operating Manual

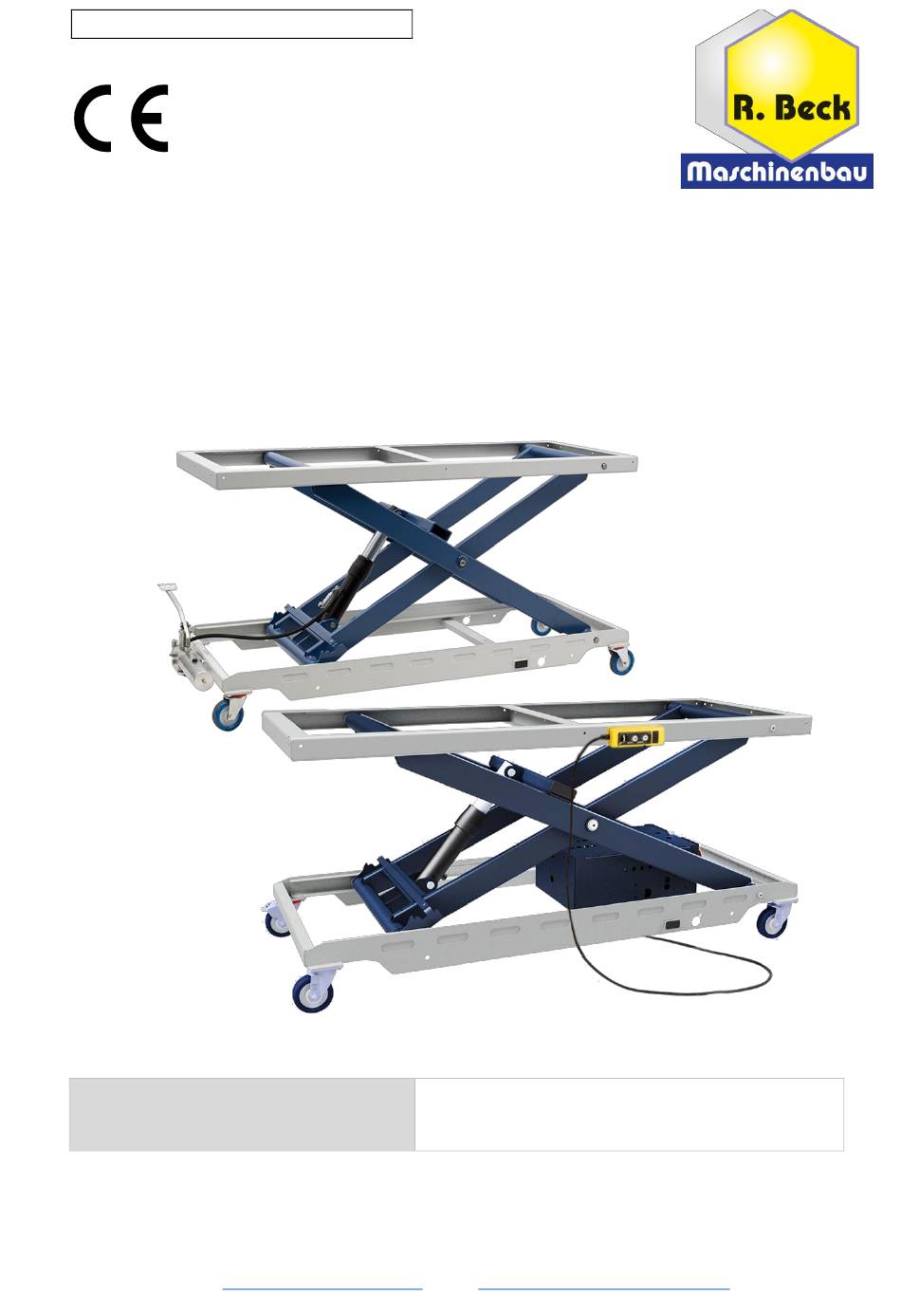

Foot-hydraulic and battery-hydraulic adjustable Scissor Lift Tables
Types HS 600 | FH and HS 600 | AH
HS 600 | FH and HS 600 | AH
Valid for types:
Reinhold Beck Maschinenbau GmbH
Im Grund 23 | DE -72505 Krauchenwies
Tel.: +49 (0) 7576 / 962 978 - 0 | Fax: +49 (0) 7576 / 962 978 - 90
E-Mail:
info@beck-maschinenbau.de
| Web:
https://www.beck-maschinenbau.de
Advertisement
Table of Contents
Related Manuals for R. Beck Maschinenbau HS 600
Summary of Contents for R. Beck Maschinenbau HS 600
- Page 1 TRANSLATION OF THE ORIGINAL VERSION Operating Manual Foot-hydraulic and battery-hydraulic adjustable Scissor Lift Tables Types HS 600 | FH and HS 600 | AH HS 600 | FH and HS 600 | AH Valid for types: Reinhold Beck Maschinenbau GmbH Im Grund 23 | DE -72505 Krauchenwies Tel.: +49 (0) 7576 / 962 978 - 0 | Fax: +49 (0) 7576 / 962 978 - 90...
-
Page 2: Table Of Contents
Lashing on a Transport Vehicle ..............................15 Components and Controls ............................. 16 Model HS 600 | FH ..................................16 Model HS 600 | AH ..................................17 Installation and Commissioning ..........................18 Operation ................................18 Switch on Model HS 600 | AH ..............................18 BA_BM_HS-600_EN_45-21.docx... - Page 3 Figure 1: Permissible load with load distribution ........................9 Figure 2: Nameplate ................................. 13 Figure 3: Components and controls of HS 600 | FH ......................... 16 Figure 4: Components and controls of HS 600 | AH ......................... 17 Figure 5: Main switch ................................18 Figure 6: Height adjustment pedal ............................
-
Page 4: Introduction
1 Introduction The information in this operating manual enables safe, proper and economical operation of your lift table. Please observe all the explanations, notes and regulations • to avoid dangers and malfunctions, • to reduce repair costs and downtimes • and to increase reliability and service life of your lift table. -
Page 5: Symbols In Safety Instructions
Symbols in Safety Instructions The lift table is designed and manufactured according to the current state of the art. Nevertheless, residual haz- ards may occur during handling. In this operating manual, possible dangers and residual risks are pointed out at appropriate places. -
Page 6: General
If anything is unclear, please contact the manufacturer. The ergonomic HS 600 scissor lift table has a high load capacity of max. 600 kg. With its 1900 x 740 mm support frame, this model is equipped for large-area table tops. The solid construction of square profiles and its mobility thanks to four swivel castors make it an indispensable assistant for countless applications in industry and trade, e.g. -
Page 7: Accident Prevention
Accident Prevention To avoid accidents, the following rules must be observed for operation: Prevent unauthorized persons from gaining access to the lift table. Keep unauthorized persons away from the danger areas. Repeatedly inform present other persons about existing residual risks (see section 4.8 "Residual Risks"). Conduct and record regular training &... -
Page 8: Safety
4 Safety Basic Safety Instructions Lift tables can be dangerous if used improperly. Therefore, observe the safety instructions listed in this chapter and the accident prevention regulations of your employer's liability insurance association! The manufacturer accepts no liability for damage and malfunctions resulting from failure to observe these operating instructions. -
Page 9: Consequences In Case Of Disregard
Consequences in Case of Disregard If the lift table is not operated, maintained or repaired in accordance with the safety regulations, not as in- tended, improperly or in an abusive manner, the following will result: Dangers to the health of the operating personnel Dangers to the lift table and objects in its vicinity Impairment of the lift table function In case of improper use of the lift table, any warranty, liability and other claims for damages of the operator... -
Page 10: Hazardous Areas
Hazardous Areas Source Area Cause Risk Prevention Foot pump HS 600 | FH only: Slipping off the Injuries to feet Keep foot pedal foot pedal and legs and shoes dry On the foot pedal for height adjust- Wear work shoes... -
Page 11: Residual Risks
Residual Risks The lift table is built according to the latest state of the art and the recognised safety rules. Nevertheless, the use of the lift table may cause danger to life and limb of the user or third parties or damage to the lift table and other equipment. -
Page 12: Organisational Measures
Work on hydraulic equipment may only be carried out by authorised and trained personnel. Work on the electrical equipment of the lift table model HS 600 | AH may only be carried out by a quali- fied electrician or by instructed persons under the direction and supervision of a qualified electrician in accordance with the electrotechnical regulations. -
Page 13: Technical Specifications
Technical Specifications Lift Table Type HS 600 | FH HS 600 | AH Article number 193.100.00 193.100.00 + 200.350.00 Special feature foot-hydraulic height adjustment battery-hydraulic height adjustment Table top none (option) none (option) Support frame dimensions 1900 x 740 mm... -
Page 14: Transport To The Installation Site
• With the forks set appropriately, drive centrally into the designated places on the freight pallet on the longi- tudinal side of the lift table and lift carefully. • Carefully lift the HS 600 from the truck. The net weight is approx. 170 kg (FH) resp. approx. 215 kg (AH). Check delivery condition Check for completeness and transport damage. -
Page 15: Requirements For The Installation Site
Requirements for the Installation Site The following guidelines apply with regard to space requirements, load-bearing capacity and the condition of the substrate: • Space requirements: W x H x D = 1010 x 420 x 2010 mm (with optional table top) •... -
Page 16: Components And Controls
Components and Controls Model HS 600 | FH Figure 3: Components and controls of HS 600 | FH Pos. Description Pos. Description Foot pedal for height adjustment Support frame Swivel castor (4 pieces) Hydraulic cylinder Parking brake (2 pieces) Safety catches for maintenance... -
Page 17: Model Hs 600 | Ah
Model HS 600 | AH Figure 4: Components and controls of HS 600 | AH Pos. Description Pos. Description Push-button unit for height adjustment Hydraulic cylinder Swivel castor (4 pieces) Safety catches for maintenance Parking brake (2 pieces) Battery box... -
Page 18: Installation And Commissioning
Generally wear steel-toed safety shoes and suitable protective work clothing! Switch on Model HS 600 | AH Before working with the battery-hydraulic lift table "AH", ensure that a) the battery is in a charged state b) the main switch (10) is in the "ON"... -
Page 19: Lifting And Lowering The Platform
The height adjustment of the lift table is based on the scissor principle. The hydraulic power is transmitted to the hydraulic cylinder via the foot pump. 9.4.1 HS 600 | FH Before adjusting the height, first secure the lift table against rolling away with the two parking brakes. -
Page 20: Measures After Operation
Measures after Operation 10.1 General Measures Additional electrical components (e.g. machines lying on the lift table) must be switched off after finishing work and also disconnected from the mains by unplugging the power cable. Furthermore, the lift table must be se- cured against unauthorised use. -
Page 21: Troubleshooting
Lift table is overloaded Platform cannot be lifted up Hydraulic cylinder, foot pump → Contact customer service or mechanics defective Faults with Model HS 600 | AH Fault Possible Cause Remedy → Charge battery Battery empty The lift table cannot be →... -
Page 22: Maintenance And Repair
(see section 12.1). • Model HS 600 | AH: Turn off the main switch before carrying out any maintenance or repair work. WARNING! There is an acute risk of electric shock when opening the battery box even if the main switch is turned off! •... -
Page 23: Battery Charging Unit
The battery charger "MXS 5.0" integrated in the battery box is a commercially available, microprocessor-con- trolled charger from the manufacturer CTEK. The charging voltage for the lead gel battery installed in the HS 600 | AH is 14.4 volts. 13.1 CTEK MXS 5.0 - Operation Instructions BA_BM_HS-600_EN_45-21.docx... - Page 24 ➔ Select charging mode “14,4 V / 5 A” CAUTION! Charging voltages higher than 14.4 V can damage or destroy the battery! BA_BM_HS-600_EN_45-21.docx...
- Page 25 BA_BM_HS-600_EN_45-21.docx...
- Page 26 CHARGING PROGRAM BA_BM_HS-600_EN_45-21.docx...
- Page 27 BA_BM_HS-600_EN_45-21.docx...
- Page 28 BA_BM_HS-600_EN_45-21.docx...
-
Page 29: Decommissioning
Decommissioning • Before taking out of service, the platform of the lift table must be lowered completely. • For recommissioning, observe chapter 8 “Installation and commissioning“. • For the final scrapping of the lift table, please refer to chapter 15. Disassembly and Scrapping When dismantling and scrapping the lift table, the current EU regulations or the respective regulations and laws of the country of operation, which are prescribed for proper dismantling and disposal, must be observed. -
Page 30: Options And Accessories
WITH 3 DRAWERS Platform size = 2000 x 1000 x 160 mm | Table top thickness = 27 mm | Internal drawer dimensions 900 x 560 x 100 mm | Weight approx. 74 kg Further information, illustrations and pre-configured HS 600 models can be found in our catalogue. BA_BM_HS-600_EN_45-21.docx... -
Page 31: Tilting Devices
VERSION Weight approx. 6 kg LOCKING DEVICE Suitable for HS 600, by turning the lever the lift table is lifted approx. 10 WITH 4 ADJUSTABLE FEET mm and brought from the mobile to a static rest position. With 4 adjusta- 200.300.00 ble feet and hand lever for optimum stability. -
Page 32: Extension Systems For Models Without Vacuum
Weight approx. 26 kg PLATFORM EXTENSION As above, but double-sided version. LEFT + RIGHT, WITH 200.227.00 Weight approx. 53 kg METAL SHEET TABLE TOP Further information, illustrations and pre-configured HS 600 models can be found in our catalogue. BA_BM_HS-600_EN_45-21.docx... -
Page 33: Accessories For Wood Hole Grid Panels
16.6 Accessories for Wood Hole Grid Panels Article Description Art.-No. HORIZONTAL Clamping spigot with trapezoidal internal thread, threaded spindle and CLAMP thrust piece with protective cap. 200.607.22 Threaded spindle 40 mm adjustable | Weight approx. 1 kg VERTICAL RAIL CLAMP For vertical workpiece clamping. -
Page 34: Accessories For Metal Hole Grid Panel (Art.-No. 200.208.00)
360° | Weight approx. 1 kg Further information, illustrations and pre-configured HS 600 models can be found in our catalogue. Note: Can also be used on the 30 mm table top “Beech-Multiplex” (Art.-No. 200.200.00) without hole matrix. -
Page 35: Accessories For Steel Hole Grid Plate (Art.-No. 200.400.16 & 200.209.16)
8 x Universal stops 115L (Art.-No. 200.853.16) • 4 x Vertical clamp (Art.-No. 200.857.16) • 1 x Eccentric stop (Art.-No. 200.858.16) Weight approx. 15 kg Further information, illustrations and pre-configured HS 600 models can be found in our catalogue. BA_BM_HS-600_EN_45-21.docx... -
Page 36: Eu - Declaration Of Conformity
Phone: 0049 - 7576 962 978 0 Fax: 0049 - 7576 962 978 90 hereby declares that the manufactured machine Model: Lift Tables HS 600 | FH and HS 600 | AH Type designation: Lift Table Serial number(s): Year of manufacture:...
