Summary of Contents for BLAUBERG VUT 270 V5B EC

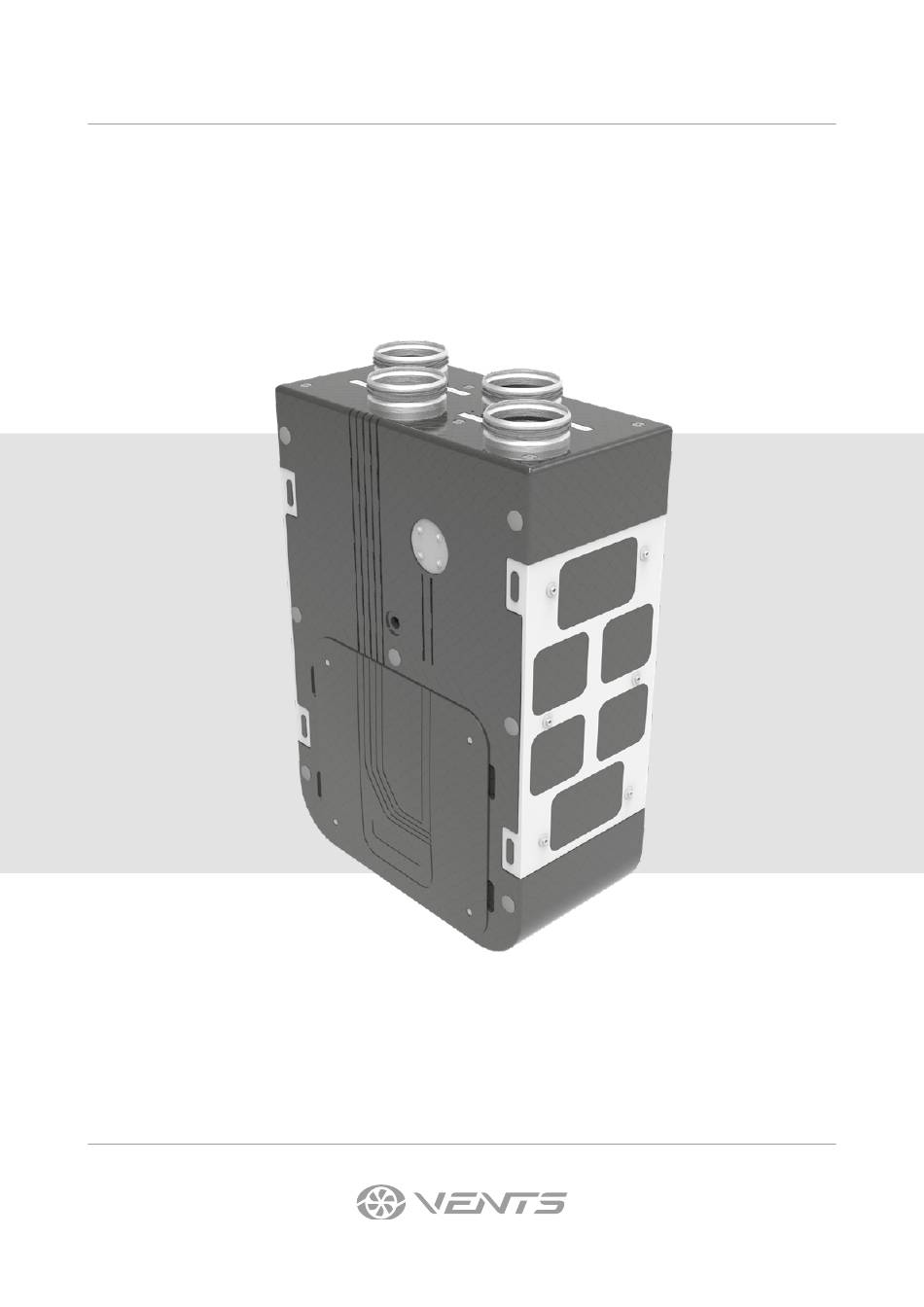

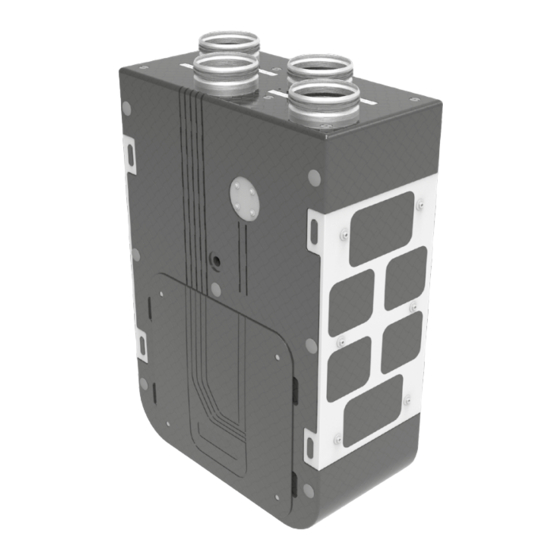

- Page 1 USER’S MANUAL VUT 270 V5B EC VUE 270 V5B EC VUT 270 V5 EC VUE 270 V5 EC Air handling unit...
-
Page 2: Table Of Contents
VUT/VUE 270 V5(B) EC CONTENTS Safety requirements ..................................3 Purpose ........................................ 5 Delivery set ......................................5 Designation key ....................................5 Technical data ....................................6 Design and operating principle ............................8 Installation and set-up................................10 Connection to power mains ..............................13 Technical maintenance ................................ - Page 3 All operations described in this manual must be performed by qualified personnel only, properly trained and qualified to install, make electrical connections and maintain ventilation units. Do not attempt to install the product, connect it to the mains, or perform maintenance yourself. This is unsafe and impossible without special knowledge.
-
Page 4: Purpose
VUT/VUE 270 V5(B) EC PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air. -
Page 5: Technical Data
TECHNICAL DATA The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 60 % without condensation. In cold, damp rooms, there is a possibility of freezing or condensation inside and outside the casing. In order to prevent condensation on the internal walls of the unit, it is necessary that the surface temperature of the casing is 2-3 °C above the dew point temperature of the transported air. - Page 6 VUT/VUE 270 V5(B) EC ØD ØD1 Dimensions [mm] Model Ø D Ø D1 — — — — — — VUT/VUE 270 V5(B) EC A2/A14 VUT/VUE 270 V5B EC A21 www.ventilation-system.com...
-
Page 7: Design And Operating Principle
DESIGN AND OPERATING PRINCIPLE The unit has the following operating logic: warm stale extract air from the room flows into the unit, where it is filtered by the extract filter, then air flows through the heat exchanger and is exhausted outside by the extract fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter. - Page 8 VUT/VUE 270 V5(B) EC UNIT OPERATION MODES Heat recovery Warm stale extract air from the room flows into the unit, where it is filtered by the exhaust filter, then air flows through the heat exchanger and is exhausted outside by the exhaust fan. Cold fresh air from the outside flows into the unit, where it is cleaned by the supply filter.
-
Page 9: Installation And Set-Up
INSTALLATION AND SET-UP READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT. BEFORE INSTALLING ADDITIONAL EXTERNAL DEVICES, READ THE RELEVANT USER MANUALS HV2 HUMIDITY SENSOR INSTALLATION AND CONNECTION (FOR UNITS WITH A14 AND A21 CONTROL) The HV2 humidity sensor is not included in the delivery set and is available as a specially ordered accessory. The humidity sensor must be installed prior to the unit mounting. - Page 10 VUT/VUE 270 V5(B) EC If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects. To prevent uncontrollable access to the fans, the spigots may be covered with a protecting grille or other protecting device with mesh width not more than 12.5 mm.
- Page 11 Control unit mounting for VUT/VUE 270 V5B EC A21 Fasteners (dowels, self-tapping screws) for the control unit mounting are not included in the delivery set, must be purchased separately. While choosing fasteners consider the material of the mounting surface. Fasteners for unit installation should be selected by a qualified technician.
- Page 12 VUT/VUE 270 V5(B) EC min 3° 1 - drain pipe; 2, 4 - drain hose; 3 - U-trap; 5 - sewage system; 6 - additional insulation. The condensate drainage system is designed for normal operation in premises with air temperatures above 0 °C! If the expected ambient air temperatures are below 0 °C, the condensate drainage system must be equipped with heat insulation and pre-heating facilities.
-
Page 13: Connection To Power Mains
CONNECTION TO POWER MAINS TURN OFF POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED AND WILL VOID THE WARRANTY. - Page 14 VUT/VUE 270 V5(B) EC EXTERNAL WIRING DIAGRAM FOR UNITS VUT/VUE 270 V5B EC A14 PK re alarm panel (remove the jumper while connecting the contact) Control panel Electric actuators of the external air dampers Humidity sensor - Tx Rx + supply exhaust External device NO...
- Page 15 WIRING DIAGRAM FOR CONNECTION OF THE EXTERNAL CONTROL UNIT TO VUT/VUE 270 V5B EC A21UNITS Tacho 0-10 V Tacho 0-10 V +24 V 0-10 V Electric shock hazard K1: Connection cable for M1, M2 motors and Y1,Y2 actuators. K2: Cable for connection of the control signals for M1, M2 motors and RH humidity sensor. K3: Connection cable for temperature sensors.
-
Page 16: Technical Maintenance
VUT/VUE 270 V5(B) EC TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS. FOLLOW THE SAFETY REGULATIONS WHEN CARRYING OUT MAINTENANCE. Maintenance operations of the unit are required 3-4 times per year. It includes general cleaning of the unit and the following operations: 2. -
Page 17: Troubleshooting
TROUBLESHOOTING TROUBLES AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected correctly, No power supply. otherwise troubleshoot the connection error. Turn the unit off. Troubleshoot the motor jam and the The motor is jammed, the impeller blades are soiled. The fan(s) does not start impeller clogging. -
Page 18: Manufacturer's Warranty
VUT/VUE 270 V5(B) EC MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC. -
Page 19: Certificate Of Acceptance
CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. - Page 20 V170-1EN-07...
