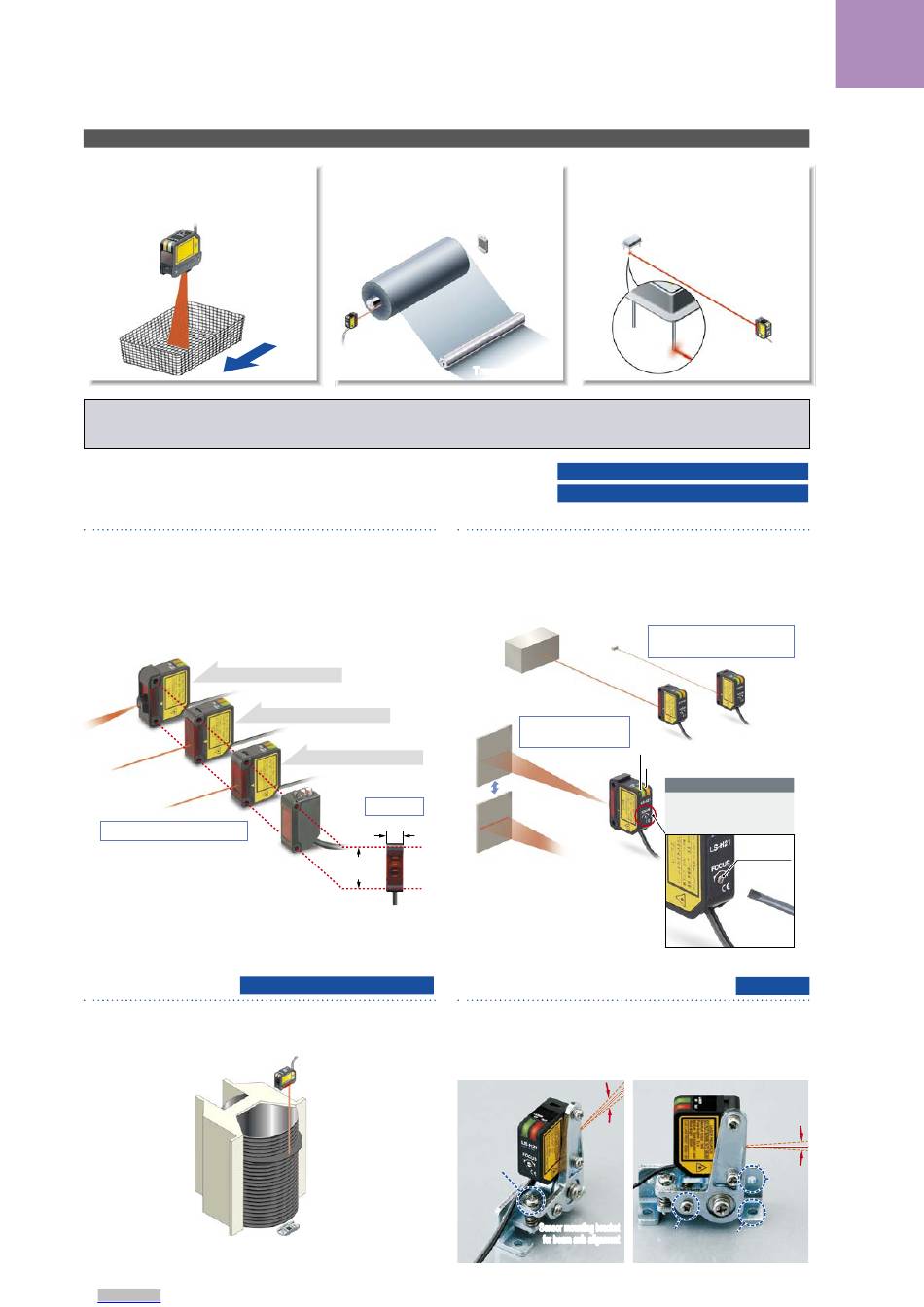

APPLICATIONS
Detecting objects with a complex shape
Its linear sensing area enables more
stable detection of objects with complex
shapes.
NOTE: The applications given in this catalog are examples for reference only. Stable sensing may not be possible under
certain setup conditions and environmental conditions, so be sure to check the actual sensor before use.
Industry standard mounting pitch
The mounting pitch for sensor heads is
25.4 mm 1.000 in, the same industry standard as the
CX-400 series Ver.2 general purpose photoelectric
sensors. Hence, existing mounting brackets can be used
even when replacing general purpose sensors with laser
sensors.
Identical shape and mounting
Line-up of FDA / IEC / JIS
Class 1 type
Visible light spot using the Class 1 type.
This makes beam axis alignment much easier.
Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from
Detecting the remaining amount of sheet rolls
The coaxial retroreflective sensor with a spot diameter
of approx. ø1 mm
distance), can measure amounts remaining on sheet rolls
with high precision.
LS-H22
Sheet rolls
LS-H91
Long sensing range line reflective type: LS-H22
Long sensing range spot reflective type: LS-H21(-A)
Coaxial retroreflective type: LS-H91(-A), LS-H92
General purpose photoelectric
sensor CX-400 series Ver.2
Slim size
11.2 mm
Industry standard
mounting pitch
25.4mm 1.000 in
LS-H91(F)-A, LS-H21(F)-A
ø0.039 in (at a 1 m 3.281 ft sensing
Reflector
Transparent films Transparent films
Long sensing range spot reflective type
Long sensing range line reflective type
Easy and accurate adjustments
A spot-size adjuster is built into the back of the sensor
head allowing the user to adjust the sensor easily while
viewing the spot. The adjuster is adjustable with a
screwdriver to avoid accidents during maintenance or
any other time the sensors are handled.
Easy adjustment while
viewing the spot.
0.441 in
Sensor mounting bracket for beam axis
alignment is available
It is possible to make a minor adjustment for the bracket
by 4 degrees up, down, right or left, even after setting
up the sensor. The bracket can be mounted in both
longitudinal and lateral directions.
4 degrees up and down
Vertical
adjustment
screw
Sensor mounting bracket Sensor mounting bracket
for beam axis alignment for beam axis alignment
MS-CX-11
LS-400
Digital Laser Sensor
Detecting electronic component pins
Because its spot shape can be adjusted in accordance
with the object, it can be easily set to detect even the
minutest object from a remote location.
LS-H21
The spot shape can be adjusted
according to the object.
Laser emission indicator
Operation indicator
Spot-shape adjuster
Highly reliable built-in multiple
turn-type knob allows you to
adjust the spot shape easily.
Spot-shape adjuster
(multiple turn)
MS-CX-11
4 degrees
right and left
Horizontal Hole for the foot
adjustment screw biangled mounting bracket
3
SERIES
Hole for the
foot angled
mounting
bracket
