For Serial No. 7 F 1000 and Higher
Models:
52200 — 25,000 RPM, 1/4" Collet
52202 — 30,000 RPM, 1/4" Collet
52230 — 25,000 RPM, 6 mm Collet
52232 — 30,000 RPM, 6 mm Collet
WARNING
!

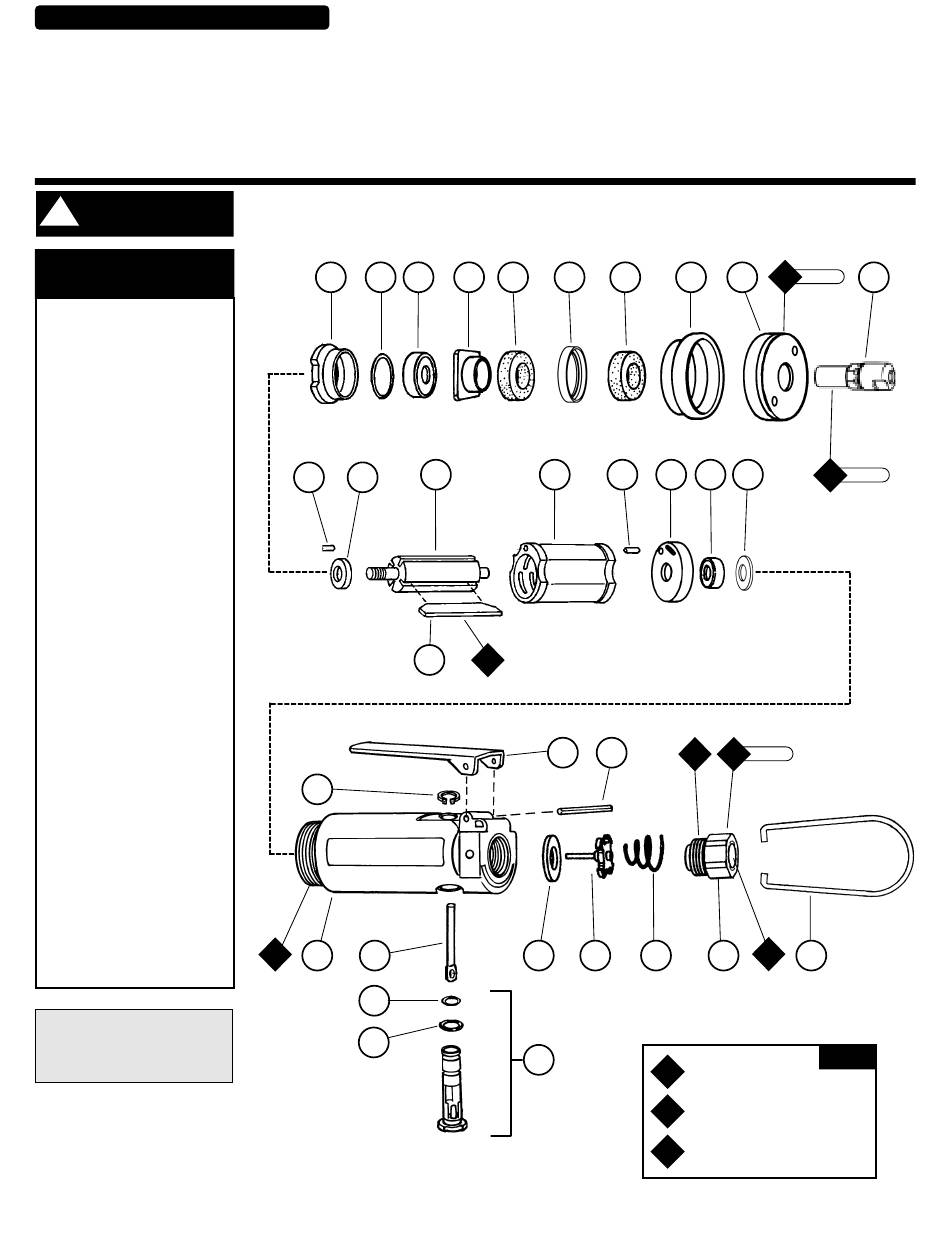

Index Key
No. Part # Description
1 Collet Assembly
"
50080 1/4
50079 6mm
2 01498 Exhaust Cover
3 01547 Rubber Collar
4 01486 Muffler Insert
25,000 RPM (Qty. 4)
30,000 RPM (Qty. 2)
5 01482 Baffle
6 Air Control Ring
01471 25,000 RPM
01481 30,000 RPM
7 02649 Bearing
8 54529 Shim Pack (3/pkg)
9 01478 Front Bearing Plate
10 50767 Pin (2)
11 01479 Spacer
12 01475 Rotor
13 01480 Blades (4/pkg.)
14 01476 Cylinder
15 02673 Rear Bearing Plate
16 02696 Bearing
17 02679 Shield
18 01463 Housing
19 95558 Retaining Ring
20 01448 Throttle Lever
21 12132 Pin
22 01449 Valve Stem
23 95730 O-Ring
24 01024 O-Ring
25 01469 Speed Reg. Assy.
26 01464 Seal
27 01472 Tip Valve
28 01468 Spring
29 01494 Inlet Adapter
30 50033 Hanger
Please indicate:
Model #, Serial #, and RPM when
ordering replacement parts.
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable
air tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
'
Dynabrade
s Warning/Safety Operating Instructions for more complete safety information.
9
8
7
10
11
13
19
A
18
22
8
23
24
*Optional 01462 Safety-Lock Lever available.
See inside for Important Operating, Maintenance and Safety Instructions.
.4 Hp/Front Exhaust
6
4
5
12
14
O
1
20*
21
26
27
25
Parts Page Reorder No. PD01•38
Effective April, 2001
Supersedes PD97•19
Die Grinder
Air Motor and Machine Parts
4
3
2
T
10
15
16
17
A
T
23 N•m
8
O
28
29
1
O
Oil: O
= Air Lube
1
A
Adhesive: A
= Loctite #567
8
Torque: N•m x 8.85 = In. - lbs.
T
1
17 N•m
T
17 N•m
30
KEY
Advertisement
Table of Contents
Related Manuals for Dynabrade 52200
Summary of Contents for Dynabrade 52200
- Page 1 For Serial No. 7 F 1000 and Higher Effective April, 2001 Supersedes PD97•19 Models: .4 Hp/Front Exhaust 52200 — 25,000 RPM, 1/4" Collet Die Grinder 52202 — 30,000 RPM, 1/4" Collet 52230 — 25,000 RPM, 6 mm Collet 52232 — 30,000 RPM, 6 mm Collet...
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade rotary vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 10 SCFM (example: if the tool specification states 40 SCFM, set the drip rate of your filter-lubricator at 4 drops per minute).
- Page 3 6. Check clearance between rotor and bearing plate by using a .001" feeler gauge. Clearance should be at .001" to .0015". Adjust clearance by repeating steps 1-5 with different shim if necessary. 7. Once proper rotor/gap clearance is achieved, install well lubricated 01480 Blades (4) into rotor slots. Dynabrade Air Lube P/N 95842 is recommended for lubrication.
- Page 4 Visit Our Web Site: www.Dynabrade.com Email: Customer.Service@Dynabrade.com DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524 DYNABRADE EUROPE S.àr.l., Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1 ©...
