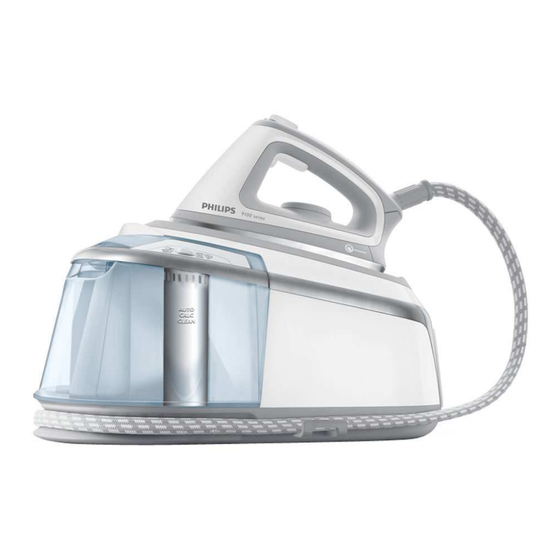

Philips GC9140 Service Manual

Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION
Iron
- SteamGlide soleplate
- Steam rate max. 100 g/min
- Steam boost max. 200 g/min
- 2 dot heat up time < 75 sec
Stand
- Rotary power on knob
- Inox boiler pressure max. 5 bar
- Time to steam < 2 min
- 3 level steam selection
- Auto calc clean feature
- Auto shut off
- Hose cord storage
- Auto cord winder
- Hose cord length 1.9 m
- Power cord length 1.8 m
- Detachable iron resting mat
- Iron carry lock
- Water tank empty light
- Detachable water tank capacity 1.5 L
- ECO steam setting
EMF & Service Information
- This product meets the requirements regarding
interference suppression on radio & TV.
- After the product has been repaired, it should function
properly & has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Consumer Lifestyle
11/01
TECHNICAL INFORMATION
Voltage
Frequency
Power
Dimension
Weight
SteamGlide soleplate
This specially treated soleplate is designed with 2 distinctly
different types of steam vents:
- Large vents for maximum crease removal
- Fine vents for best glide
Auto calc clean
Over time, scales build up inside the boiler. The appliance
performs an automatic calc clean process to clean itself from
scale. Refer DFU for operation details.
Auto shut off
If the iron is not used for >10 minutes, the appliance
automatically switches off for safety reasons. The auto shut
off light fl ashes. To switch on the appliance again, press any
button.
Detachable iron resting mat
This is a heat resistant mat that can be detached from the tray.
It allows you to place your iron horizontally on the ironing
board.
Iron carry lock
Iron can be locked to the stand via a carry lock slide. This
allows you to carry the whole appliance by the handle of the
iron.
Printed in the Netherlands
Steam Case System Iron
: 220 - 240 V
: 50 - 60 Hz
- Iron : 800 W
- Boiler : 1200 W
: 513 mm x 281 mm x 384 mm
: 6.5 kg
© Copyright reserved
GC9140
Subject to modification
