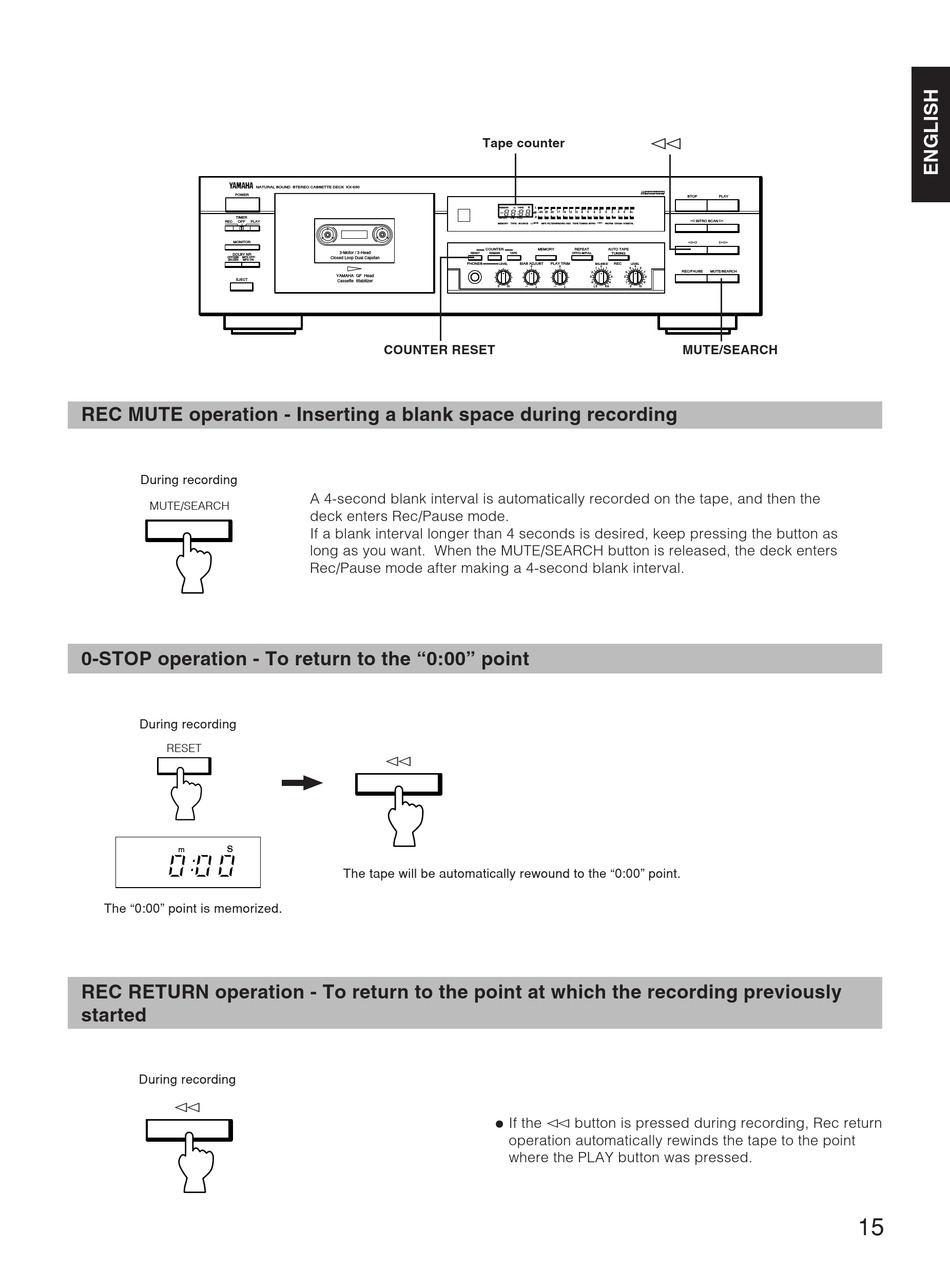

REC MUTE operation - Inserting a blank space during recording
During recording
MUTE/SEARCH
0-STOP operation - To return to the "0:00" point
During recording
RESET
S
m
The "0:00" point is memorized.
REC RETURN operation - To return to the point at which the recording previously
started
During recording
!
3-Motor / 3-Head
RESET
Closed Loop Dual Capstan
PHONES
YAMAHA GF Head
Cassette Stabilizer
COUNTER RESET
A 4-second blank interval is automatically recorded on the tape, and then the
deck enters Rec/Pause mode.
If a blank interval longer than 4 seconds is desired, keep pressing the button as
long as you want. When the MUTE/SEARCH button is released, the deck enters
Rec/Pause mode after making a 4-second blank interval.
!
3
The tape will be automatically rewound to the "0:00" point.
!
Tape counter
DOLBY B·C·S NR HX PRO
DOUBLE DOLBY SYSTEM
S
L
REMAIN
m
TAPE
dB –30 25 20
17 14
12 10
8
6
4
2
0
2
4
6
8+
R
REPEAT
0-M
FULL
MEMORY TAPE SOURCE
BCS
MPX FILTERSYNCHRO REC TAPE TUNING INTRO ¤‹ I/NORM II/HIGH IV/METAL
COUNTER
MEMORY
REPEAT
AUTO TAPE
TUNING
REMAIN
TAPE
OFF/O–M/FULL
BIAS ADJUST
PLAY TRIM
REC
LEVEL
BALANCE
LEVEL
0
0
0
5
1
1
4
6
2
2
3
7
3
3
2
8
4
4
1
9
0
10
+
+
L
5
5 R
0
10
÷ If the ! button is pressed during recording, Rec return
operation automatically rewinds the tape to the point
where the PLAY button was pressed.
STOP
PLAY
¤ INTRO SCAN ‹
¤¤
‹‹
REC/PAUSE
MUTE/SEARCH
MUTE/SEARCH
15
